MÄDLERMÄDLER· Linear Motion, Linear Bearings, Precision Rail Guides

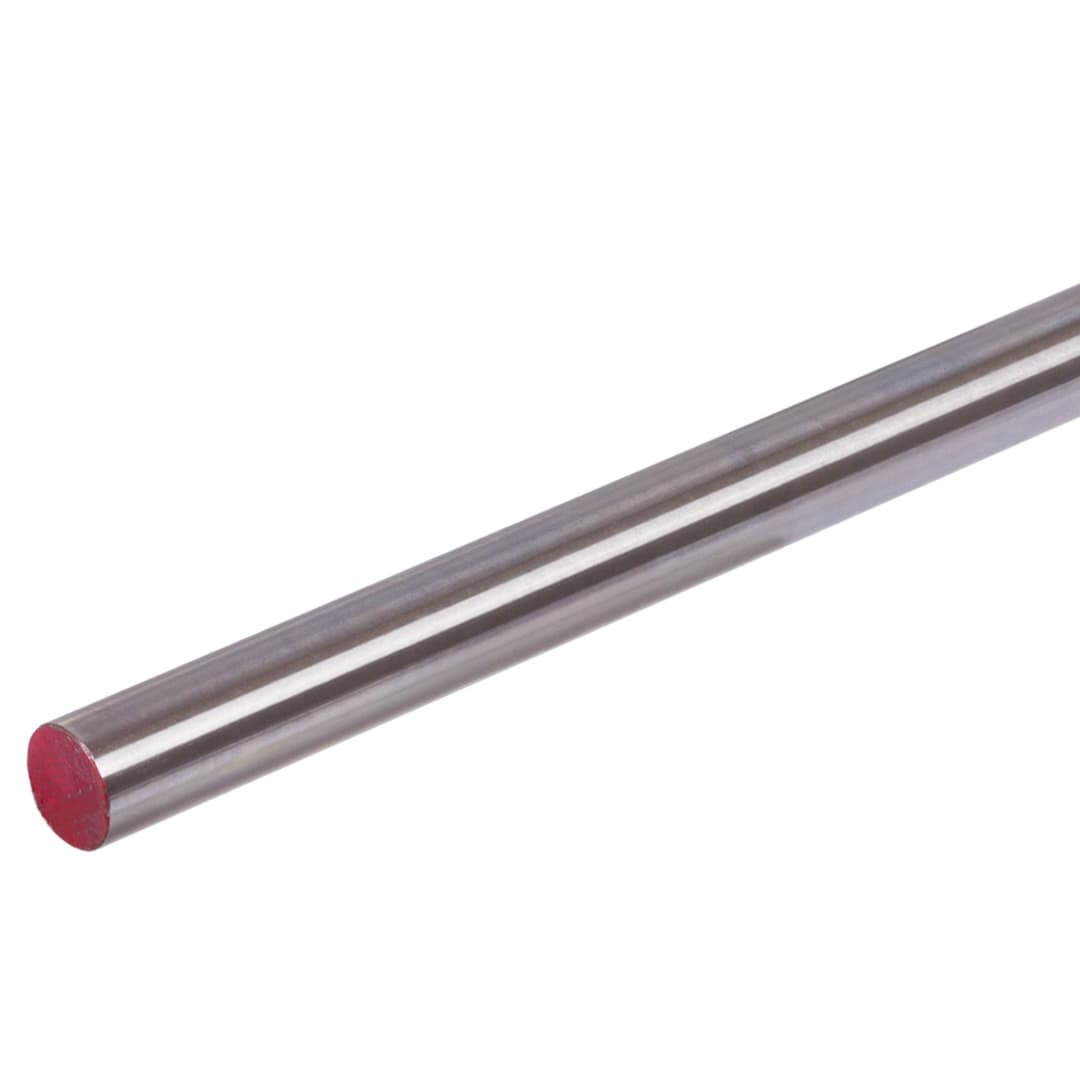

Precision shaft steel X46 stainless hardened min. 52 HRC and ground diameter 30h6 x 2000mm long cutting surface marked with red paint
Manufacturer part no. 64799330
$770.06≈ 668.75 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €668.75 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €136.75 |
| Total delivered | €820.50 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 11.098 kg |
Other characteristics
| Depth of hardness min. | 0.9 mm |
| Length | 2 000 mm |
| Shaft diameter | 30 mm |
| Material | Stainless steel (420) |
| Surface | Ground finish |
Description
Material: Stainless steel 1.4043 (X46Cr13), min. 52 HRC. Diameter tolerance: ISO h6. Dimension-stable up to +120°C. In lengths of 1 m and 2 m available ex stock. Fixed lengths can be delivered on request.
