MÄDLERMÄDLER· Splined Shafts and Toothed Shafts and Hubs

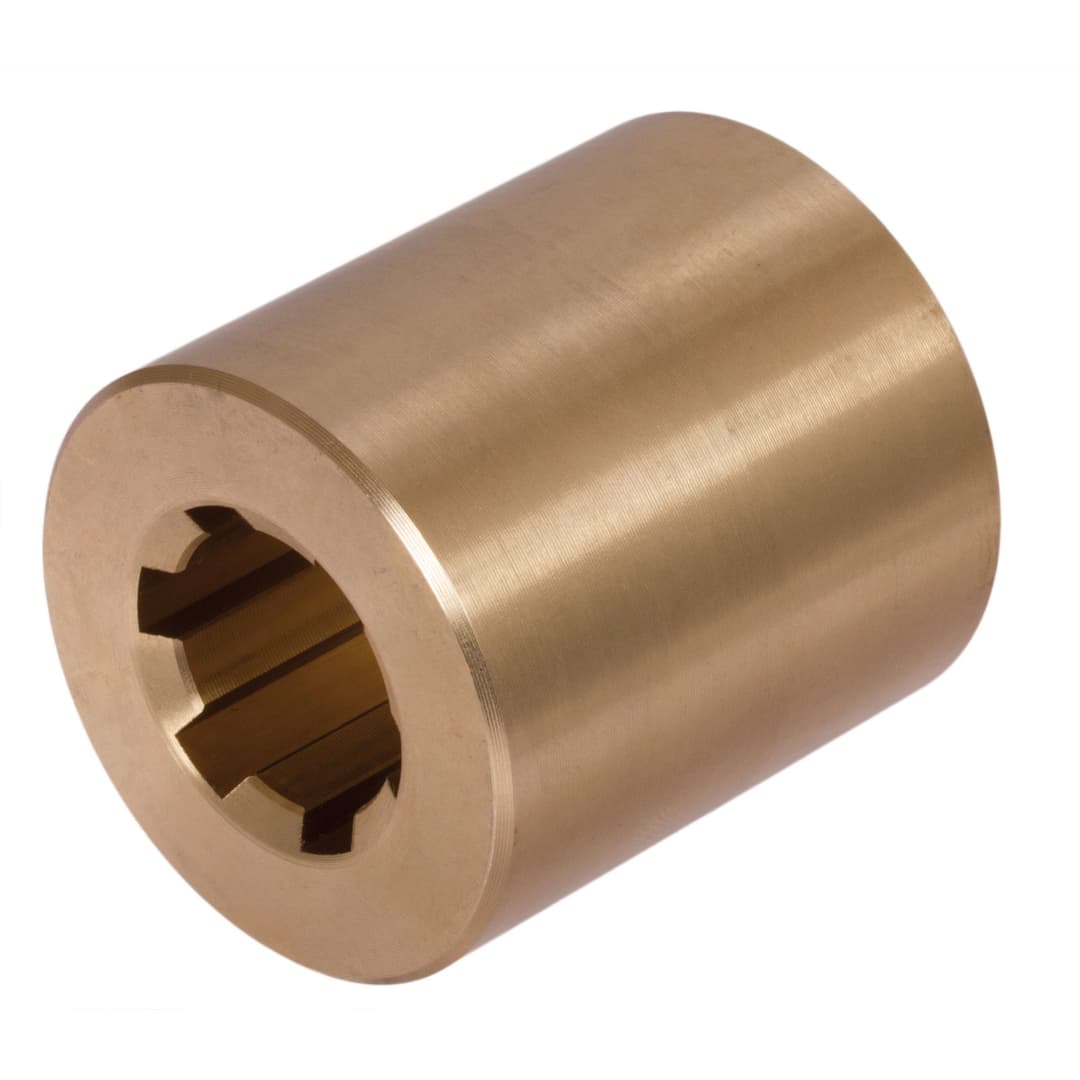

Splined hub DIN ISO 14 KN 11×14 length 40mm diameter 20mm red brass Rg7
Manufacturer part no. 64835200
$35.66≈ 30.97 €
In stock — 14 unitslead time 14 d
Estimated landed cost
| Item | €30.97 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.19 |
| Total delivered | €55.16 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

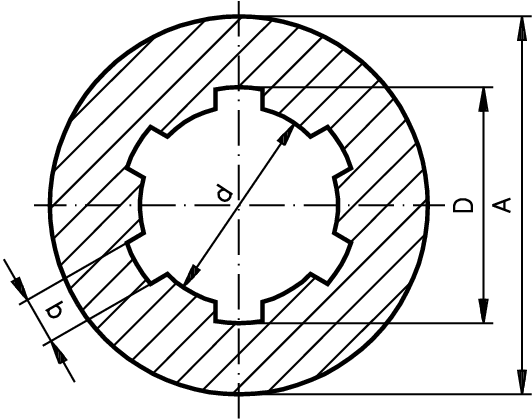

Specifications (automatically extracted)
Mechanical
| Weight | 80 g |
Other characteristics
| Foot circle diameter | 14 mm |
| Inner diameter | 11 mm |
| Length | 40 mm |
| No of splines | 6 |
| Outer diameter | 20 mm |
| Spline width | 3 mm |
| Material | Red brass (RG7) |
| Profile type | KN 11 x 14 mm |
| Surface | Blank |
Description
Material: Red Brass (CuSn7Zn4Pb7-C). A/d up to size 18 x 22 = 0,15 mm, above 0,2 mm
