MÄDLERMÄDLER· Splined Shafts and Toothed Shafts and Hubs

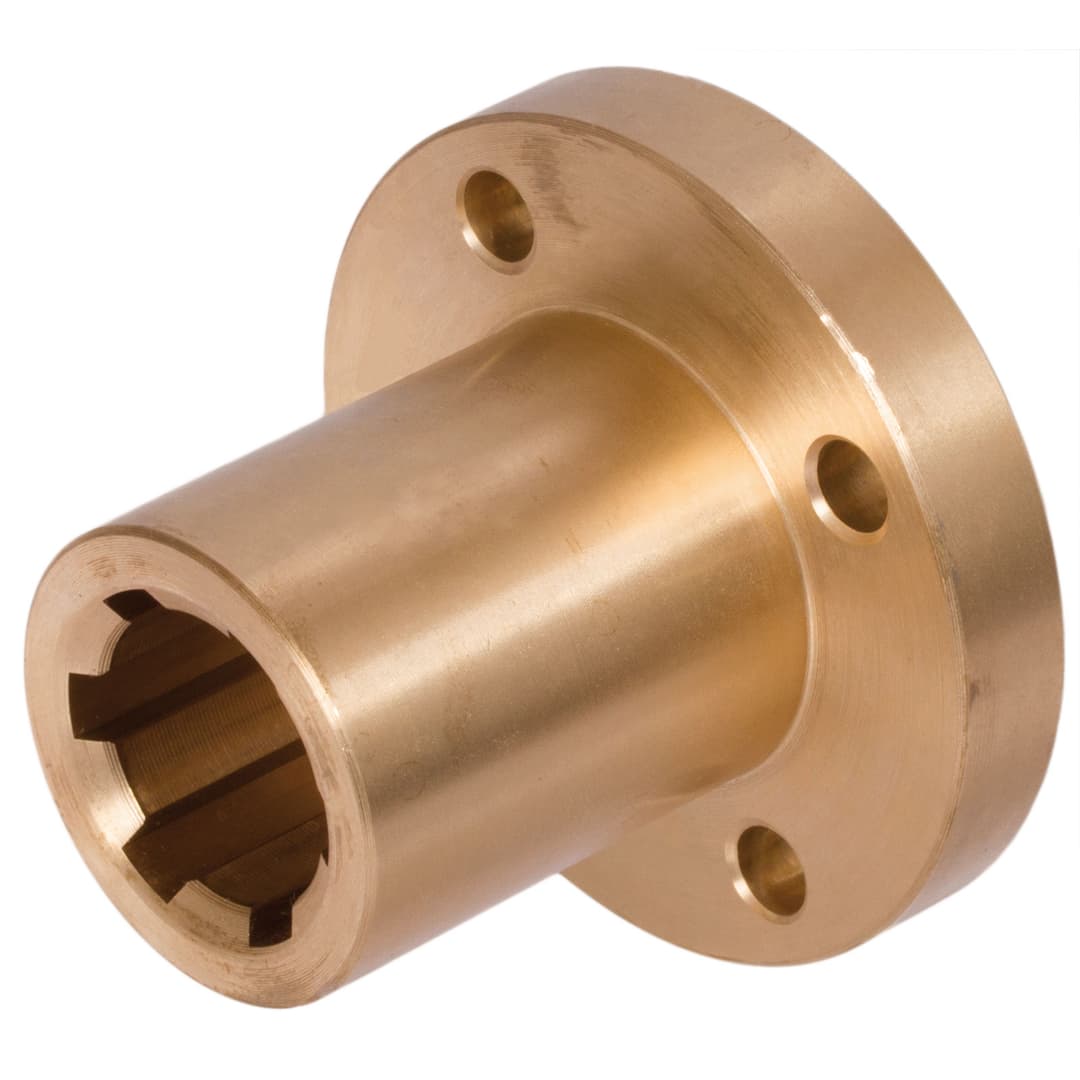

Splined hub with flange DIN ISO 14 KN 18×22 length 45mm red brass Rg7
Manufacturer part no. 64855100
$142.37≈ 123.64 €
In stock — 3 unitslead time 14 d
Estimated landed cost
| Item | €123.64 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €27.73 |
| Total delivered | €166.37 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 300 g |
Other characteristics

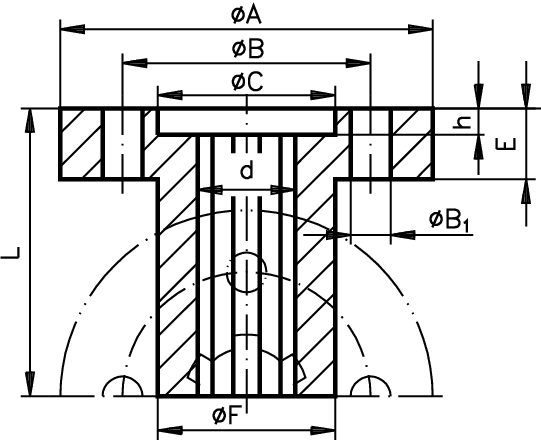

| Flange diameter a din iso 2768 m | 54 mm |
| Inner diameter | 18 mm |
| Outer diameter | 30 mm |
| Total length l din iso 2768 | 45 mm |
| Material | Red brass (RG7) |
| Profile type | KN 18 x 22 mm |
| Surface | Blank |
Description
Material: Red brass Rg7 (CuSn7Zn4Pb7-C). Ready-to-install, with 4 mounting holes, match with clamp collars for splie hubs. F/d and C/d = 0.05mm.
