MÄDLERMÄDLER· Splined Shafts and Toothed Shafts and Hubs
clamp collar single split aluminium with profile DIN ISO 14 KN 18×22
Manufacturer part no. 64862100
$42.56≈ 36.96 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €36.96 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.39 |
| Total delivered | €62.35 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

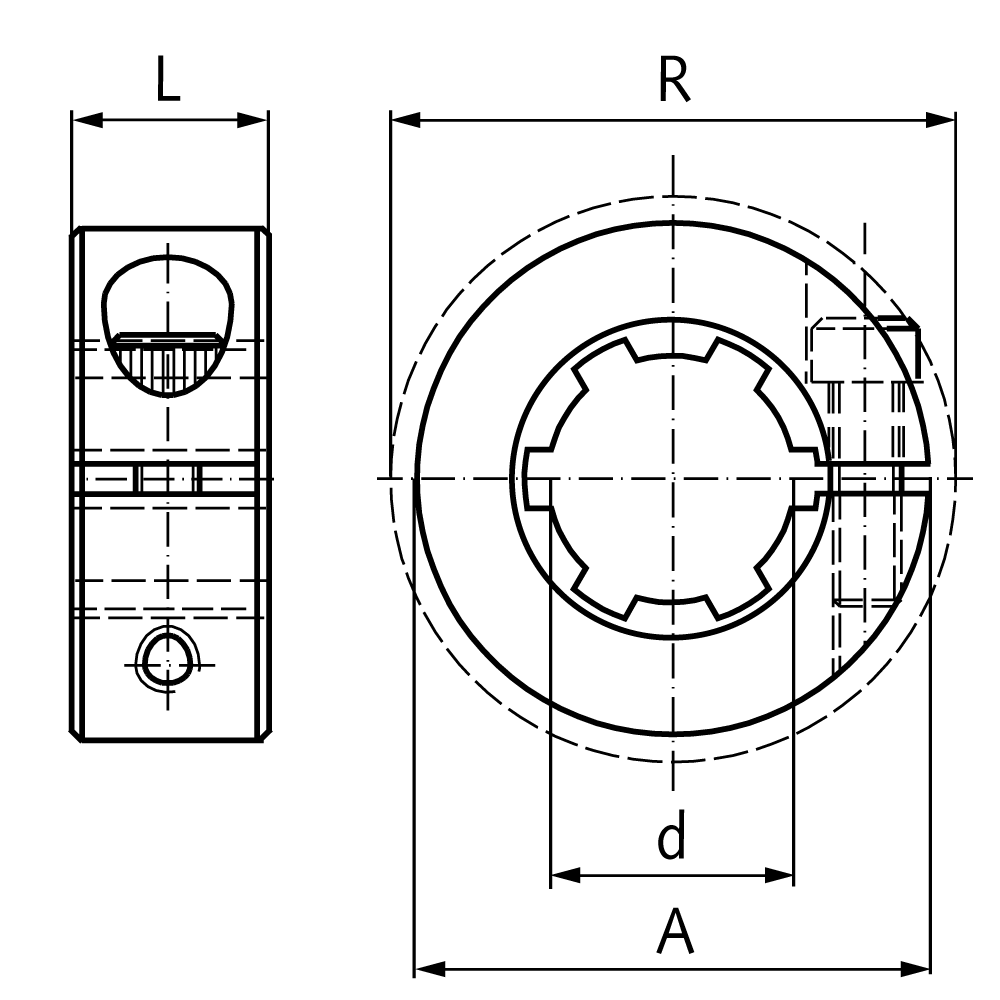

Specifications (automatically extracted)
Mechanical
| Weight | 43 g |
Other characteristics
| Inner diameter | 18 mm |
| Length | 15 mm |
| Outer diameter | 42 mm |
| Version | 1 |
| Material | Aluminum |
| Profile type | KN 18 x 22 mm |
| Screw din 912 | M 6 x 16 |
| Surface | Blank |
Description

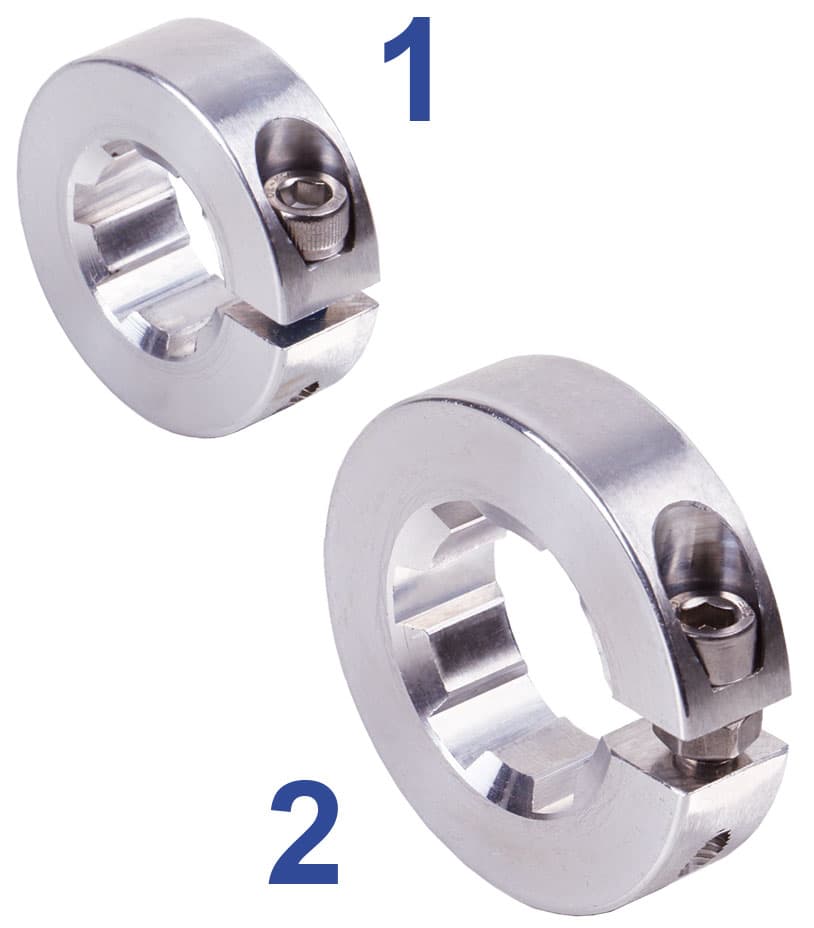

Material: Aluminium. Screw stainless steel A2-70. Single-split clamp collars, as end-stops on spline shafts. These rings don´t damage the shaft. The clamping force is much stronger than with set collars. They are easy to readjust. Version 1: The thread of the screw DIN 912 is covered with a layer of nylon. Version 2: with additional nut, for adjusting the inner diameter and as lock nut. Tolerance b: +0.08mm / -0.25mm . Temperature range: -40°C to +175°C.
