MÄDLERMÄDLER· Splined Shafts and Toothed Shafts and Hubs

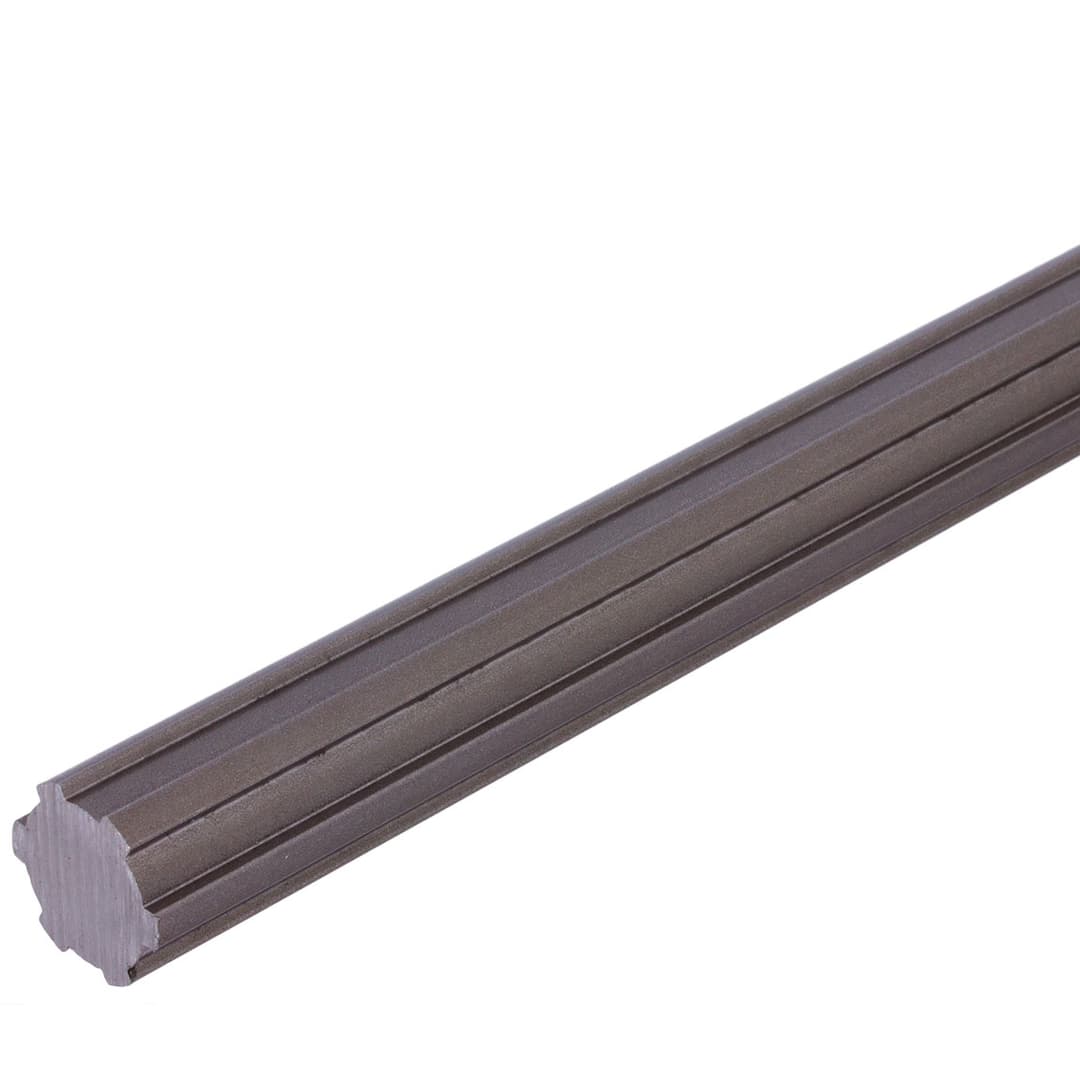

Splined shaft similar to DIN ISO 14 profile KW 42×48 x 2000mm long steel 42CrMo4
Manufacturer part no. 64886000
$664.06≈ 576.69 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €576.69 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €118.34 |
| Total delivered | €710.03 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 24.742 kg |
| Dimensions | 42×48x2000mm |
Other characteristics
| Foot circle diameter d 0 03 0 08 | 42 mm |
| No of splines | 8 |
| Outer diameter d 0 07 0 27 | 48 mm |
| Spline width | 8 mm |
| Material | Steel (4140) |
| Profile type | KW 42 x 48 mm |
| Surface | Blank |
Description
Material: Steel 42CrMo4, cold drawn. Lengths in stock: 1000, 1500, 2000 and 3000 mm. Special lengths up to 6000 mm on request (some in stock). Tolerances: Straightness 0.8 mm/m, torsion max. 0.5 mm/m. A straightness of 0.1 mm/m can be produced on request.
