MÄDLERMÄDLER· Sprockets, Chains, Accessories

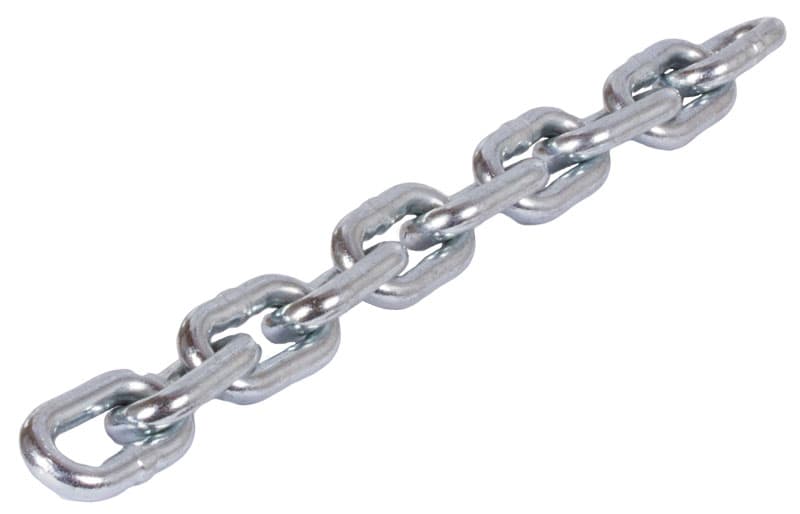

Round-link steel chain DIN 766A quality class 3 diameter 5 mm glavanic zinc-plated
Manufacturer part no. 77010500
$13.40≈ 11.64 €
In stock — 28 unitslead time 14 d
Estimated landed cost
| Item | €11.64 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.33 |
| Total delivered | €31.97 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Current | 766 A |
Other characteristics
| Diameter | 5 mm |
| Inner distance | 18.5 mm |
| Minimum breaking load | 12 000 N |
| Operating load | 3 200 N |
| Width | 17 mm |
| Material | Steel |
| Nominal size | 5 x 18.5 mm |
| Surface | Zinc-plated |
| Weight | 0.50 kg/m |
Description
Material: High-quality steel in accordance with DIN 17115, zinc-plated. Short links, true to gauge, certified. Quality class 3. Stock lengths available, max 50 m. ** This dimension isn’t part of DIN 766:2015-06. 1 Unit = 1 Meter = 39.37 Inches
