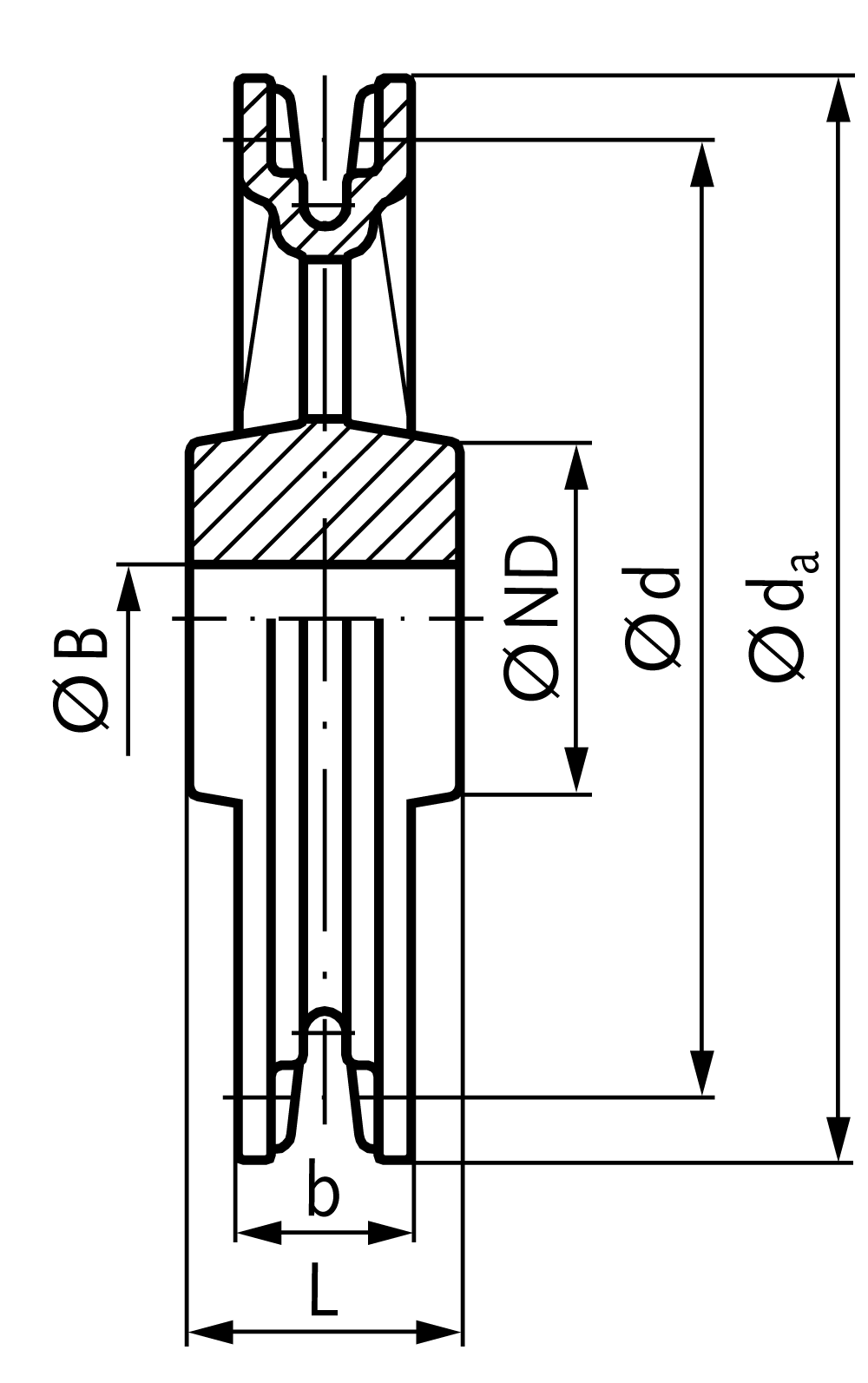

Chain wheel , 18 teeth made of cast iron 20 DIN 766 outer diameter 305mm, for diameter 8 mm
Manufacturer part no. 77141800
$399.96≈ 347.34 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €347.34 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €72.47 |
| Total delivered | €434.81 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 12 kg |
Other characteristics
| Bore approx | 20 mm |
| Hub diameter | 90 mm |
| No of teeth | 18 |
| Outer diameter | 305 mm |
| Pitch circle diameter | 275 mm |
| Total length | 70 mm |
| Wheel width | 46 mm |
| Material | Grey cast iron (A48) |
| Surface | Blank |
Description
Material: grey cast iron GG25. Hub unfinished and without bore, some with core hole. Matching chains in accordance with DIN 766 A. All dimensions and weights "ca.".
