MÄDLERMÄDLER· Sprockets, Chains, Accessories

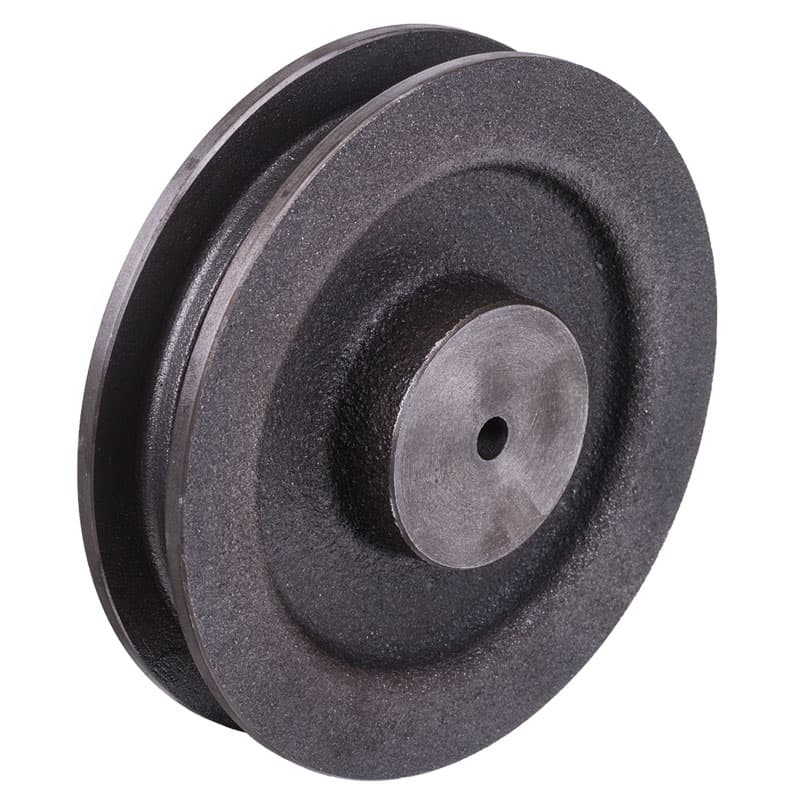

Chain wheel for round link steel chains made of cast iron 20 DIN 766 outer diameter 95 mm for diameter 5/6 mm
Manufacturer part no. 77050600
$66.40≈ 57.66 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €57.66 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €14.53 |
| Total delivered | €87.19 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.2 kg |
Other characteristics

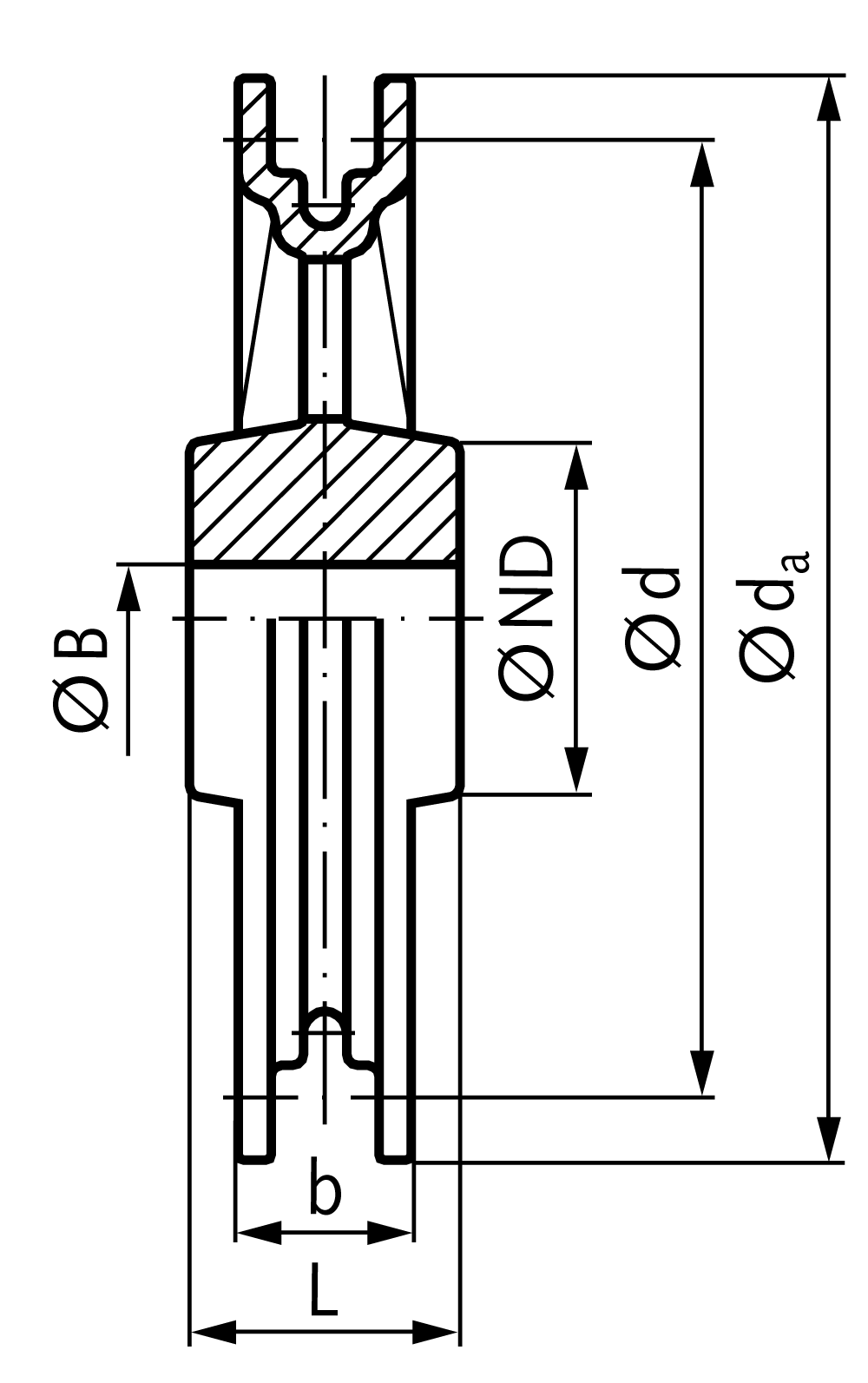

| Bore approx | 8 mm |
| Hub diameter | 50 mm |
| Outer diameter | 95 mm |
| Pitch circle diameter | 71 mm |
| Total length | 50 mm |
| Wheel width | 32 mm |
| Material | Grey cast iron (A48) |
| Surface | Blank |
Description
Material: grey cast iron GG25. Hub unfinished and without bore, some with core hole. Matching chains in accordance with DIN 766 A. All dimensions and weights ca.
