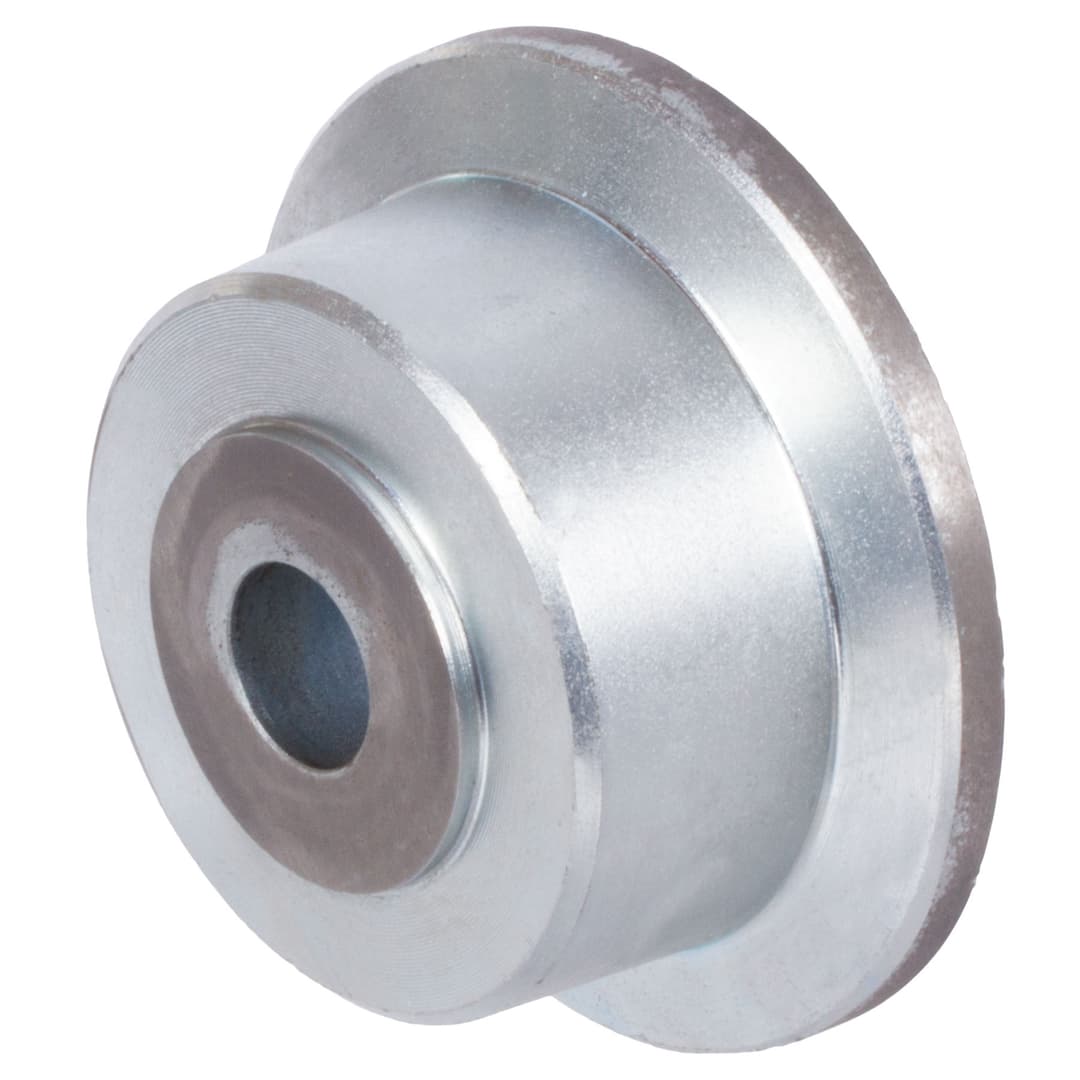

Crane wheel 712 AV made of cast iron GG20 zinc-plated with single sided flange diameter without flange 75mm plain bearing type
Manufacturer part no. 77500700
$45.24≈ 39.29 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €39.29 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.86 |
| Total delivered | €65.15 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.3 kg |
Other characteristics
| Hub diameter | 40 mm |
| Hub length symmetric | 47 mm |
| Max wheel load | 800 kg |
| Running surface | 30 mm |
| Wheel diameter with flange | 100 mm |
| Wheel diameter without flange | 75 mm |
| Wheel width with flange | 40 mm |
| Bore diameter | 20+0.2 mm |
| Material | Grey cast iron (A48) |
| Surface | Zinc-plated |
Description
Material: Cast iron GG25, zinc-plated. Version with Plain Bearing, without bush. Flange and running surface precisely turned, running surface inclined at 3° towards the axle. Temperature range: -30°C to +180°C.
