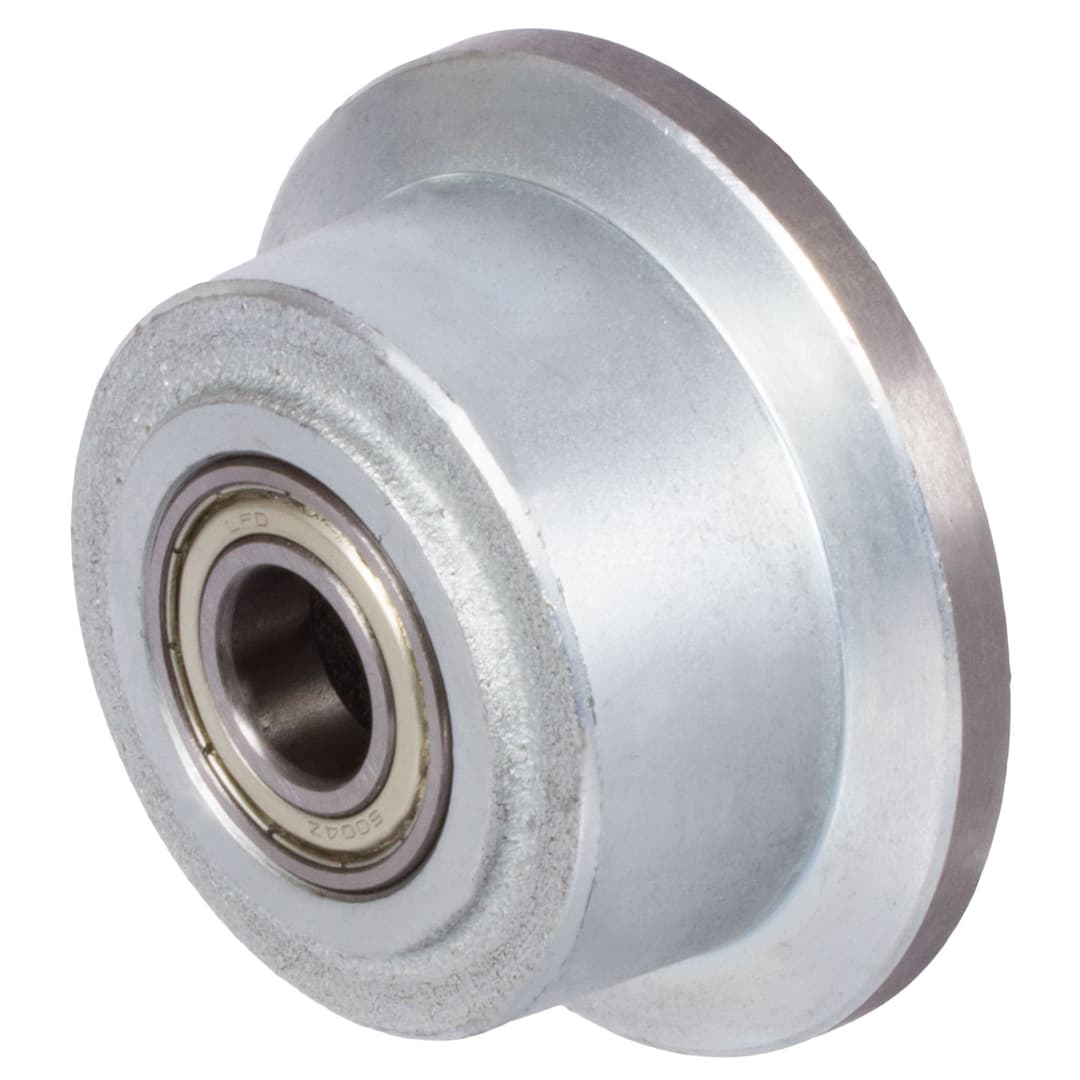

Crane wheel 712 AV made of cast iron GG20 zinc-plated with single sided flange diameter without flange 150mm with ball bearing
Manufacturer part no. 77521500
$127.81≈ 110.99 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €110.99 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €25.20 |
| Total delivered | €151.19 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

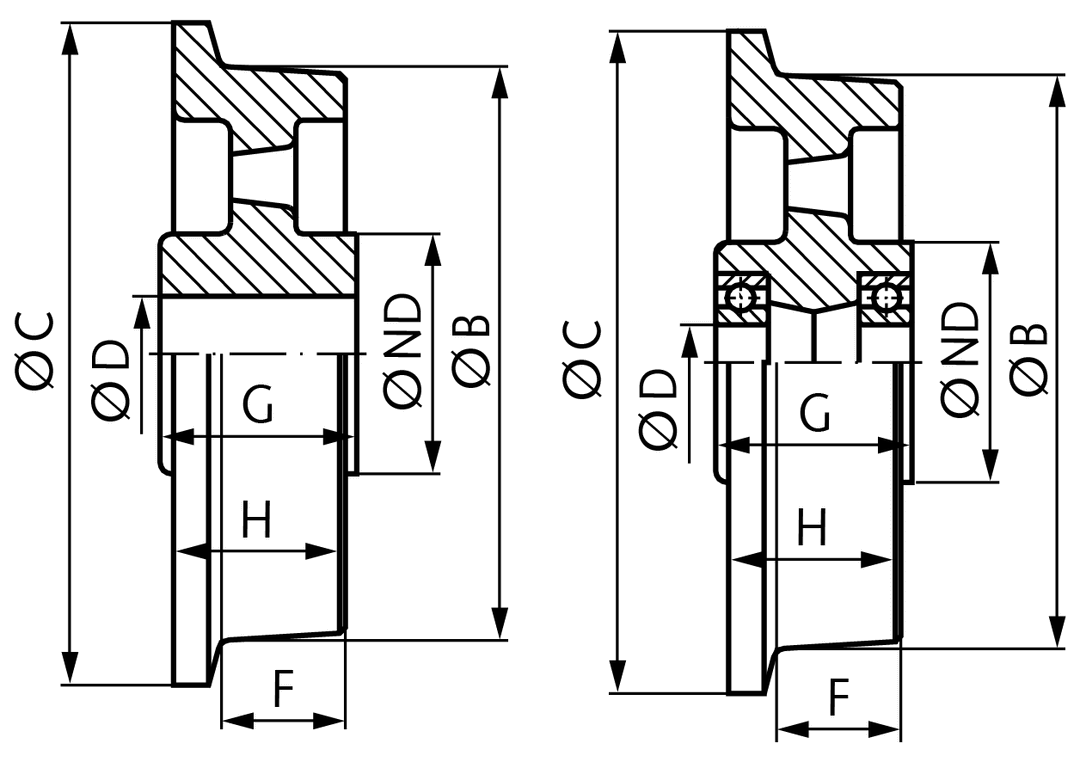

Specifications (automatically extracted)
Mechanical
| Weight | 3.5 kg |
Other characteristics
| Ballbearing | 6 204 Z |
| Bore diameter | 20 mm |
| Hub diameter | 62 mm |
| Hub length symmetric | 52 mm |
| Max wheel load | 1 000 kg |
| Running surface | 36 mm |
| Wheel diameter with flange | 175 mm |
| Wheel diameter without flange | 150 mm |
| Wheel width with flange | 46 mm |
| Material | Grey cast iron (A48) |
| Surface | Zinc-plated |
Description
Material: Cast iron GG25, zinc-plated. Version with Ball Bearing. Outer dimensions and weights are approximate. Flange and running surface precisely turned, running surface inclined at 3° towards the axle. As standard the roller bearings are sealed with Z-plates. Temperature range: -30°C to +90°C (for short time up to +110°C).
