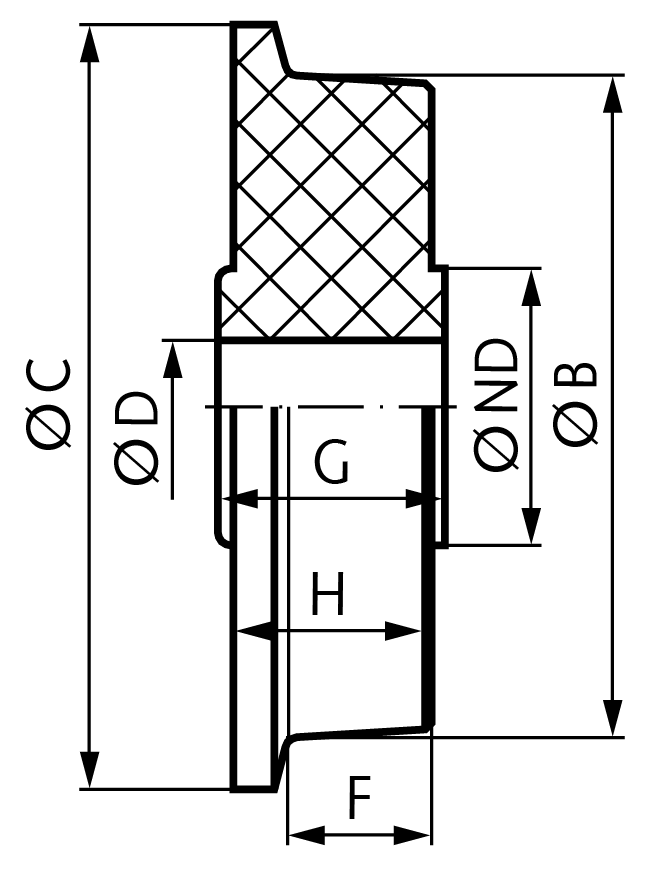

Crane wheel made of polyamide with single sided flange diameter without flange 100mm
Manufacturer part no. 77541000
$101.33≈ 88.00 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €88.00 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €20.60 |
| Total delivered | €123.60 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 360 g |
Other characteristics
| Bore diameter | 20 mm |
| Hub diameter | 50 mm |
| Hub length symmetric | 40 mm |
| Max wheel load | 280 kg |
| Running surface | 32 mm |
| Wheel diameter with flange | 120 mm |
| Wheel diameter without flange | 100 mm |
| Wheel width with flange | 45 mm |
| Material | Polyamide (PA) |
| Surface | Blank |
Description
Runner Wheels Made of Polyamide (dimensions in mm) This Polyamide grade has a high abrasion resistance with low friction coefficient, is self lubricating and can thus, at low speeds, easily be used as plain bearing. Temperature range: -30°C to +80°C. *Above +35°C, the load has to be reduced. At the max. temperature, the max. load capacity is only 40 to 50% of the load shown in the table. Note: Inside these die-cast parts are some cavities caused by production. These parts should therefore not be drilled too deep. With larger bores or when grooving the cavities might become visible. This often does not affect the functionality.
