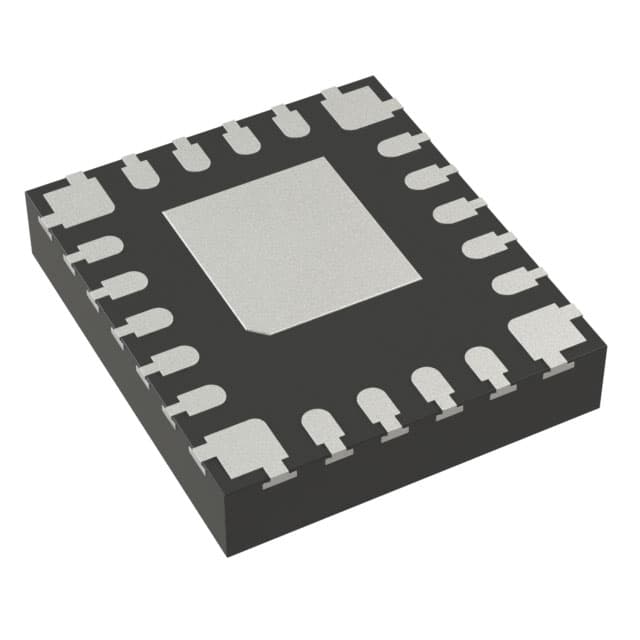

Texas Instruments TPSM82864AA0SRDJR — DC DC CONVERTER 0.6-5.5V
Manufacturer part no. TPSM82864AA0SRDJR
€3.74
In stock — 3623 unitslead time 112 d
- Sans objet
Estimated landed cost
| Item | €3.74 |
|---|---|
| Shipping | €25.00 |
| VAT (20%) | €5.75 |
| Total delivered | €34.49 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Volume pricing
| Qty | Unit price | Saving |
|---|---|---|
| ≥ 1 | €3.74 | |
| ≥ 5 | €3.61 | −4 % |
| ≥ 10 | €3.55 | −5 % |
| ≥ 25 | €3.47 | −7 % |
| ≥ 50 | €3.42 | −9 % |
| ≥ 100 | €3.36 | −10 % |
| ≥ 250 | €3.29 | −12 % |
| ≥ 500 | €3.24 | −13 % |
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Current max. | 4 A |
| Voltage | 5.5 V |
Other characteristics
| Nombre de sorties | 1 |
| Rendement | 96 % |
| Tension entree max. | 5.5 V |
| Tension entree min. | 2.4 V |
| Applications | ITE (commercial) |
| Boitier | Module 23-PowerLFQFN |
| Boitier fournisseur | 23-B0QFN (3,5x4) |
| Fonctionnalites | Sortie ajustable, marche/arrêt à distance, détection à distance |
| Fonctionnalites de commande | Activation, actif haut |
| Taille dimension | 0,14po L x 0,16po l x 0,05po H (3,5mm x 4,0mm x 1,4mm) |
| Temperature de fonctionnement | -40°C ~ 125°C |
| Tension sortie 1 |
Description
Module PoL non isolé Convertisseurs CC/CC 1 Sortie 0,6 ~ 5,5V 4A 2,4V - 5,5V Entrée
