MÄDLERMÄDLER· Sprockets, Chains, Accessories

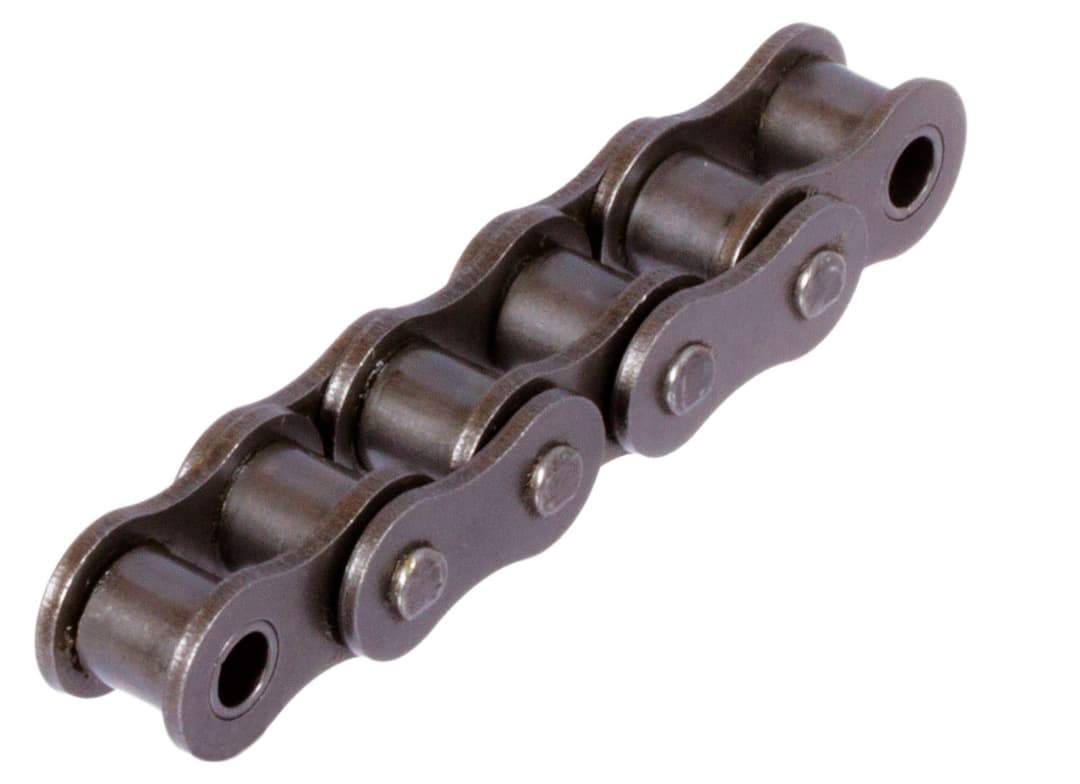

Chain company standard pitch 4mm
Manufacturer part no. 10000000
$241.27≈ 209.53 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €209.53 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €44.91 |
| Total delivered | €269.44 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics

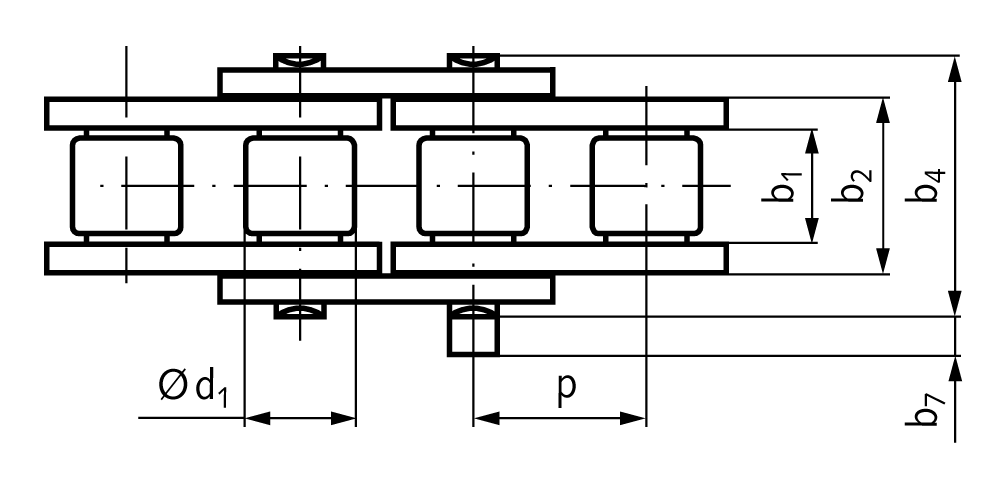

| Bolt diameter | 1.65 mm |
| Breaking load min. | 1 800 N |
| Din iso no | 4 mm |
| Inner width | 4.1 mm |
| Number of strands | 1 |
| Projection over link | 0.9 mm |
| Rollerdiameter | 2.5 mm |
| Total width over pin | 7 mm |
| Material | Steel |
| Pitch x inner width | 4.0 x 2.7 mm |
| Surface | Blank |
| Weight | 0.08 kg/m |
Description
According to DIN ISO 606 (ex DIN 8187). Material: Special chain steel. High-quality simplex roller chains, pre-stretched according to DIN. Waisted link plates (size 06 with straight link plates). Chains with an uneven number of links are supplied with inner links at both ends. Connecting links must be ordered separately. Temperature range: -20°C to +120°C. Other temperatures are possible if special grease is used. * Pitch 4mm: bush chain 1 Unit = 1 Meter = 39.37 Inches
