Sprocket KRS with hub pitch 5mm 16 teeth material steel
Manufacturer part no. 10031600
$8.76≈ 7.61 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €7.61 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.52 |
| Total delivered | €27.13 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 20 g |
Other characteristics
| Bore | 8 mm |
| Din iso no | 3 |
| Hub diameter | 18 mm |
| No of teeth | 16 |
| Number of strands | 1 |
| Outer diameter | 27.8 mm |
| Pitch circle diameter | 25.63 mm |
| Total length | 13 mm |
| Hardened | No |
| Hub | One sided |
| Material | Low-carbon steel |
| Surface | Blank |
Description

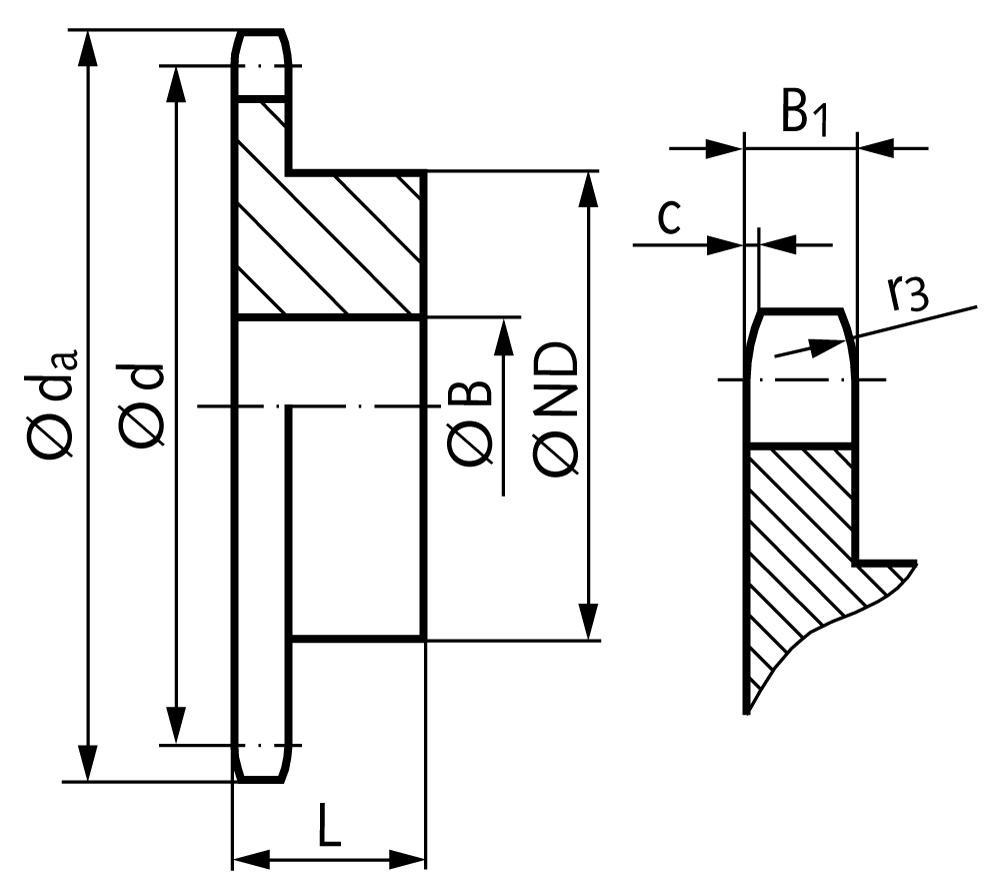

Material: Low-carbon steel, not hardable. Pre-bored. General dimensions: B1= 2,3 mm, c= 0,5 mm, r3= 5 mm. Other dimensions: See the table.
