Plate wheel KRL without hub pitch 8mm 114 teeth material steel

MÄDLERMÄDLER· Mechanics & transmission

Plate wheel KRL without hub pitch 8mm 114 teeth material steel

Name: Plate wheel KRL without hub pitch 8mm 114 teeth material steel
Brand: MÄDLER
Price: 138.86 USD
Availability: InStock

Manufacturer part no. 10098800

$138.86≈ 122.29 €

Price summary

Listed by MÄDLER at €122.29. Delivered to France, including shipping, VAT and any customs duty, it comes to about €164.75. Prices last checked on 2026-10-01.

Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.

In stock — 1 unitslead time 14 d

View at seller ↗

Estimated landed cost

Landed cost breakdown
Item	€122.29
Shipping	€15.00
VAT (20%)	€27.46
Total delivered	€164.75

Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

Datasheets & documents

Specifications (automatically extracted)

Mechanical

Weight

1.992 kg

Other characteristics

Bore	20 mm
No of teeth	114
Number of strands	1
Outer diameter	294.5 mm
Pitch circle diameter	290.33 mm
Din iso no	05 B-1
Hardened	No
Hub	Without
Material	Low-carbon steel
Surface	Blank

Description

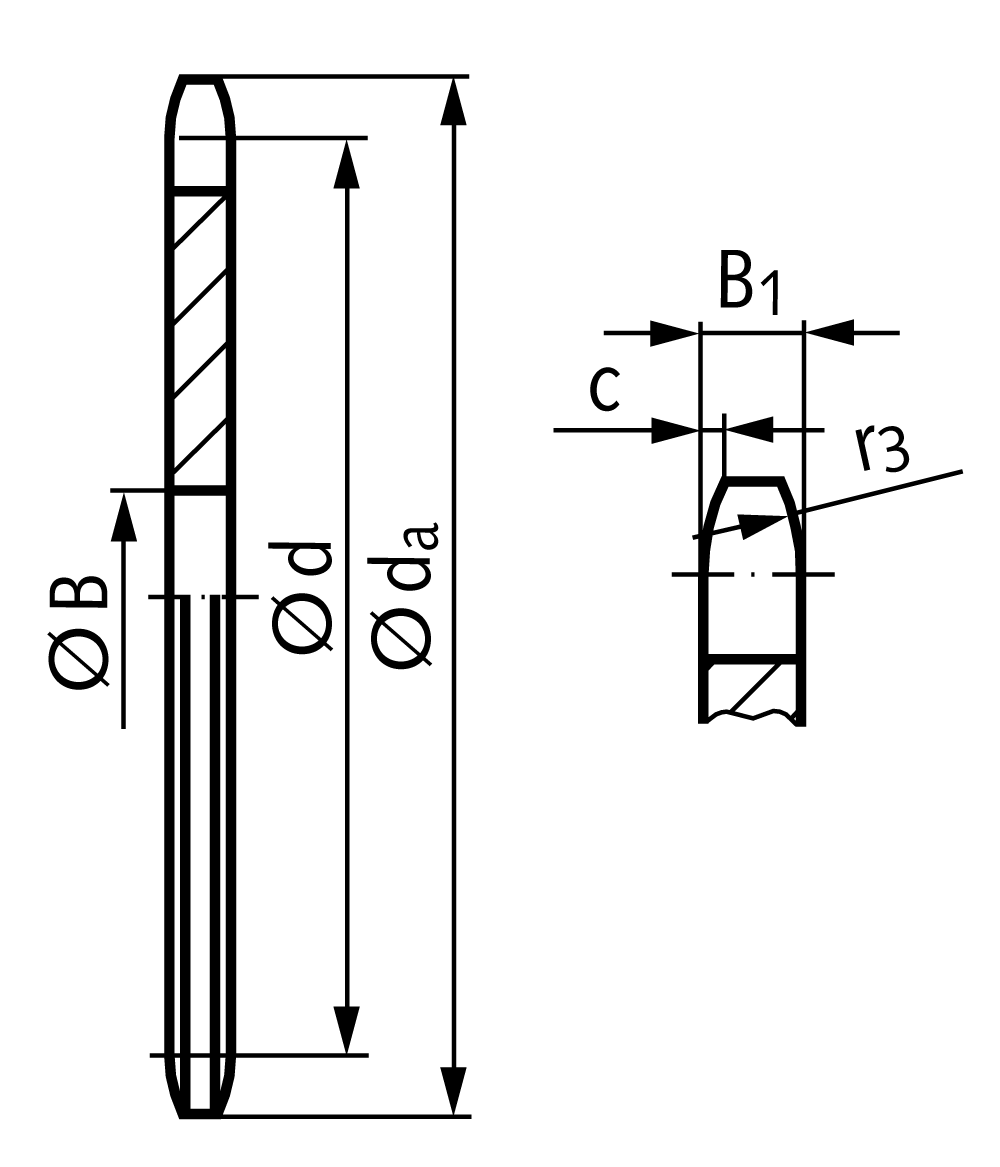

Material: Low-carbon steel, not hardable. Pre-bored. From a Teeth Number of 48 reinforced (H = 4 mm, see drawing). General dimensions: B1 = 2,8 mm, c = 1,0 mm, r3 = 8 mm. Other dimensions: See the table.
