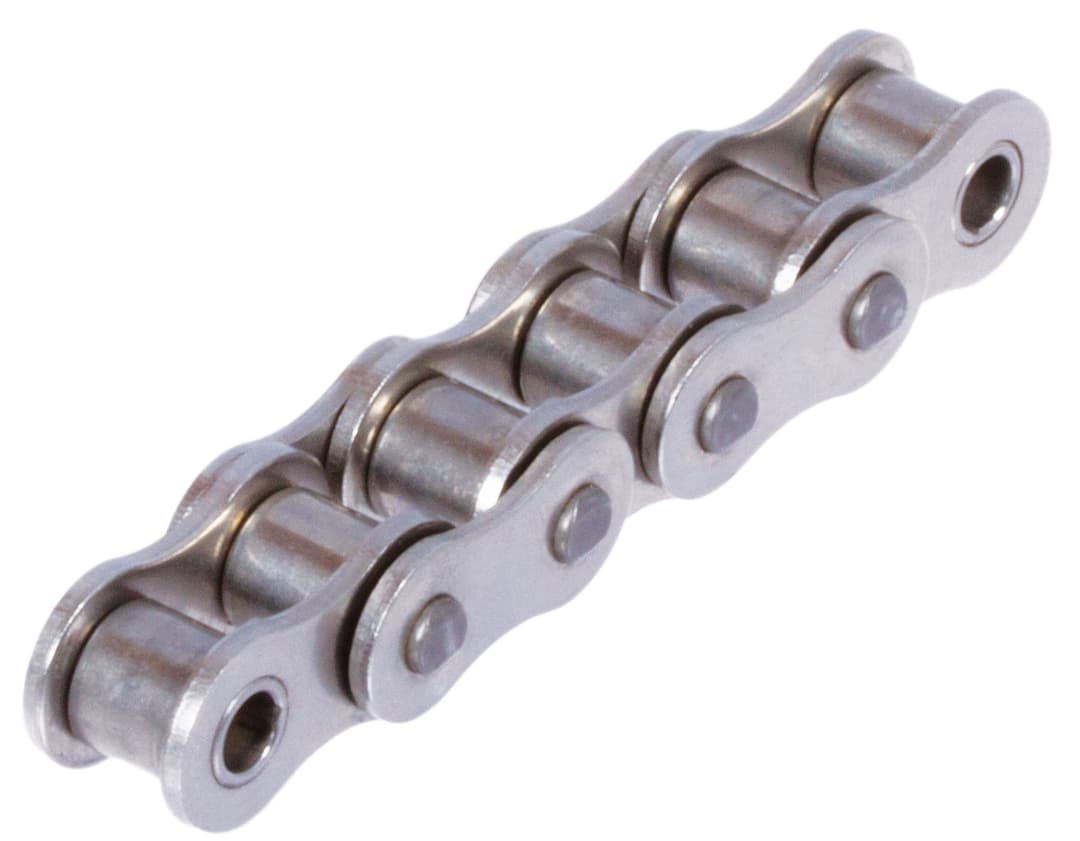

Roller chain no. 04 pitch 6mm material stainless steel 1.4301
Manufacturer part no. 10099600
$68.29≈ 59.31 €
In stock — 18 unitslead time 14 d
Estimated landed cost
| Item | €59.31 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €14.86 |
| Total delivered | €89.17 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Bolt diameter | 1.85 mm |
| Breaking load min. | 2 000 N |
| Din iso no | 4 |
| Inner width | 4.1 mm |
| Number of strands | 1 |
| Projection over link | 2.9 mm |
| Rollerdiameter | 4 mm |
| Total width over pin | 7.4 mm |
| Material | Stainless steel (304) |
| Pitch x inner width | 6.0 x 2.8 mm |
| Surface | Blank |
| Weight | 0.12 kg/m |
Description
Similar to DIN ISO 606 (ex DIN 8187). Material: Stainless steel 1.4301 (AISI 304). Good chemical resistance. Main dimensions according to DIN. Due to the material properties, the stated transmittable power and breaking load are below the value for the standard chains. The application should use no more than one sixth of the braking load stated. Pre-stretched. Not lubricated. The chains must be lubricated according to the type of application. Waisted link plates (size 06 with straight link plates). Chains with an uneven number of links are supplied with inner links at both ends. Connecting links have to be ordered separately. 1 Unit = 1 Meter = 39.37 Inches
