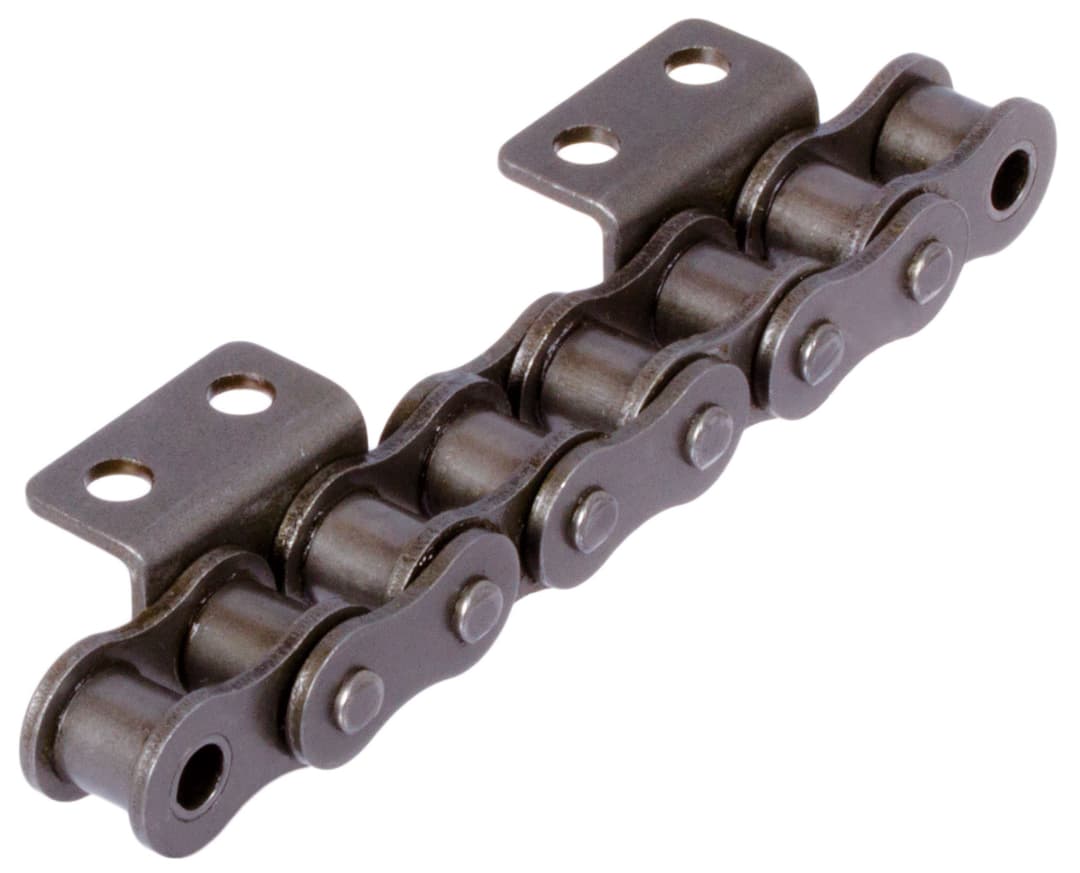

Roller chain with bent attachments 06 B-1-K2, 4xp attachments wide version on one side
Manufacturer part no.
Manufacturer part no.
Listed by MÄDLER at €32.14. Delivered to France, including shipping, VAT and any customs duty, it comes to about €56.57. Prices last checked on 2026-09-29.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €32.14 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.43 |
| Total delivered | €56.57 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

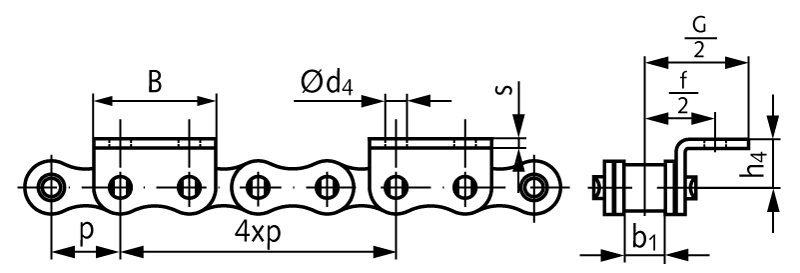

| Center distance from middle axis to hole | 9.5 mm |
| Distance from middle axis to attachments end | 13.7 mm |
| Flansch width | 17.7 mm |
| Height of pin to support surface | 6.5 mm |
| Hole diameters | 3.5 mm |
| Inner width | 5.72 mm |
| Number of strands | 1 |
| Pitch | 9.525 mm |
| Thickness of attachment | 1.2 mm |
| Din iso no | 06 B-1 |
| Material | Steel |
| Pitch x inner width inch | 3/8 x 7/32″ |
| Surface | Blank |
| Version | One sided |
| Weight |
Material: Special chain steels. According to DIN ISO 606 (ex DIN 8187). Attachment distance 4 x p (attachment at every second outer link). Other attachment distances can be supplied at short notice. Different attachment sizes and special chains on request. Connecting links 11/E have to be ordered separately. * The marked dimensions are not listed in the DIN. 1 Unit = 1 Meter = 39.37 Inches
| 0.51 kg/m |
