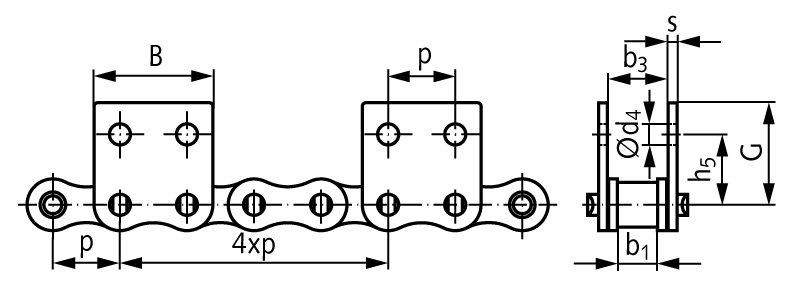

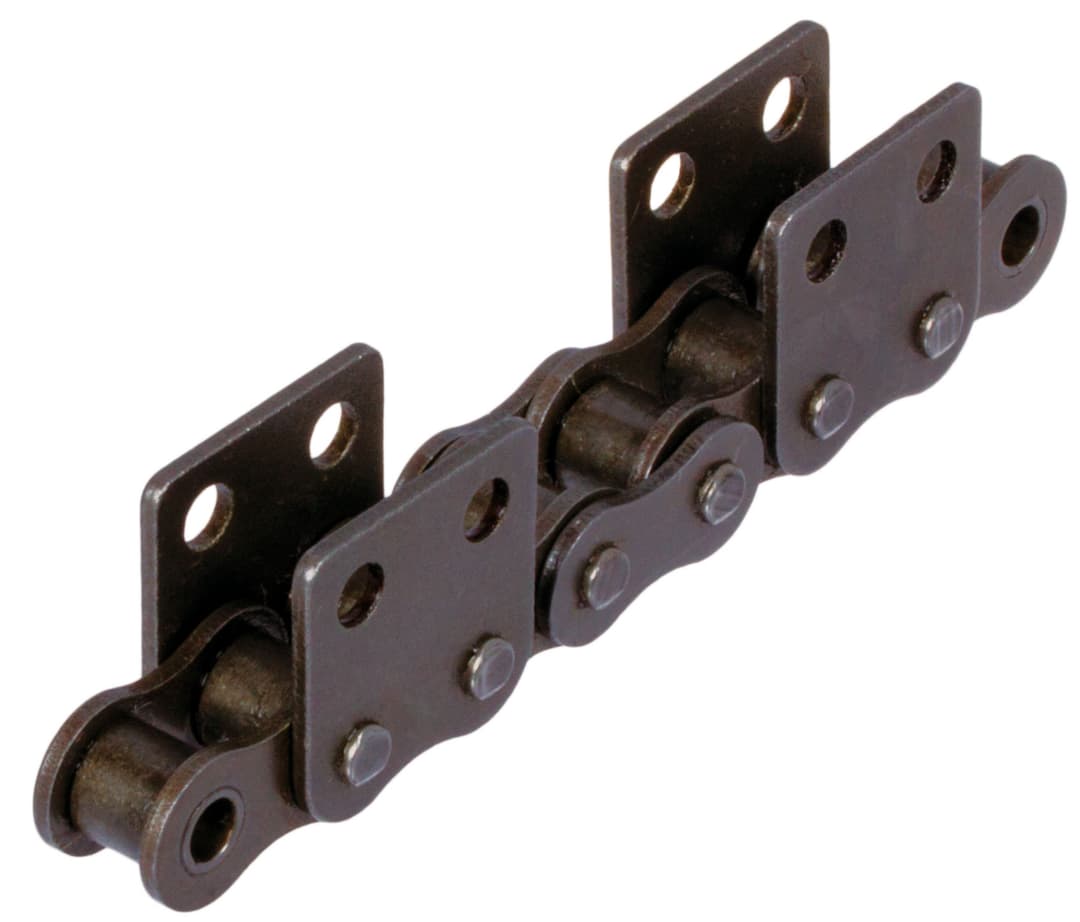

Roller chain with straight attachments 06 B-1-M2, 4xp attachments wide version on both sides
Manufacturer part no. 10100054
$44.29≈ 38.46 €
In stock — 3 unitslead time 14 d
Estimated landed cost
| Item | €38.46 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.69 |
| Total delivered | €64.15 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Center distance from pin to hole at the attachme | 9.5 mm |
| Flansch width | 17.7 mm |
| Height of attachments up to pin | 13.5 mm |
| Hole diameters | 3.5 mm |
| Inner width | 5.72 mm |
| Inner width between outer links | 8.66 mm |
| Number of strands | 1 |
| Pitch | 9.525 mm |
| Thickness of attachment | 1.2 mm |
| Din iso no | 06 B-1 |
| Material | Steel |
| Pitch x inner width inch | 3/8 x 7/32″ |
| Surface | Blank |
| Version | Both sided |
| Weight |
Description
Material: Special chain steels. According to DIN ISO 606 (ex DIN 8187). Attachment distance 4 x p (attachment at every second outer link). Other attachment distances can be supplied at short notice. Different attachment sizes and special chains on request. Connecting links 11/E have to be ordered separately. * The marked dimensions are not listed in the DIN. 1 Unit = 1 Meter = 39.37 Inches
