MÄDLERMÄDLER· Sprockets, Chains, Accessories

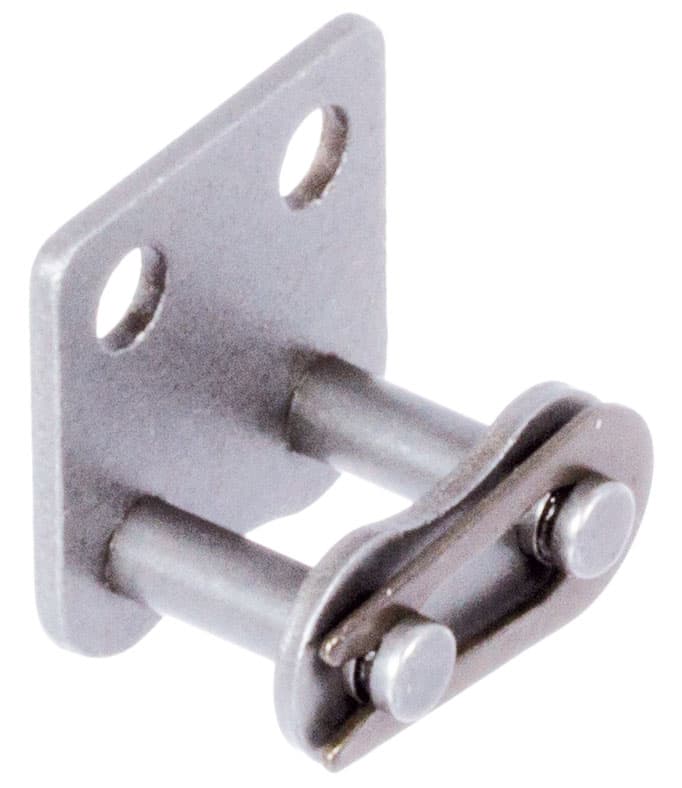

Chain connecting link type 11 / E with straight attachments 06 B-1-M2 attachments wide version on one side stainless steel 1.4301
Manufacturer part no. 10199351
$5.32≈ 4.62 €
In stock — 8 unitslead time 14 d
Estimated landed cost
| Item | €4.62 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.92 |
| Total delivered | €23.54 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 5.6 g |
Other characteristics
| Center distance from pin to hole at the attachme | 9.5 mm |
| Flansch width | 17.7 mm |
| Height of attachments up to pin | 13.5 mm |
| Hole diameters | 3.5 mm |
| Inner width between outer links | 8.66 mm |
| Number of strands | 1 |
| Pitch | 9.525 mm |
| Thickness of attachment | 1.2 mm |
| Din iso no | 06 B-1 |
| Material | Stainless steel (304) |
| Surface | Blank |
| Version | One sided |
Description
Material: Stainless steel 1.4301 (AISI 304). With spring clip. For stainless simplex roller chains. With good chemical resistance. Main dimensions according to DIN ISO 606 (ex DIN 8187).
