MÄDLERMÄDLER· Sprockets, Chains, Accessories

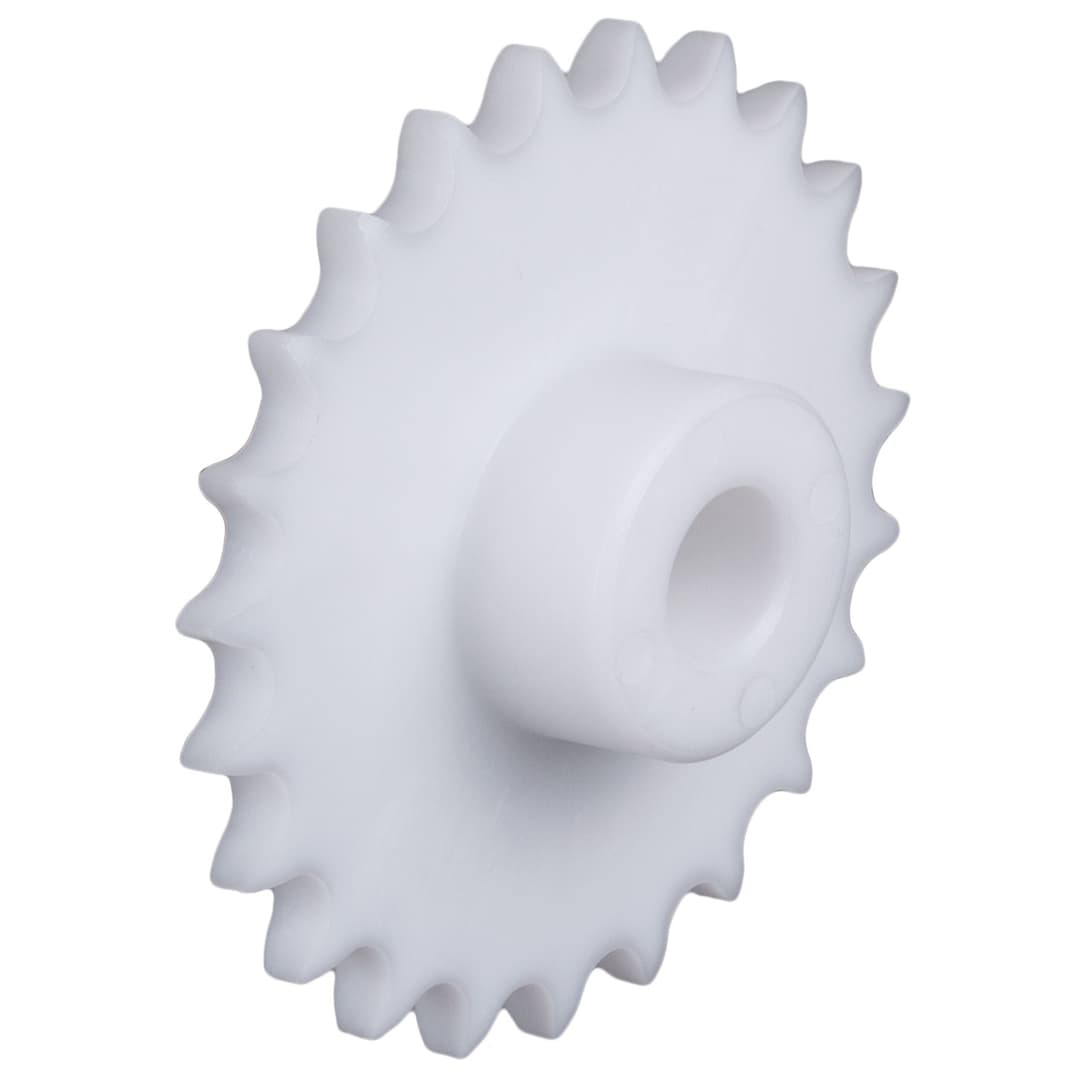

Sprocket KRK with hub 081 1/2 X 1/8″ 25 teeth material polyacetal resin
Manufacturer part no. 10252500
$11.40≈ 9.90 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €9.90 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.98 |
| Total delivered | €29.88 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 51 g |
Other characteristics
| Bore | 12 mm |
| Din iso no | 81 |
| Hub diameter | 32 mm |
| No of teeth | 25 |
| Number of strands | 1 |
| Outer diameter | 107 mm |
| Pitch circle diameter | 101.33 mm |
| Total length | 20 mm |
| Hub | One sided |
| Material | Plastic die-cast (Polyacetal, up to 80°C) |
| Surface | Blank |
Description

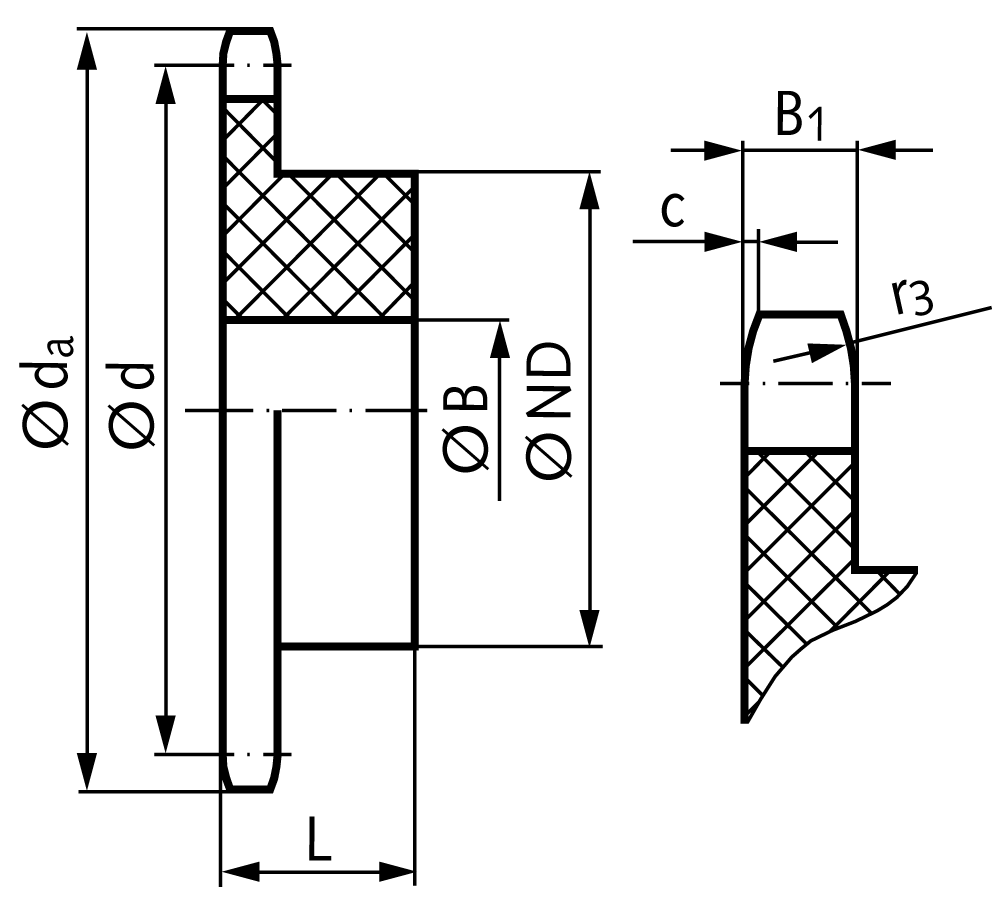

Bores ISO H8. Metal inlays at the hub with custom bore, feather keyways or threads for set screw available on request, depending on the amount and size ordered. General dimensions: B1 = 3 mm, c = 1,3 mm, r3 = 13 mm. Other dimensions: See the table.
