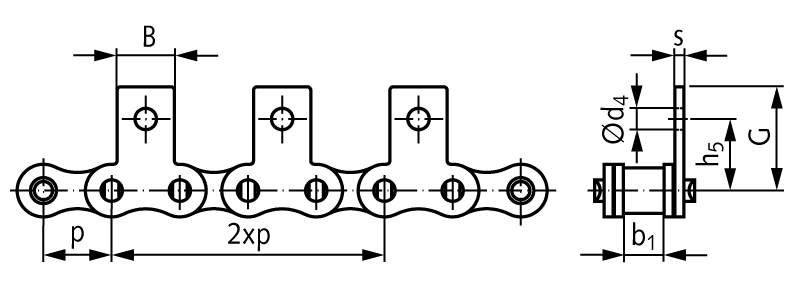

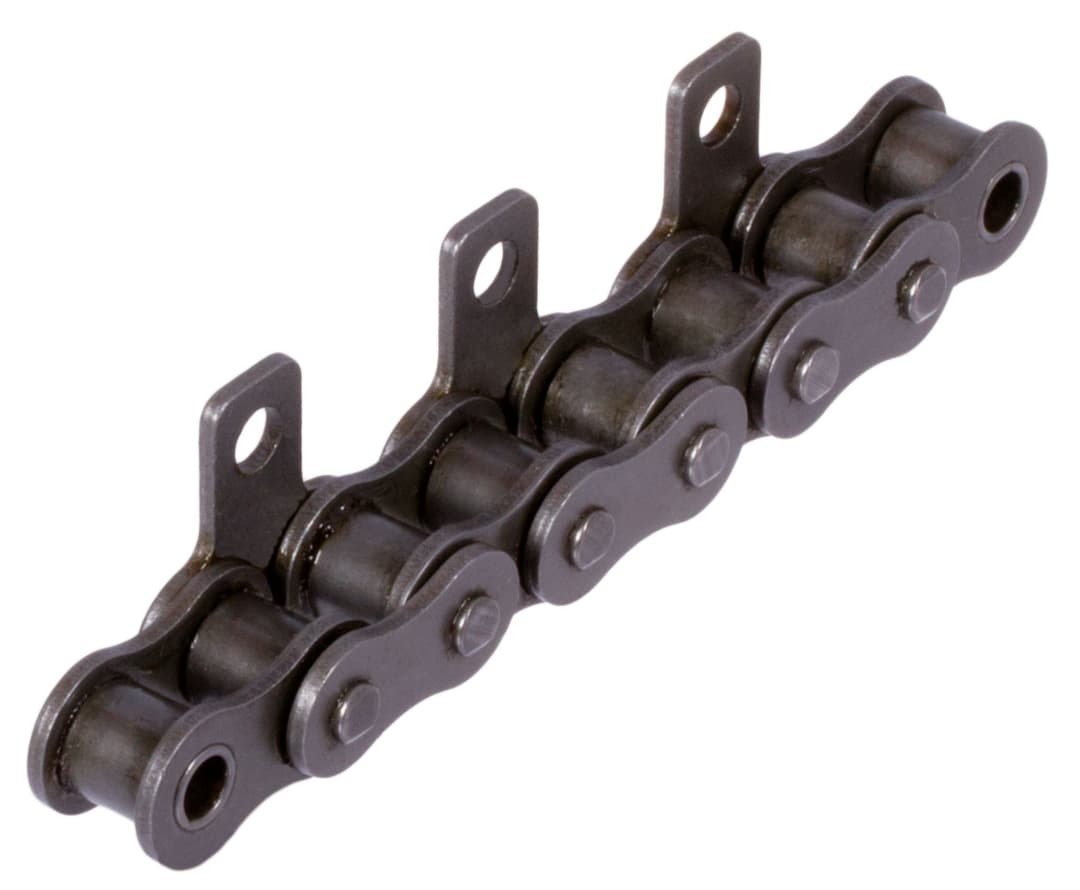

Roller chain with straight attachments 08 B-1-M1 2xp attachments slim version on one side
Manufacturer part no. 10500031
$37.26≈ 32.36 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €32.36 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.47 |
| Total delivered | €56.83 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Center distance from pin to hole at the attachme | 13 mm |
| Flansch width | 9.5 mm |
| Height of attachments up to pin | 17.9 mm |
| Hole diameters | 4.3 mm |
| Inner width | 7.75 mm |
| Inner width between outer links | 11.43 mm |
| Number of strands | 1 |
| Pitch | 12.7 mm |
| Thickness of attachment | 1.6 mm |
| Din iso no | 08 B-1 |
| Material | Steel |
| Pitch x inner width inch | 1/2 x 5/16″ |
| Surface | Blank |
| Version | One sided |
| Weight |
Description
Material: Special chain steels. According to DIN ISO 606 (ex DIN 8187). Attachment distance 2 x p (attachment at every outer link). Other attachment distances can be supplied at short notice. Different attachment sizes and special chains on request. Connecting links M1 have to be ordered separately. * The marked dimensions are not listed in the DIN. 1 Unit = 1 Meter = 39.37 Inches
