MÄDLERMÄDLER· Sprockets, Chains, Accessories

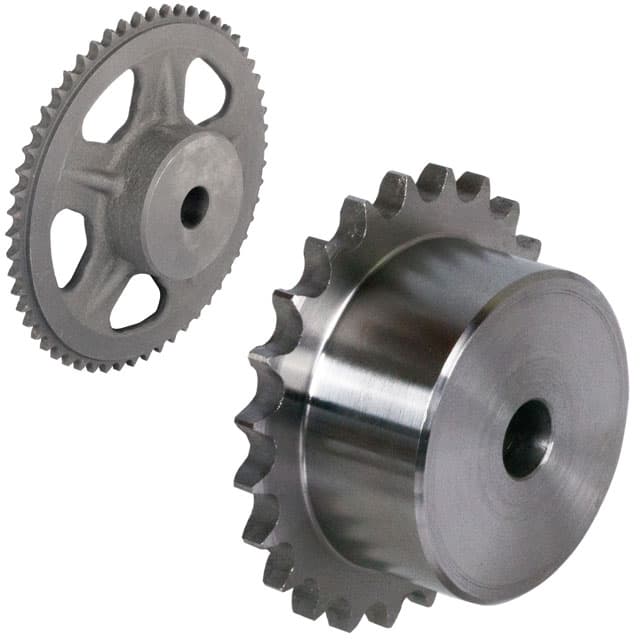

Sprocket KRS with hub 08 B-1 1/2×5/16″ 34 teeth material steel
Manufacturer part no. 10513400
$31.12≈ 27.03 €
On backorderlead time 14 d
Estimated landed cost
| Item | €27.03 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.41 |
| Total delivered | €50.44 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.867 kg |
Other characteristics
| Bore | 16 mm |
| Hub diameter | 90 mm |
| No of teeth | 34 |
| Number of strands | 1 |
| Outer diameter | 142.6 mm |
| Pitch circle diameter | 137.64 mm |
| Total length | 30 mm |
| Din iso no | 08 B-1 |
| Hardened | No |
| Hub | One sided |
| Material | Steel (1045) |
| Surface | Blank |
Description

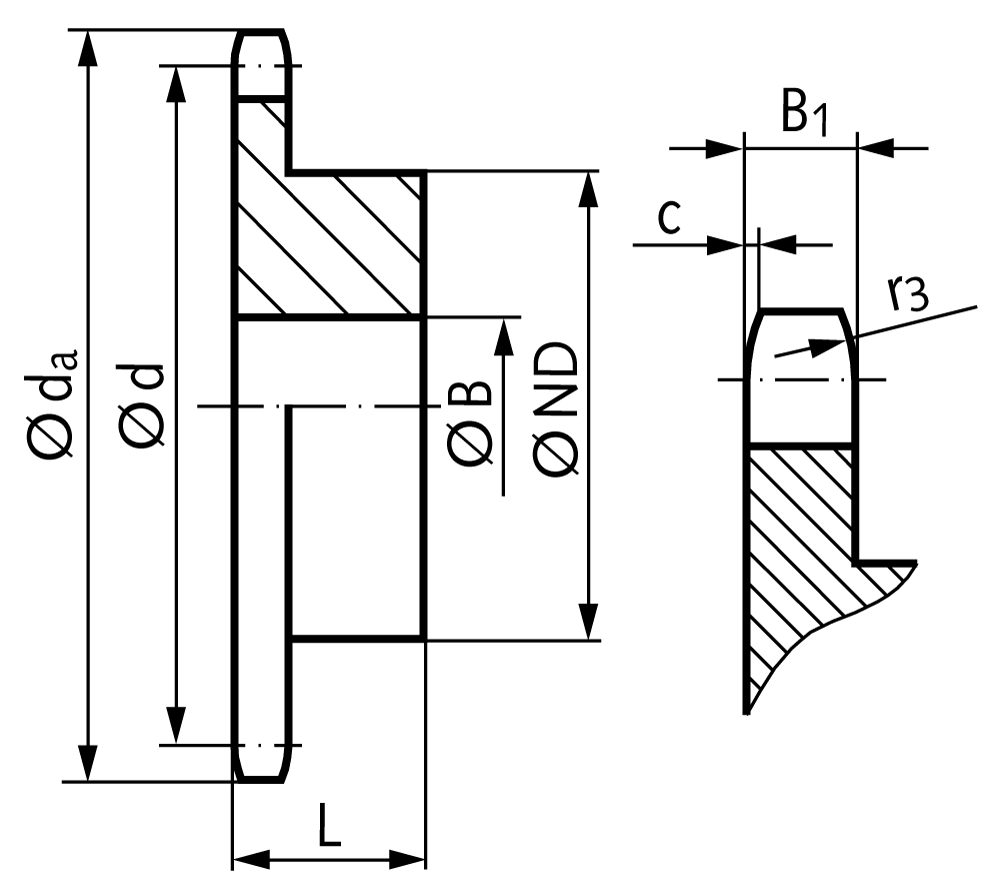

Material: Steel C45. Pre-bored. Sprockets with 45 teeth and more are made from grey cast iron GG25. General dimensions: B1 = 7,2 mm, c = 1,3 mm, r3 = 13 mm. Other dimensions: See the table.
