Plate wheel KRL without hub 08 B-1 1/2×5/16″ 14 teeth material steel
Manufacturer part no. 10521400
$5.69≈ 5.07 €
Manufacturer part no. 10521400
Listed by MÄDLER at €5.07. Delivered to France, including shipping, VAT and any customs duty, it comes to about €24.08. Prices last checked on 2026-10-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €5.07 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.01 |
| Total delivered | €24.08 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
| Weight | 107 g |
| Bore | 10 mm |
| No of teeth | 14 |
| Number of strands | 1 |
| Outer diameter | 61.8 mm |
| Pitch circle diameter | 57.07 mm |
| Din iso no | 08 B-1 |
| Hardened | No |
| Hub | Without |
| Material | Low-carbon steel |
| Surface | Blank |

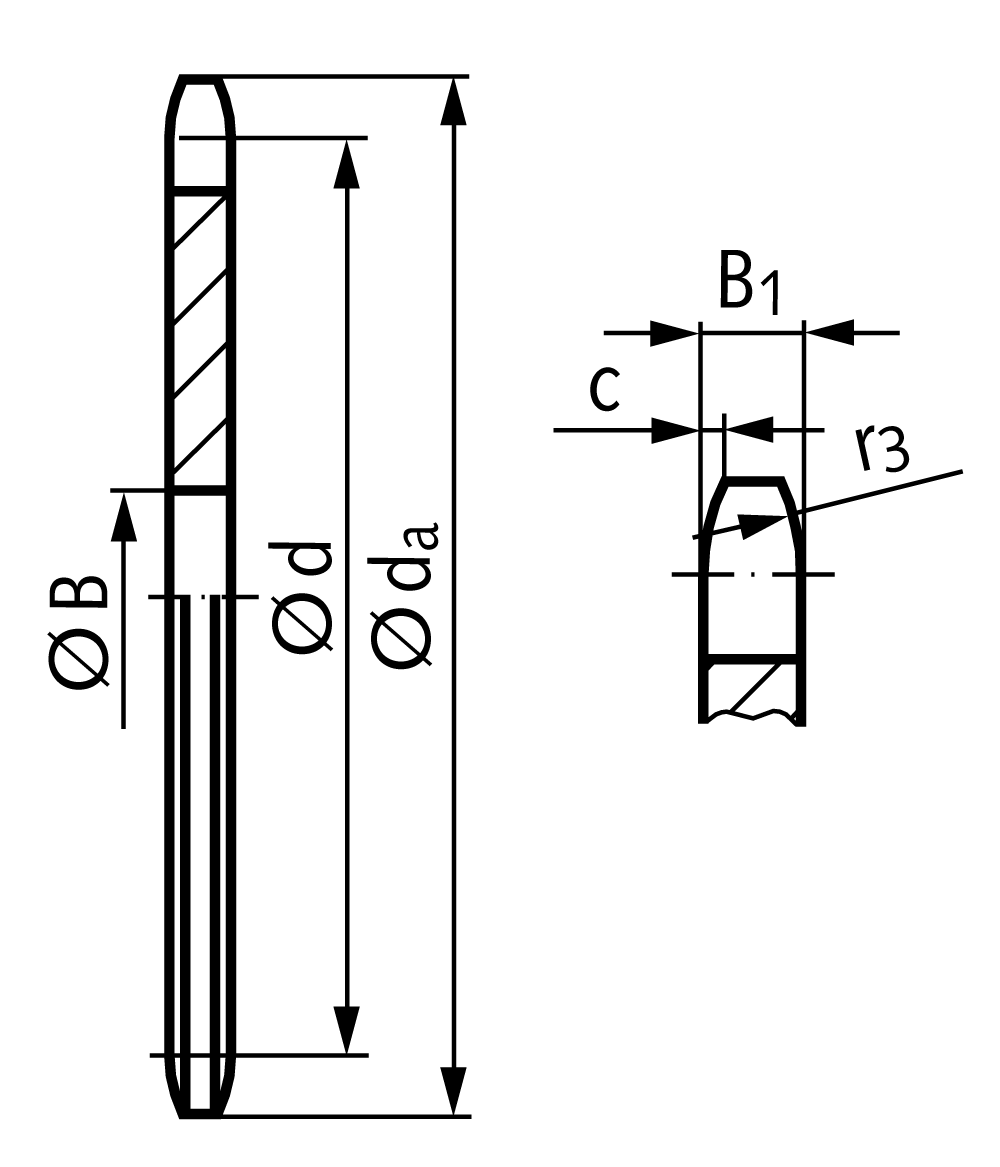

Material: Low-carbon steel, not hardable. Pre-bored. General dimensions: B1 = 7,2 mm, c = 1,3 mm, r3 = 13 mm. Other dimensions: See the table.
