MÄDLERMÄDLER· Sprockets, Chains, Accessories

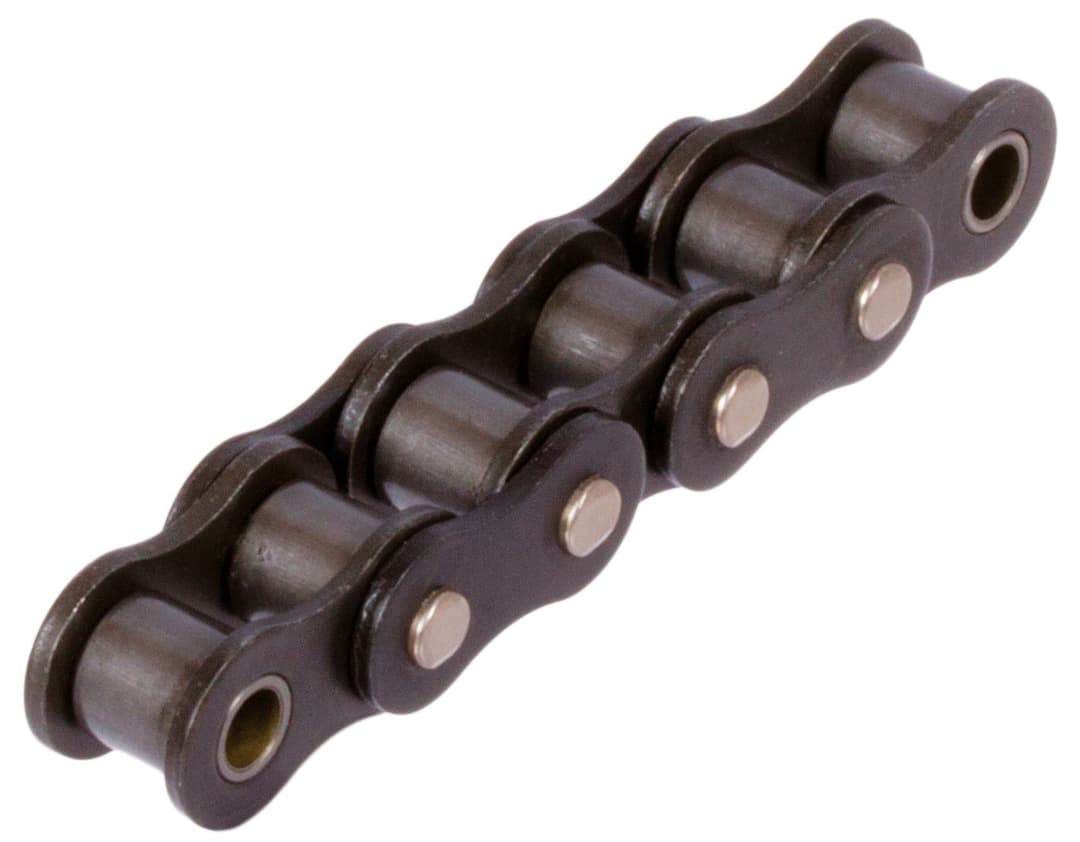

Self-lubrication roller chain similar to 08 B-1 SLR pitch 1/2×5/16″
Manufacturer part no. 10577000
$77.26≈ 67.10 €
In stock — 8 unitslead time 14 d
Estimated landed cost
| Item | €67.10 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €16.42 |
| Total delivered | €98.52 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Bolt diameter | 4.45 mm |
| Breaking load min. | 17 800 N |
| Inner width | 11.3 mm |
| Number of strands | 1 |
| Projection over link | 3.9 mm |
| Rollerdiameter | 8.51 mm |
| Total width over pin | 17 mm |
| Din iso no | 08 B-1 |
| Material | Steel / bronze self-lubrication |
| Pitch x inner width | 12.7 x 7.75 mm |
| Pitch x inner width inch | 1/2 x 5/16″ |
| Surface | Blank |
| Weight | 0.72 kg/m |
Description
Similar to DIN ISO 606 (ex DIN 8187). Material: Special chain steel, sintered bronze bushes. Self-lubricating single-strand roller chain, dimensions and pre-stretching according to DIN. Waisted link plates. Chains with an uneven number of links are supplied with inner links at both ends. Only for horizontal usage (rollers not vertically). Connecting links must be ordered separately. Temperature range: -10° to +120°C. 1 Unit = 1 Meter = 39.37 Inches
