MÄDLERMÄDLER· Sprockets, Chains, Accessories

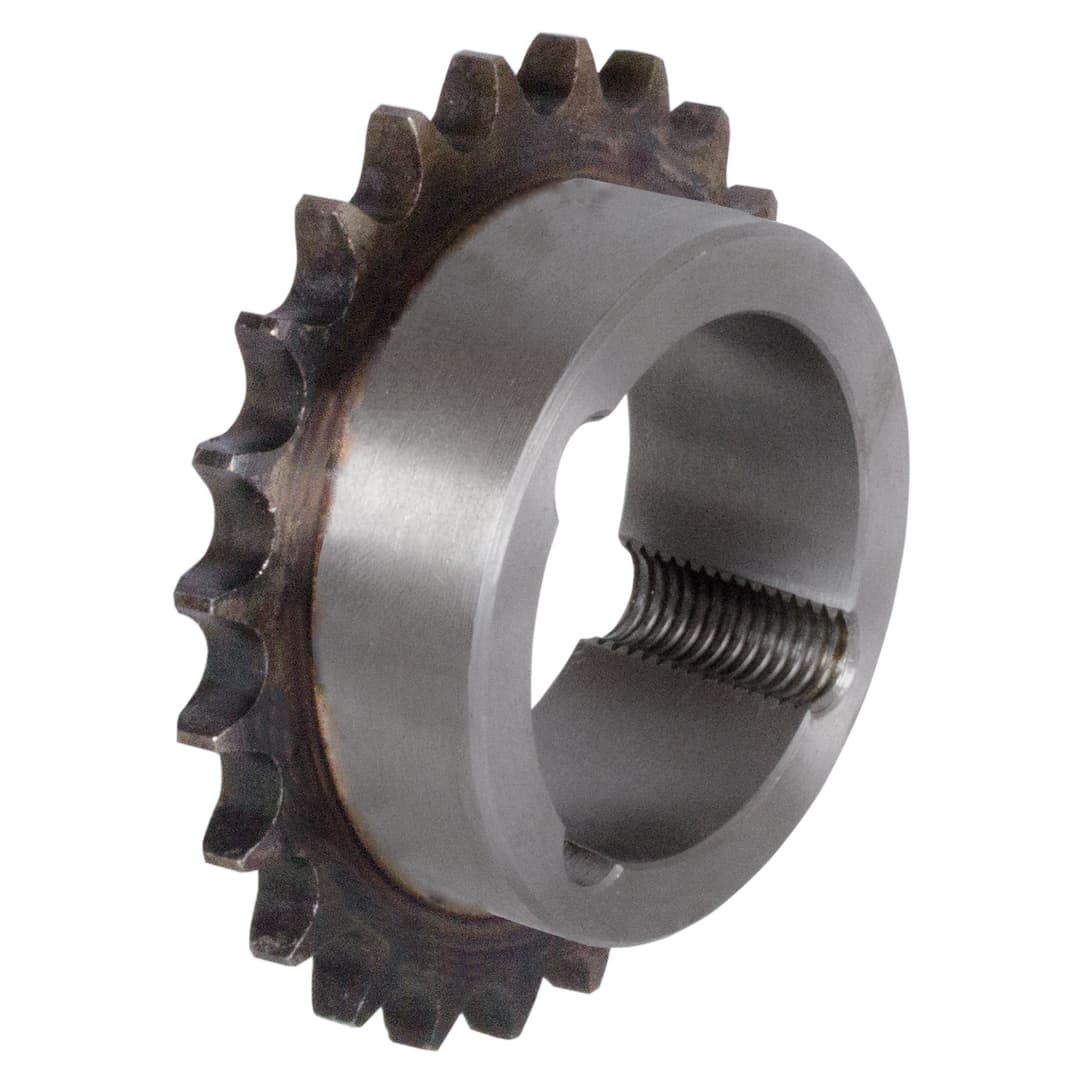

Sprocket KRTG 08 B-1 1/2×5/16″ 19 teeth material steel teeth hardened for taper bush type 1210
Manufacturer part no. 10578119
$19.99≈ 17.36 €
On backorderlead time 14 d
Estimated landed cost
| Item | €17.36 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.47 |
| Total delivered | €38.83 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 340 g |
Other characteristics
| Hub diameter | 63 mm |
| Max bore diameter | 32 mm |
| Min bore diameter | 10 mm |
| No of teeth | 19 |
| Number of strands | 1 |
| Outer diameter | 81.7 mm |
| Pitch circle diameter | 77.16 mm |
| Taper bushing type | 1 210 |
| Total length | 25 mm |
| Din iso no | 08 B-1 (Taper) |
| Hardened | Yes |
| Hub | One sided |
| Material | Steel (1045) |
| Surface | Blank |
Description
Material: Steel C45, Teeth milled and induction hardened (approx. HRC 50). Hardened sprockets for taper bushes, for easy and fast mounting. They can be used with and without key. The taper bush has to be ordered separately. These bushes are available with various outer dimensions and many different bores. In this youtube video we show the mounting and demounting of taper bushes: Video clip (3.5 Minutes)
