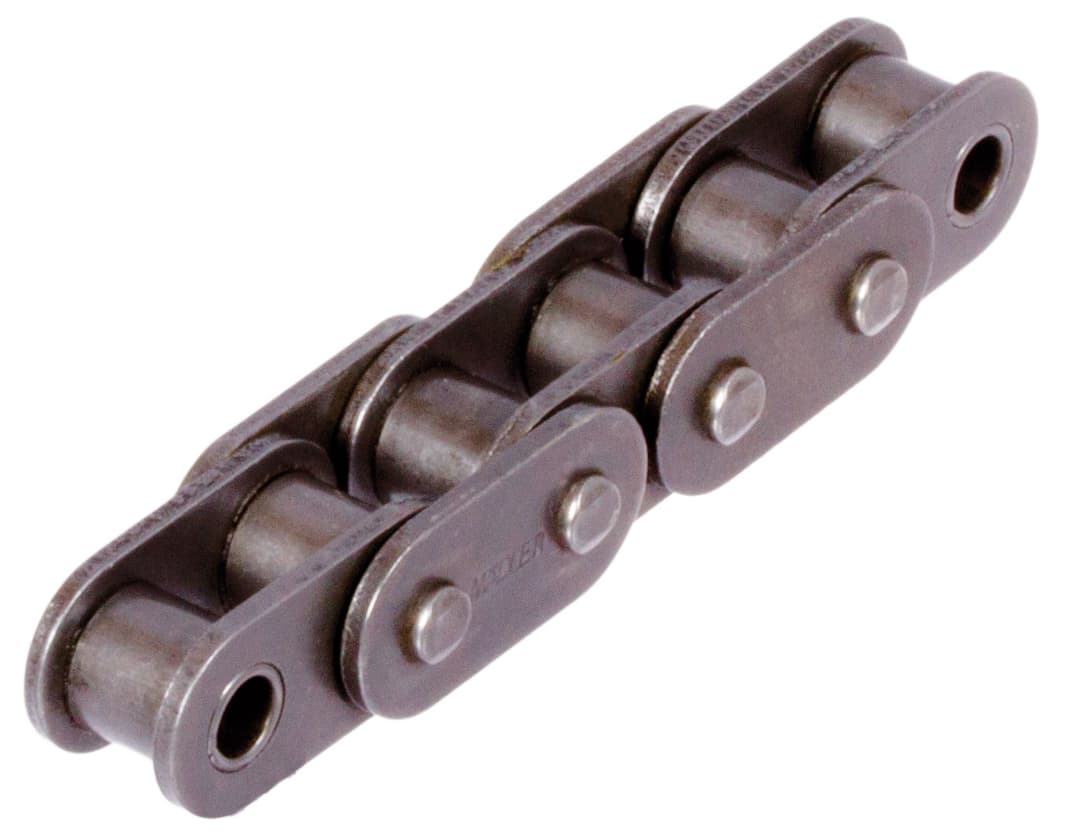

Roller chain DIN ISO 606 16 B-1-GL pitch 1″x17,02mm with straight plates
Manufacturer part no. 10800000GL
$52.62≈ 45.70 €
In stock — 46 unitslead time 14 d
Estimated landed cost
| Item | €45.70 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €12.14 |
| Total delivered | €72.84 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)

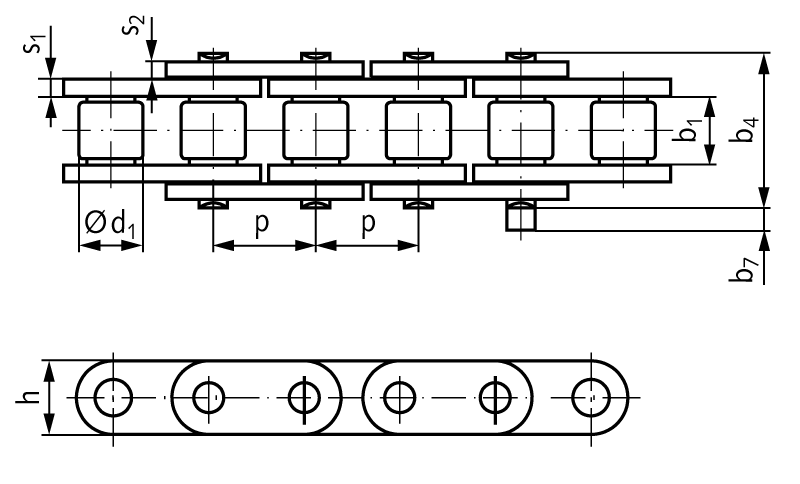

Other characteristics
| Bolt diameter | 8.28 mm |
| Breaking load min. | 60 000 N |
| Number of strands | 1 |
| Plate height | 21 mm |
| Projection over link | 3 mm |
| Rollerdiameter | 15.88 mm |
| Total width over pin | 36.1 mm |
| Din iso no | 16 B-1-GL |
| Material | Steel |
| Pitch x inner width | 25.4 x 17.02 mm |
| Pitch x inner width inch | 1″ x 17,02 mm |
| Plate thickness | 4.15/3.1 mm |
| Surface | Blank |
| Weight | 3.08 kg/m |
Description
Similar to DIN ISO 606 (ex DIN 8187). Material: Special chain steel. High-quality simplex roller chains, pre-stretched according to DIN. Main dimensions according to DIN 8187, but with straight link plates, to use as conveyor chain or drive chain. Chains with an uneven number of links are supplied with inner links at both ends. Connecting links must be ordered separately. Temperature range: -20°C to +120°C. Other temperatures are possible if special grease is used. 1 Unit = 1 Meter = 39.37 Inches
