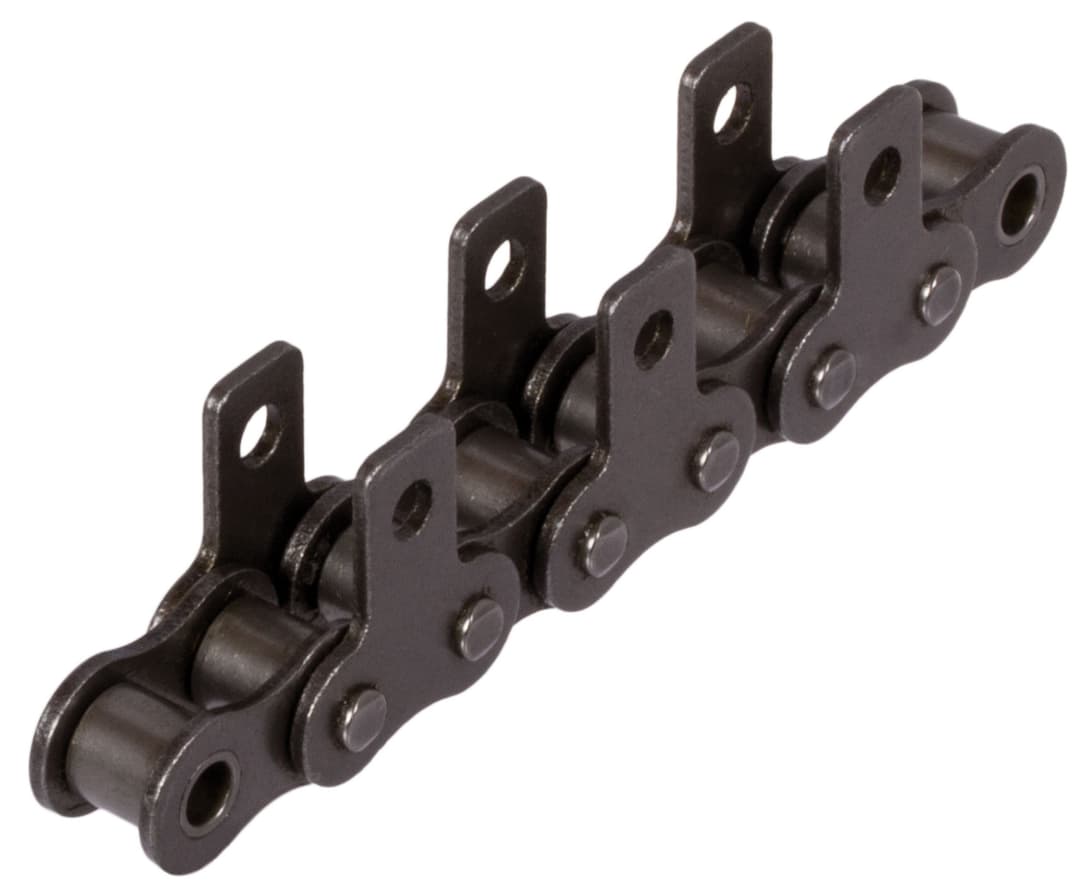

Roller chain with straight attachments 16 B-1-M1 2xp attachments slim version on both sides
Manufacturer part no.
Manufacturer part no.
Listed by MÄDLER at €70.15. Delivered to France, including shipping, VAT and any customs duty, it comes to about €102.18. Prices last checked on 2026-09-29.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €70.15 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €17.03 |
| Total delivered | €102.18 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

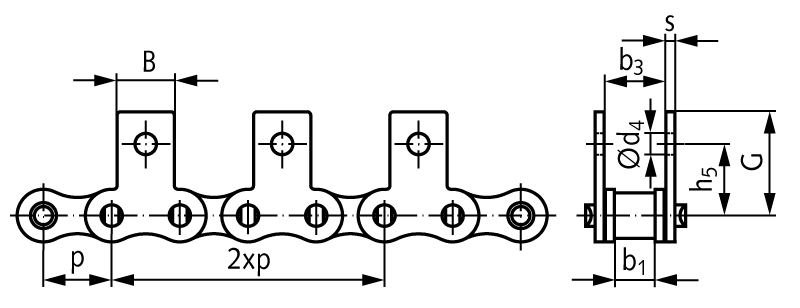

| Center distance from pin to hole at the attachme | 23 mm |
| Flansch width | 19.1 mm |
| Height of attachments up to pin | 31.8 mm |
| Hole diameters | 6.6 mm |
| Inner width | 17.02 mm |
| Inner width between outer links | 25.6 mm |
| Number of strands | 1 |
| Pitch | 25.4 mm |
| Thickness of attachment | 2.8 mm |
| Din iso no | 16 B-1 |
| Material | Steel |
| Pitch x inner width inch | 1″ x 17,02 mm |
| Surface | Blank |
| Version | Both sided |
| Weight |
Material: Special chain steels. According to DIN ISO 606 (ex DIN 8187). Attachment distance 2 x p (attachment at every outer link). Other attachment distances can be supplied at short notice. Different attachment sizes and special chains on request. Connecting links M1 have to be ordered separately. * The marked dimensions are not listed in the DIN. 1 Unit = 1 Meter = 39.37 Inches
Semantically close products available for less — check the specs match your need.
| 3.14 kg/m |
