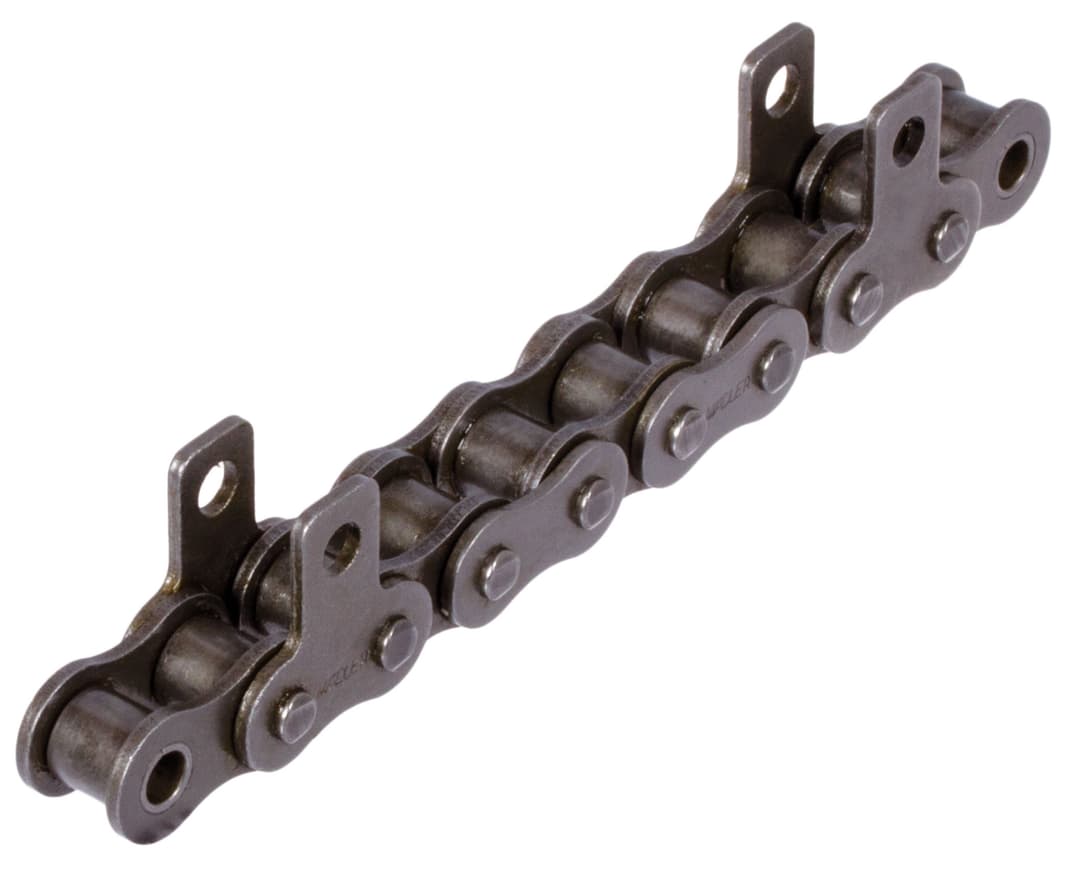

Roller chain with straight attachments 16 B-1-M1 6xp attachments slim version on both sides
Manufacturer part no. 10800036
$71.94≈ 62.48 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €62.48 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €15.50 |
| Total delivered | €92.98 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Center distance from pin to hole at the attachme | 23 mm |
| Flansch width | 19.1 mm |
| Height of attachments up to pin | 31.8 mm |
| Hole diameters | 6.6 mm |
| Inner width | 17.02 mm |
| Inner width between outer links | 25.6 mm |
| Number of strands | 1 |
| Pitch | 25.4 mm |
| Thickness of attachment | 2.8 mm |
| Din iso no | 16 B-1 |
| Material | Steel |
| Pitch x inner width inch | 1″ x 17,02 mm |
| Surface | Blank |
| Version | Both sided |
| Weight |
Description
Material: Special chain steels. According to DIN ISO 606 (ex DIN 8187). Attachment distance 6 x p (attachment at every third outer link). Other attachment distances can be supplied at short notice. Different attachment sizes and special chains on request. Connecting links 11/E have to be ordered separately. * The marked dimensions are not listed in the DIN. 1 Unit = 1 Meter = 39.37 Inches
