MÄDLERMÄDLER· Sprockets, Chains, Accessories

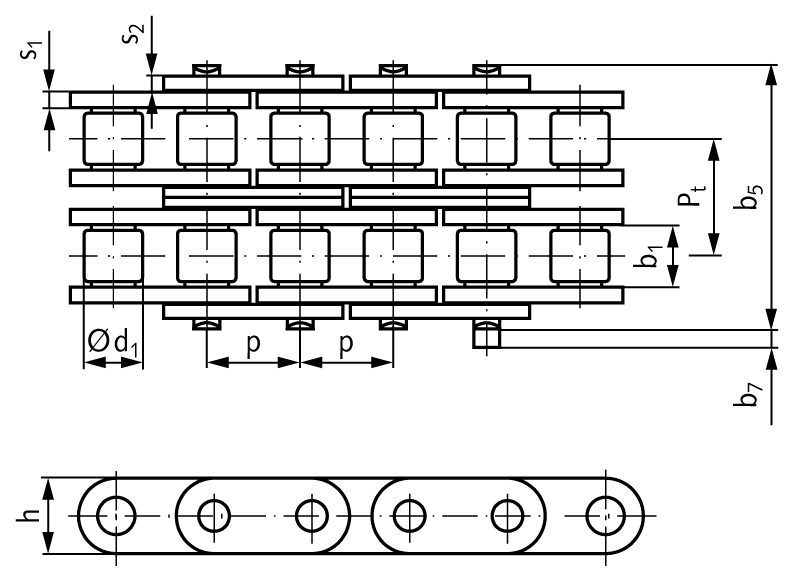

Double-strand roller chain DIN ISO 606 10 B-2-GL pitch 5/8×3/8″ with straight plates
Manufacturer part no. 12600000GL
$41.80≈ 36.30 €
In stock — 3 unitslead time 14 d
Estimated landed cost
| Item | €36.30 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.26 |
| Total delivered | €61.56 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Bolt diameter | 36.1 mm |
| Breaking load min. | 44 500 N |
| Number of strands | 2 |
| Plate height | 14.7 mm |
| Plate thickness | 1.7 mm |
| Projection over link | 4.1 mm |
| Rollerdiameter | 10.16 mm |
| Transverse pitch | 16.59 mm |
| Din iso no | 10 B-2-GL |
| Material | Steel |
| Pitch x inner width | 15.875 x 9.65 mm |
| Pitch x inner width inch | 5/8 x 3/8″ |
| Surface | Blank |
| Weight | 2.00 kg/m |
Description
Similar to DIN ISO 606 (ex DIN 8187). Material: Special chain steels. High-quality duplex roller chains, pre-stretched according to DIN. With straight link plates, to use as conveyor chain or drive chain. Chains are supplied with an uneven number of links, with inner links at both ends. Connecting links must be ordered separately. Temperature range: -20ºC to +120ºC. Other temperatures are possible if special grease is used. 1 Unit = 1 Meter = 39.37 Inches
