MÄDLERMÄDLER· Sprockets, Chains, Accessories

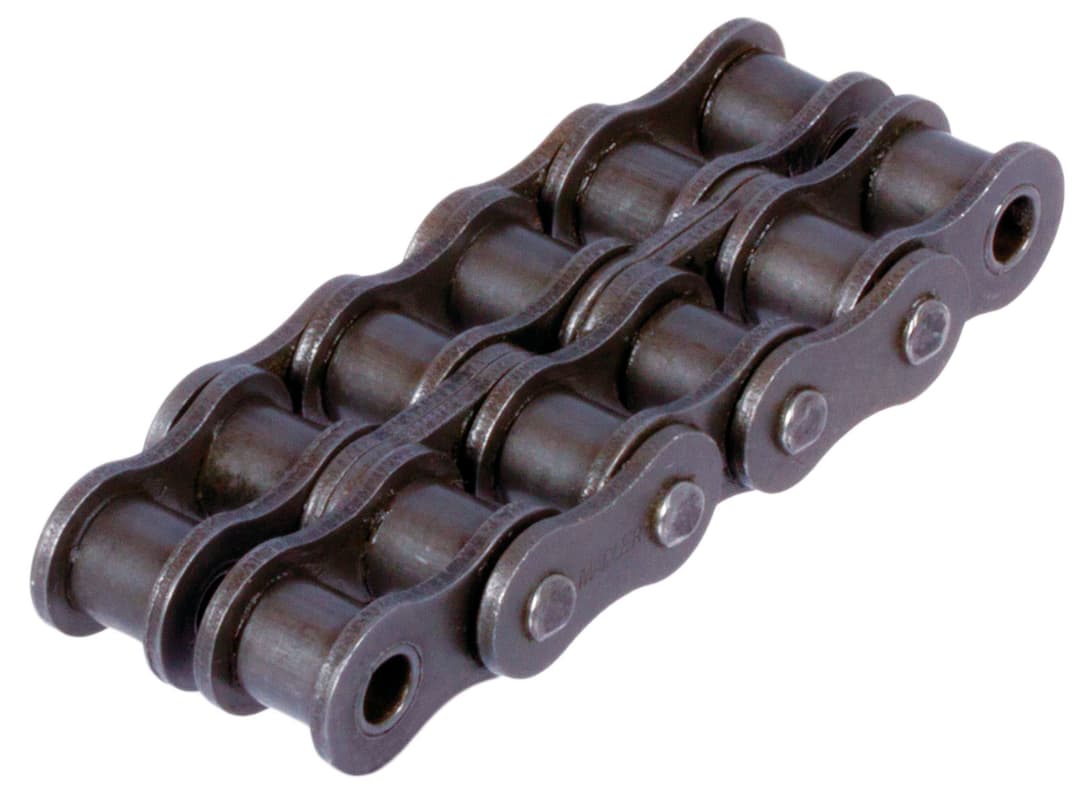

Double-strand roller chain DIN ISO 606 20 B-2 pitch 1 1/4×3/4″
Manufacturer part no. 12900000
$113.00≈ 98.13 €
In stock — 20 unitslead time 14 d
Estimated landed cost
| Item | €98.13 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €22.63 |
| Total delivered | €135.76 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

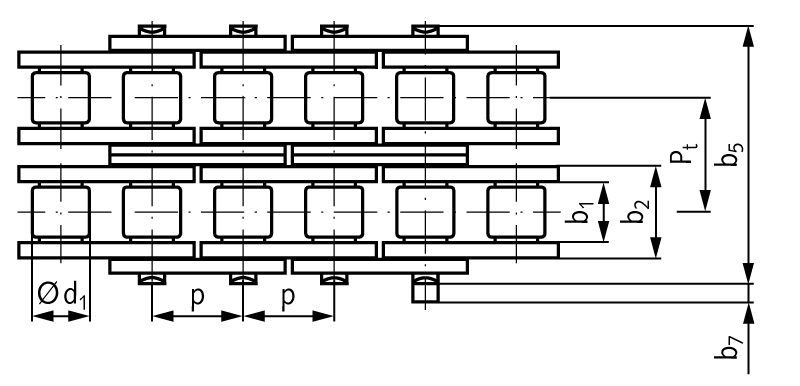

Specifications (automatically extracted)
Other characteristics
| Breaking load min. | 170 000 N |
| Inner width | 29.01 mm |
| Number of strands | 2 |
| Projection over link | 6.1 mm |
| Rollerdiameter | 19.05 mm |
| Total width over pin | 79.7 mm |
| Transverse pitch | 36.45 mm |
| Din iso no | 20 B-2 |
| Material | Steel |
| Pitch x inner width | 31.75 x 19.56 mm |
| Pitch x inner width inch | 1 1/4 x 3/4″ |
| Surface | Blank |
| Weight | 7.20 kg/m |
Description
According to DIN ISO 606 (ex DIN 8187). Material: Special chain-steels. High-quality duplex roller chains, pre-stretched according to DIN. Waisted link plates (size 06 with straight link plates). Chains with an uneven number of links are supplied with inner links at both ends. Connecting links must be ordered separately. Temperature range: -20° to 120°C. Other temparatures possible with special lubricants. 1 Unit = 1 Meter = 39.37 Inches
