MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings

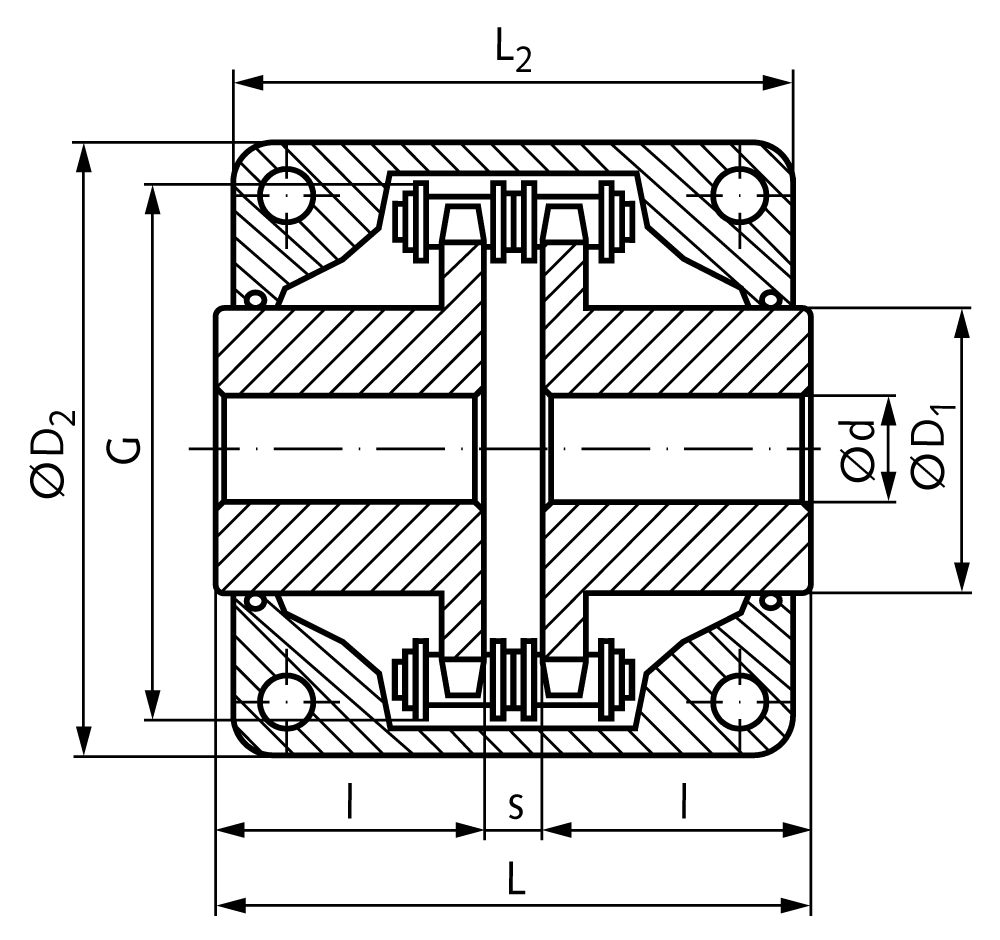

Chain coupling type 3012 06 B-2 12 teeth nominal torque 45 Nm with casing
Manufacturer part no. 14033012
$44.46≈ 38.61 €
In stock — 6 unitslead time 14 d
Estimated landed cost
| Item | €38.61 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.72 |
| Total delivered | €64.33 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 458.865 kg·cm |
| Weight | 530 g |
Other characteristics
| Bore | 12 mm |
| Hub diameter sprocket | 27.2 mm |
| Length of each sprocket | 29.5 mm |
| Length of housing | 63 mm |
| Max bore diameter | 16 mm |
| Max misalignment angle | 0.5 ° |
| Max misalignment axial | 0.2 mm |
| Max misalignment radial | 0.2 mm |
| Max outer diameter without housing | 45 mm |
| Max torque | 190 Nm |
| Mounting distance | 6 mm |
| Nominal torque | 45 Nm |
Description
Material: Chain wheels made of steel, with hardened teeth. Chain made from steel, with clip link. Casing made from aluminium, yellow painted, with o-rings. The couplings are delivered unassembled. The chain wheels are with pre-borehole. The chain and the chain connection link are unmounted. Before using, the casing has to be filled by the customer with grease. -Elastic transmission of torque. -Fast declutching by simply loosening the chain. -Shafts do not need to be exactly aligned. -No axial shaft clearance permissible. Temperature range: -30°C to +220°C.
