MÄDLERMÄDLER· Sprockets, Chains, Accessories

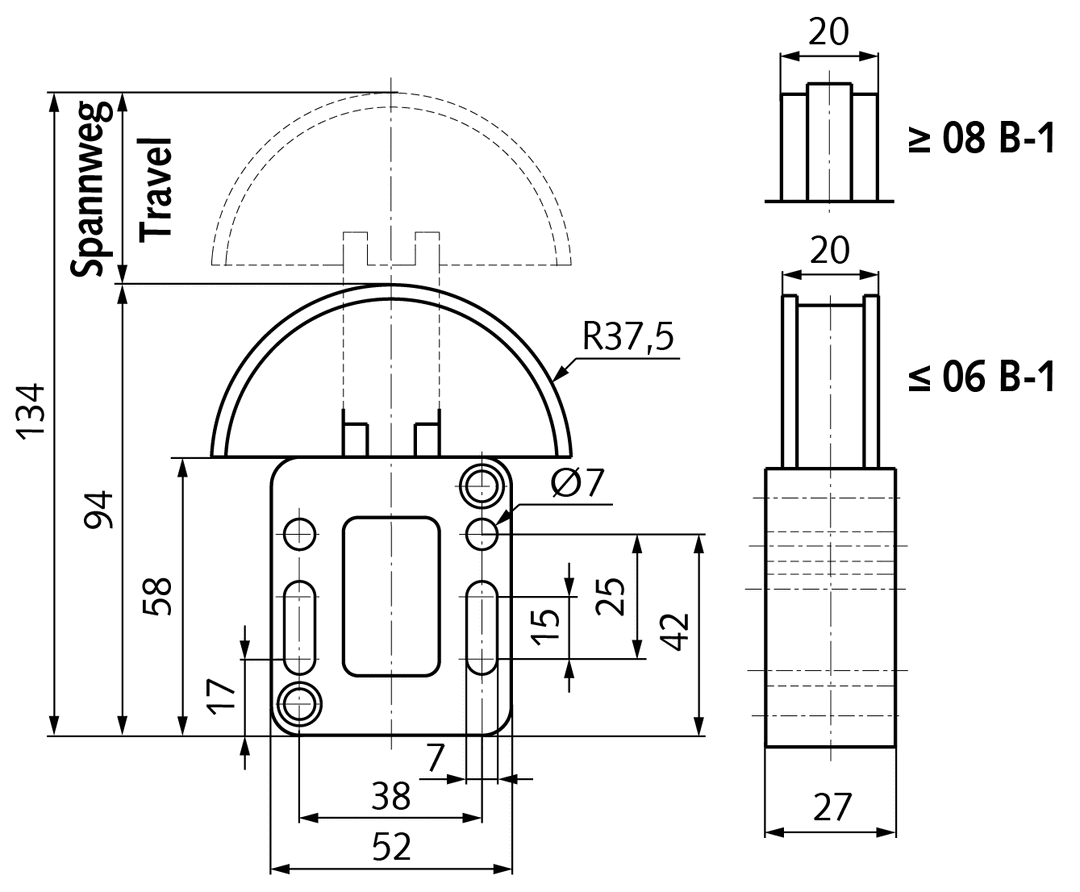

Chain tensioner SPANN-BOX® size 0 low tensioning force 06 B-2
Manufacturer part no. 14040121
$78.32≈ 68.02 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €68.02 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €16.60 |
| Total delivered | €99.62 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 130 g |
Other characteristics
| Number of strands | 2 |
| Din iso no | 06 B-2 |
| Material | Plastic (PE-UHMW) |
| Pitch | 3/8 x 7/32″ |
| Surface | Blank |
| Tensioning force | 58-32 N |
Description
Material: Housing from thermoplast. Chain rider from ultra-high-molecular polyethylene PE-UHMW. Screws and spring from stainless steel. These small, ready-to install tensioners enable noise reduction and wear reduction at chain drives. • With spiral, linear spring. On choice two tensioning forces. • With colored wear-off indicator: Green: o.k. Yellow: still o.k. Red: Tensioning force too low (below 32N or 60N). • Usable travel up to the end of the yellow range: About 32mm. Total travel about 40mm. • Interchangeable with similar parts of other suppliers. Temperature range: -20°C to +60°C (short time up to +80°C).
