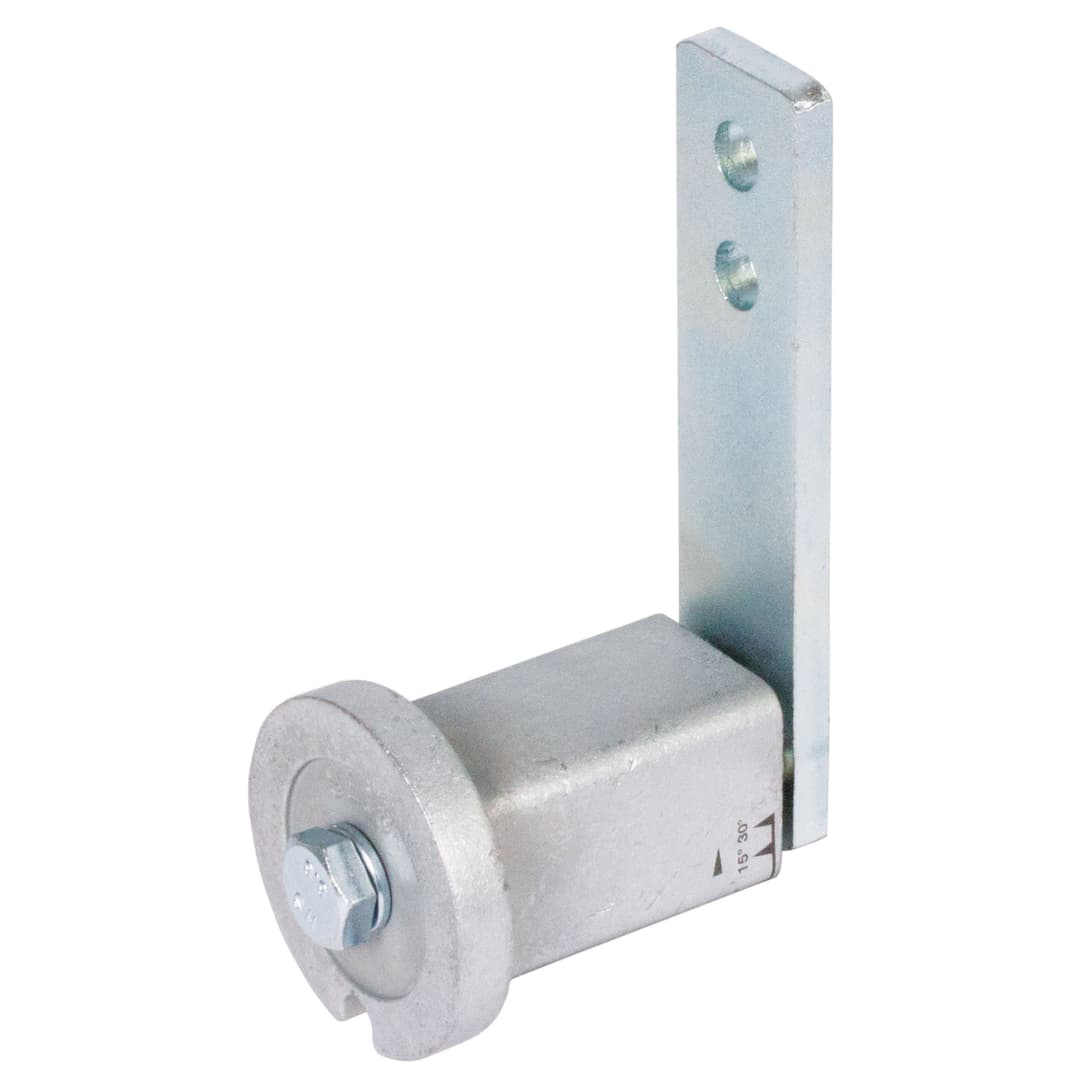

Name: Tensioning element size 0 normal force 96 N hard 128 N zinc plated and oil-resistent
Brand: MÄDLER
Price: 42.99 USD
Availability: InStock

Specifications (automatically extracted)

Mechanical

Weight

200 g

Other characteristics

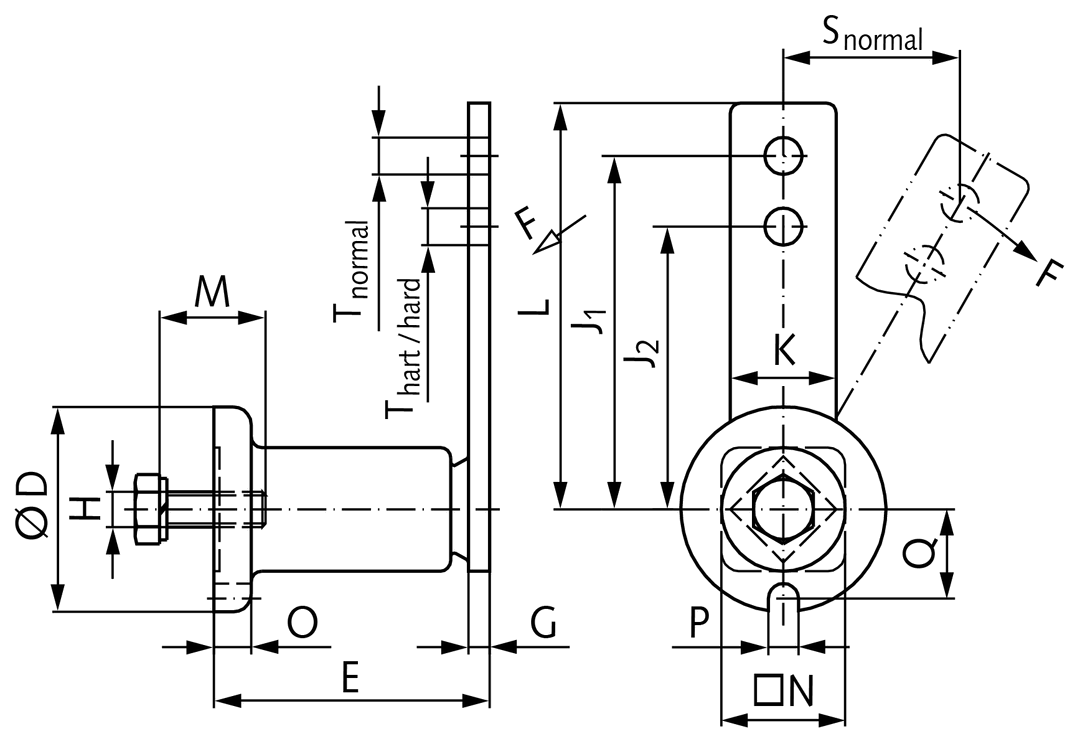

Center distance to mounting groove	16.5 mm
Center distance to t hard	60 mm
Center distance to t normal	80 mm
Flange diameter mounting side	35 mm
Flange width mounting side	6 mm
Hole diameter	8.5 mm
Length of tensioner lever	90 mm
Lever width	20 mm
Max tensioning area at t hard	30 mm
Max tensioning area at t normal	40 mm
Max tensioning force at t hard	128 N
Max tensioning force at t normal	96 N

Description

Material: Casing made of sintered steel or grey cast iron GG20, lever made of St52. The design of these tensioning elements is identical to the standard version, but they are zinc-plated and the synthetic spring elements are resistant to mineral oils. These components are especially suited for ‘outdoor’ applications, e.g. for construction machinery or for use inside the oilbath of a gearbox. The tensioning elements are marked with a yellow dot on the lever. Can be used for both tensioning directions. Temperature range: -30°C to -90°C.
