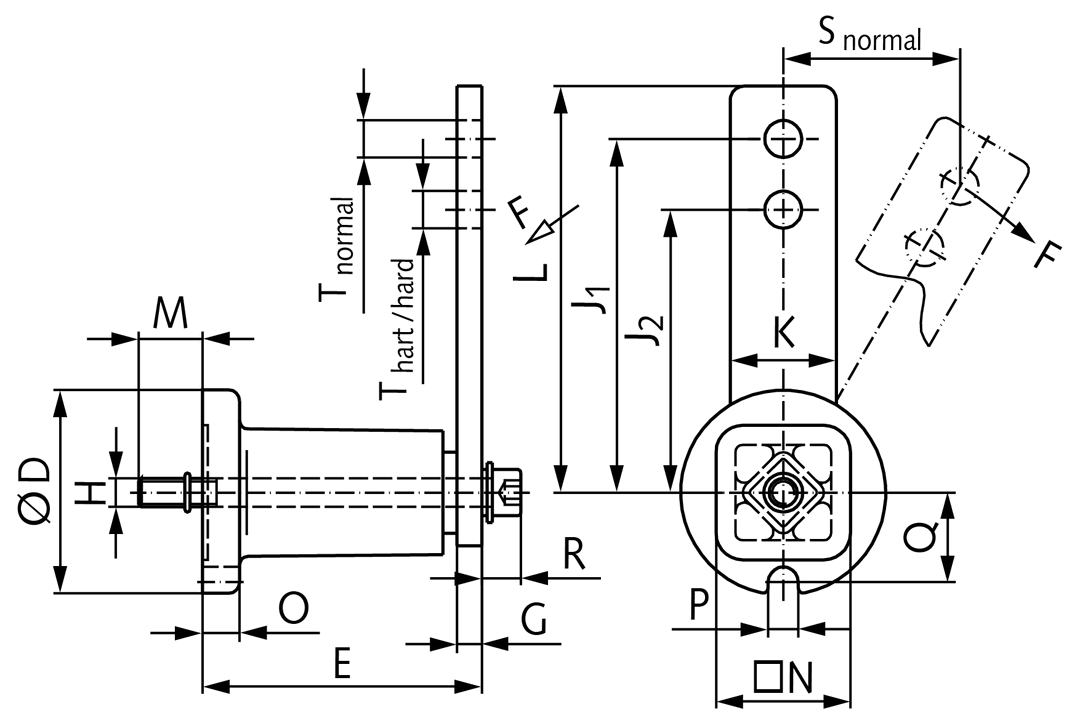

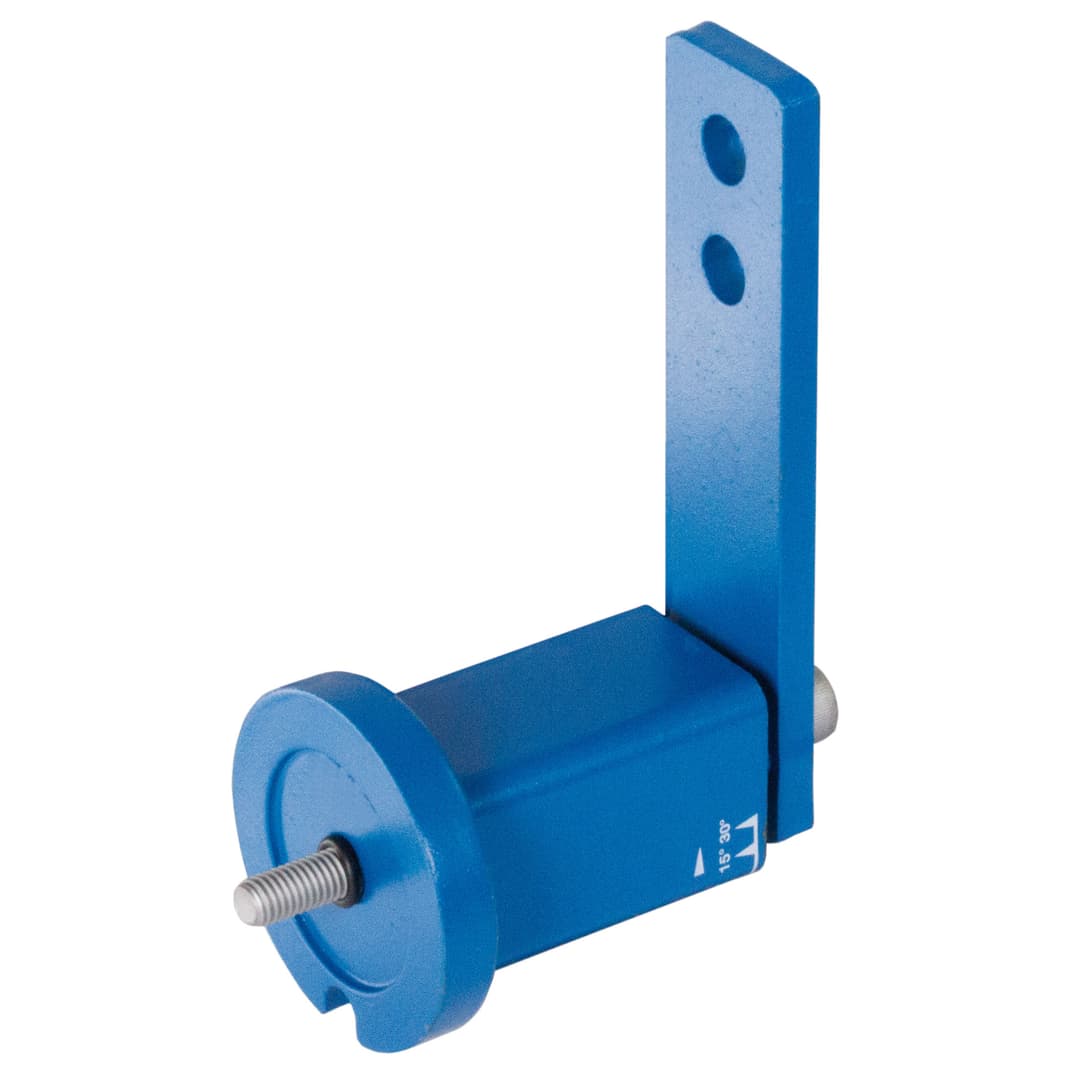

Tensioning element for front mounting size 3 normal force 810 N hard 1050 N
Manufacturer part no. 14080307
$149.58≈ 129.90 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €129.90 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €28.98 |
| Total delivered | €173.88 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.85 kg |
Other characteristics
| Center distance to mounting groove | 34.3 mm |
| Center distance to t hard | 100 mm |
| Center distance to t normal | 130 mm |
| Flange diameter mounting side | 78 mm |
| Flange width mounting side | 15 mm |
| Hole diameter | 12.5 mm |
| Length of tensioner lever | 155 mm |
| Lever width | 50 mm |
| Max tensioning area at t hard | 50 mm |
| Max tensioning area at t normal | 65 mm |
| Max tensioning force at t hard | 1 050 N |
| Max tensioning force at t normal | 810 N |
Description
Material: Housing up to Ø 78 mm made of sintered steel, over Ø 78 mm made of grey cast iron GG20, lever made of St52. These tensioning elements are in general identical to the standard version. For easier mounting they are fixed from the lever side using an in-and-out screw. A thread has to be cut in the machine housing. The supplied screw is secured for transport with an O-Ring. Can be used for both tensioning directions.
