MÄDLERMÄDLER· Sprockets, Chains, Accessories

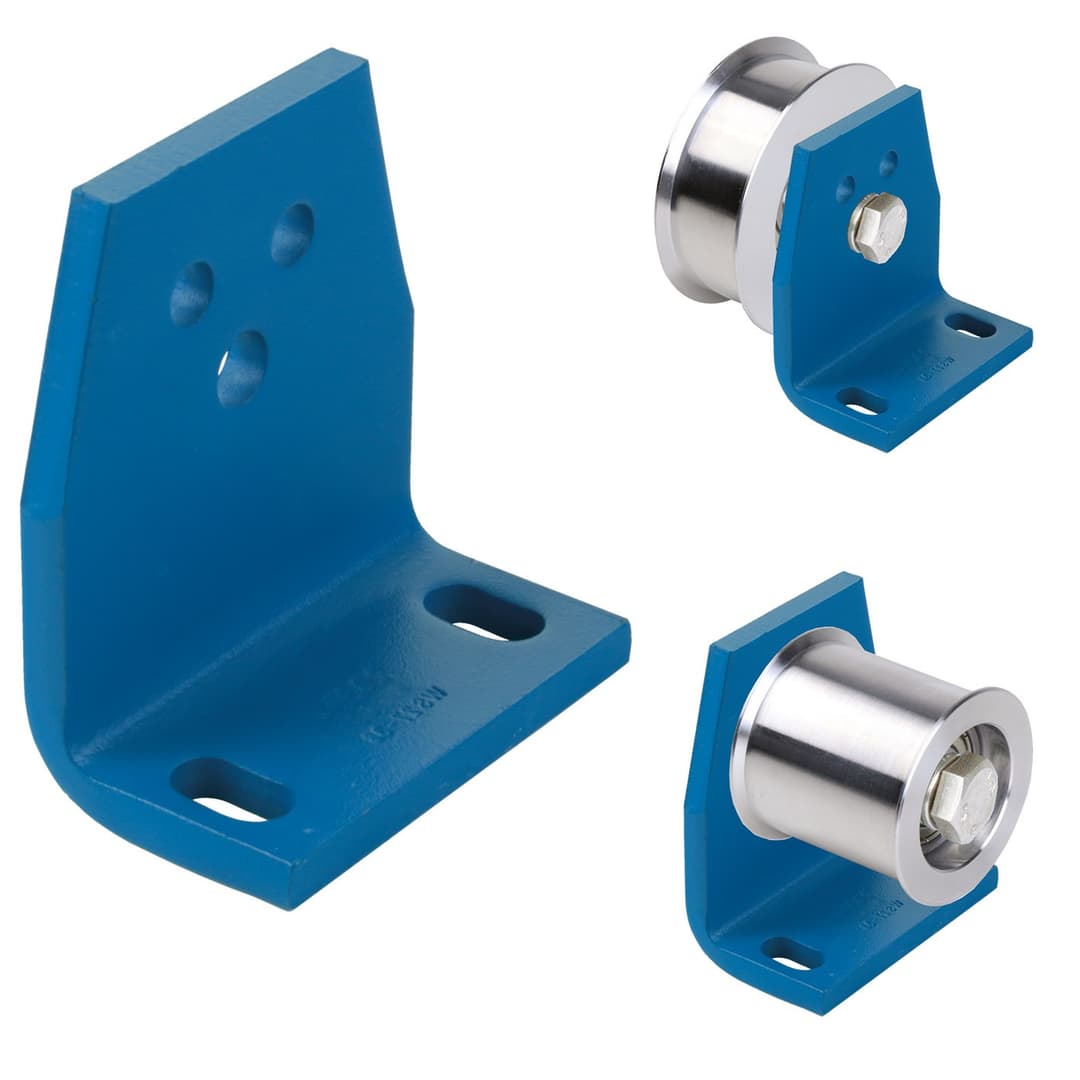

support bracket for tensioner size 4 bore A=20.5mm
Manufacturer part no. 14080402
$95.76≈ 83.16 €
On backorderlead time 14 d
Estimated landed cost
| Item | €83.16 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €19.63 |
| Total delivered | €117.79 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 940 g |
Other characteristics
| Center distance to center hole | 66 mm |
| Center distance to upper holes | 85 mm |
| Distance to axle center of long hole | 15 mm |
| For size tensioning element | 4 |
| Hole diameter of center hole | 20.5 mm |
| Hole diameter of upper holes | 20.5 mm |
| Hole distance between long holes | 80 mm |
| Hole distance between upper holes | 35 mm |
| Length of long hole | 24 mm |
| Length to long hole | 21 mm |
| Long hole width | 14 mm |
| Thickness | 8 mm |
Description
Material: Steel, blue painted. This support enabels an easy mounting of the tensioning element or idler wheel to the machine. The hole A is for fastening the tensioner with it´s central screw. The mounting can be done at the front side or back side of the support. For any other purposes, the both holes B can be used to fix other parts instead of a tensioner.
