MÄDLERMÄDLER· Timing Belts and Pulleys
Tensioning roller diameter 30mm
Manufacturer part no. 14087200
$38.13≈ 33.11 €
In stock — 6 unitslead time 14 d
Estimated landed cost
| Item | €33.11 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.62 |
| Total delivered | €57.73 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

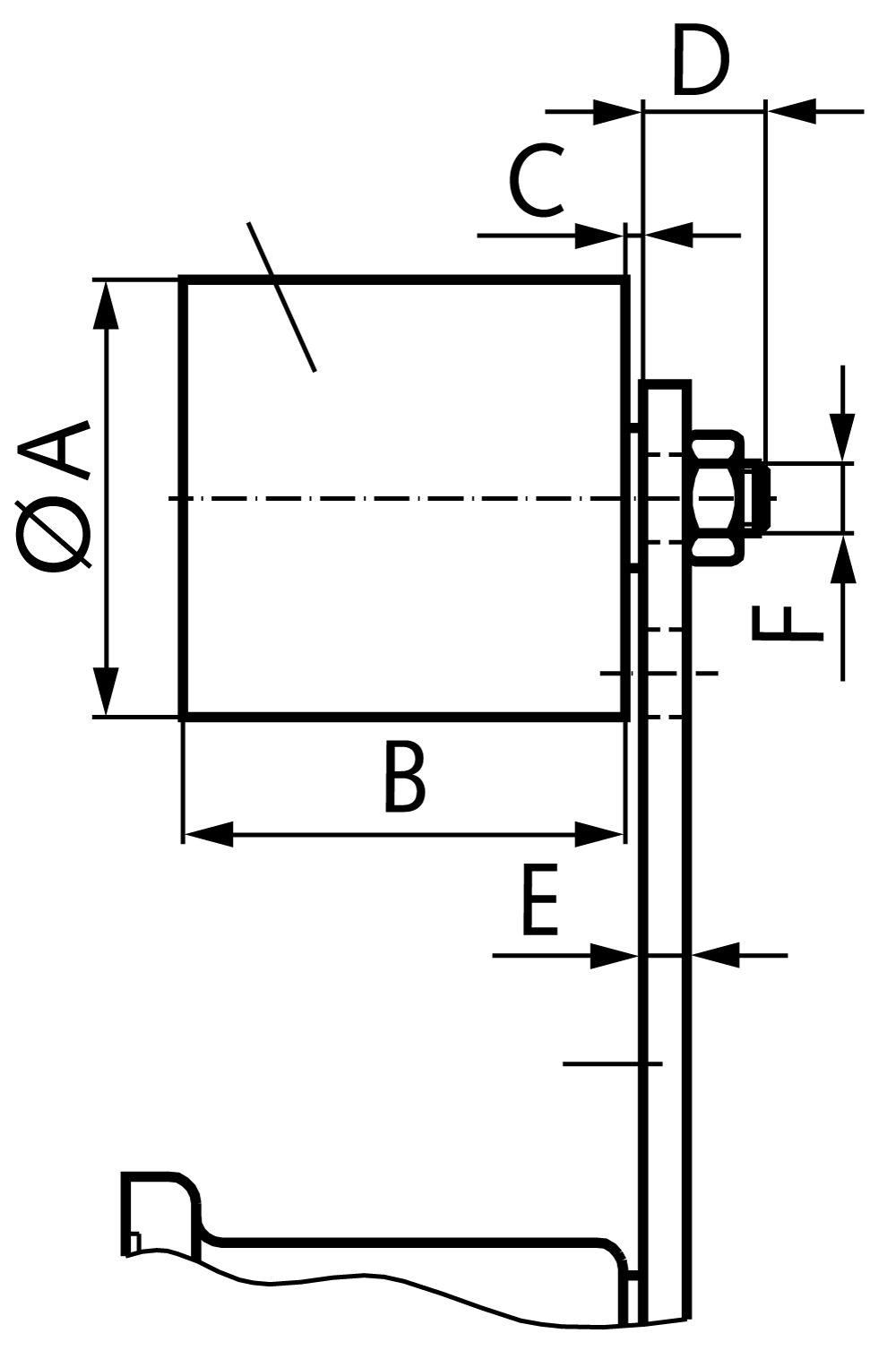

Specifications (automatically extracted)
Mechanical
| Weight | 80 g |
Other characteristics
| Distance between tensioning roller and tensionin | 2 mm |
| Max thickness of tensioner lever | 5 mm |
| Outer diameter | 30 mm |
| Overhang incl thickness of tensioner lever | 14 mm |
| Suitable tensioner | 14 080 000 |
| Width of support surface | 35 mm |
| Material | Plastic / Steel |
| Max speed | 8000 min-1 |
| Surface | Blank |
| Thread size | M 8 mm |
Description
Material: Roller from plastic PA 6. Ball bearings DIN 625 from bearing steel. Mounted on a suitable tensioning element, the tensioning roller becomes a ready-to-mount belt tensioner or on its own it can be used as idler. It runs on two permanently lubricated 2-Z ball bearings. Temperature range: -35º to +100ºC.
