MÄDLERMÄDLER· Timing Belts and Pulleys

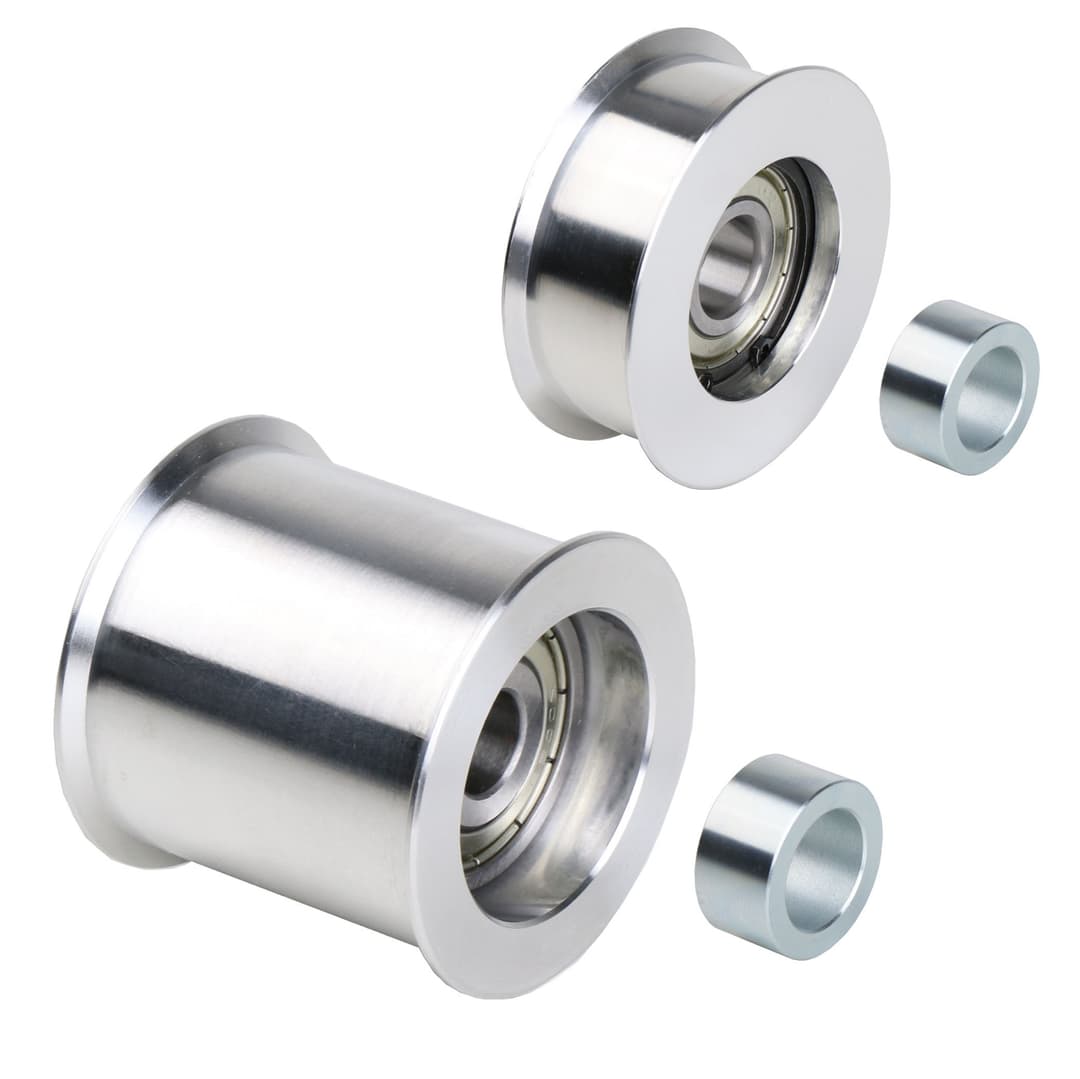

tensioning roller – idler TS nominal size ø60mm x 31mm with separate distance bush for easy assembly
Manufacturer part no. 14088602
$47.92≈ 41.62 €
In stock — 24 unitslead time 14 d
Estimated landed cost
| Item | €41.62 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €11.32 |
| Total delivered | €67.94 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 366 g |
Other characteristics
| Part no of suitable bushing | 14 081 212 |
| Weight of bushing | 18.9 g |
| Bearing | 2 x 6301-2Z |
| Designation | TS 60-31 |
| Material | Aluminum |
| Surface | Blank |
Description

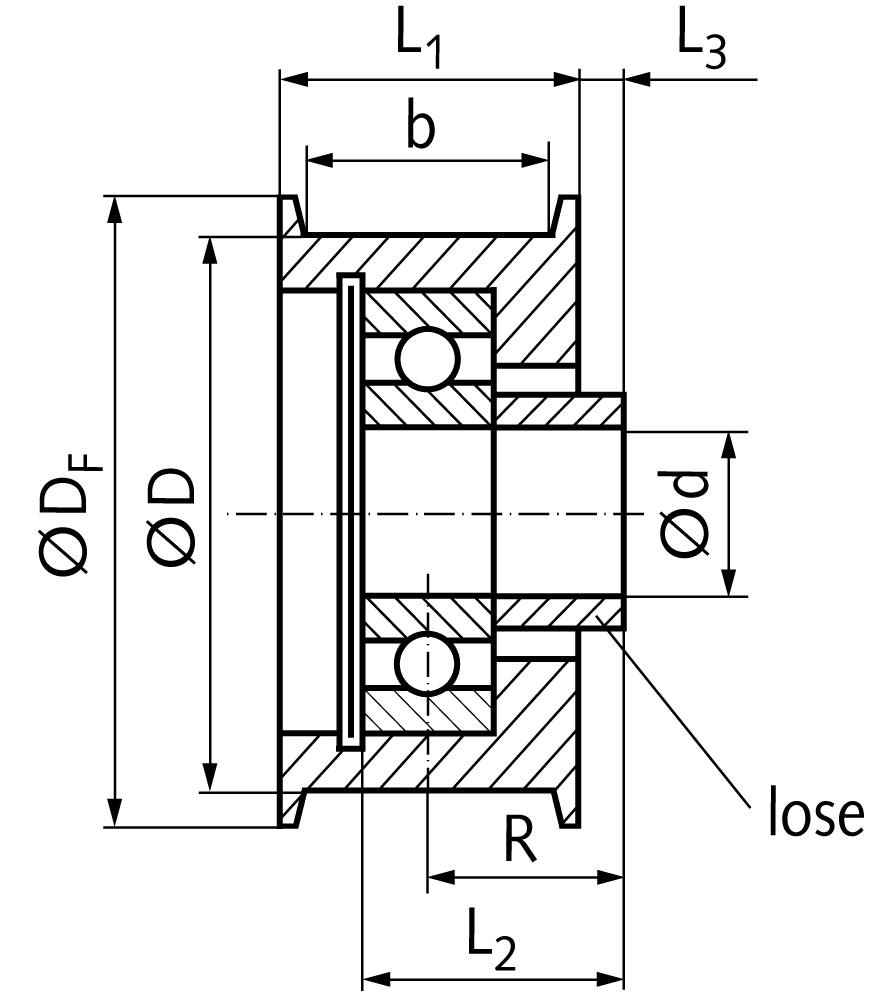

Material: Aluminium similar to EN AW2017A, one-piece, with turned flanges. Distance bushes and ball bearings DIN 625 from steel. Mounted on a suitable tensioning element, the tensioning roller becomes a ready-to-mount belt tensioner or, on its own, it can be used as an idler. It runs on permanently lubricated 2Z ball bearings. One loose, zinc-plated distance bush is included in the delivery (in the drawing on the right side). Support, screw set and tensioning element have to be ordered separately.
