MÄDLERMÄDLER· Locking Assemblies, Clamping Bushes, Taper Bushes
adaptor for taper bush 1610 outside diameter 70mm material cast iron
Manufacturer part no. 14090164
$19.17≈ 16.65 €
On backorderlead time 14 d
Estimated landed cost
| Item | €16.65 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.33 |
| Total delivered | €37.98 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)

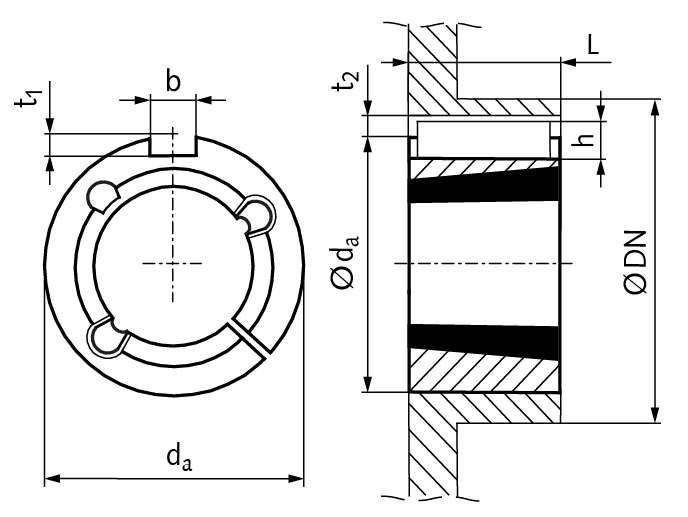

Mechanical
| Weight | 240 g |
Other characteristics
| Depth of keyway adaptor | 4 mm |
| Depth of keyway hub | 4.3 mm |
| For clamp bushing | 1 610 |
| Min hub diameter for cast iron | 115 mm |
| Min hub diameter for steel | 95 mm |
| Outer diameter | 70 mm |
| Total length | 25 mm |
| Key cross section | 10 x 8 mm |
| Material | Grey cast iron (A48) |
| Surface | Blank |
Description
Material: Grey cast iron GG25. Hub for fixing a sprocket or similar parts with a low priced taper bush onto a shaft. The sprocket must get a center hole Ø D (recommended tolerance: H8) and a special keyway. Then, the taper bush can get inserted into the adaptor and both parts can get inserted into the wheel. The taper bush, the sprocket and the key have to be ordered separately. * Special keyway size. ** Feather key not like DIN. In this youtube video we show the mounting and demounting of taper bushes: Video clip (3.5 Minutes)
