MÄDLERMÄDLER· Timing Belts and Pulleys

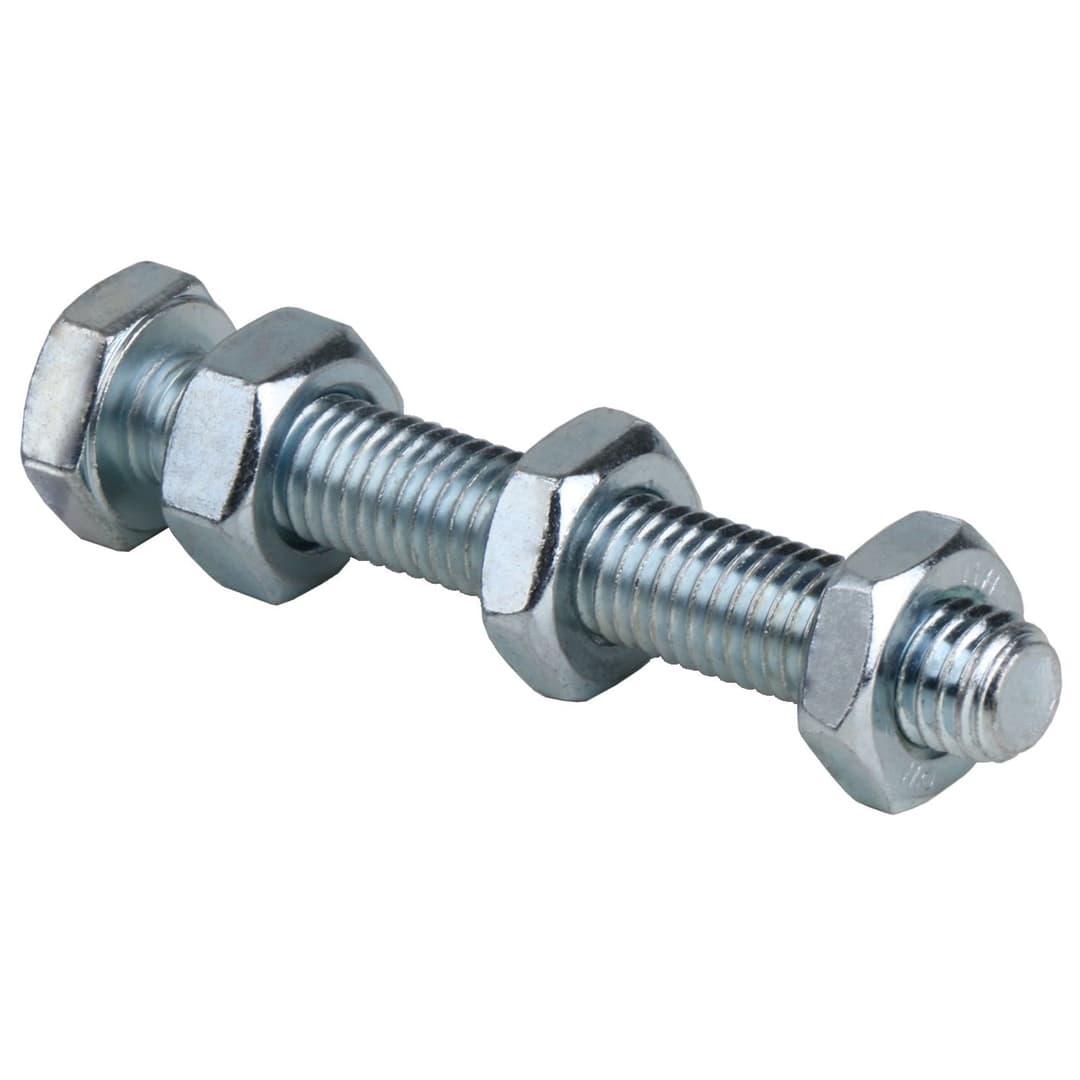

Screw set for tensioning roller TS M10x55 steel zinc plated
Manufacturer part no. 140910055
$1.95≈ 1.69 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €1.69 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.34 |
| Total delivered | €20.03 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 62 g |
Other characteristics
| For article tensioning roller | 14 088 401 |
| Size | 1 |
| With article tensioning element | 14 080 100 |
| Material | Steel |
| Surface | Zinc-plated |
| Type | TS 40-14 |
Description

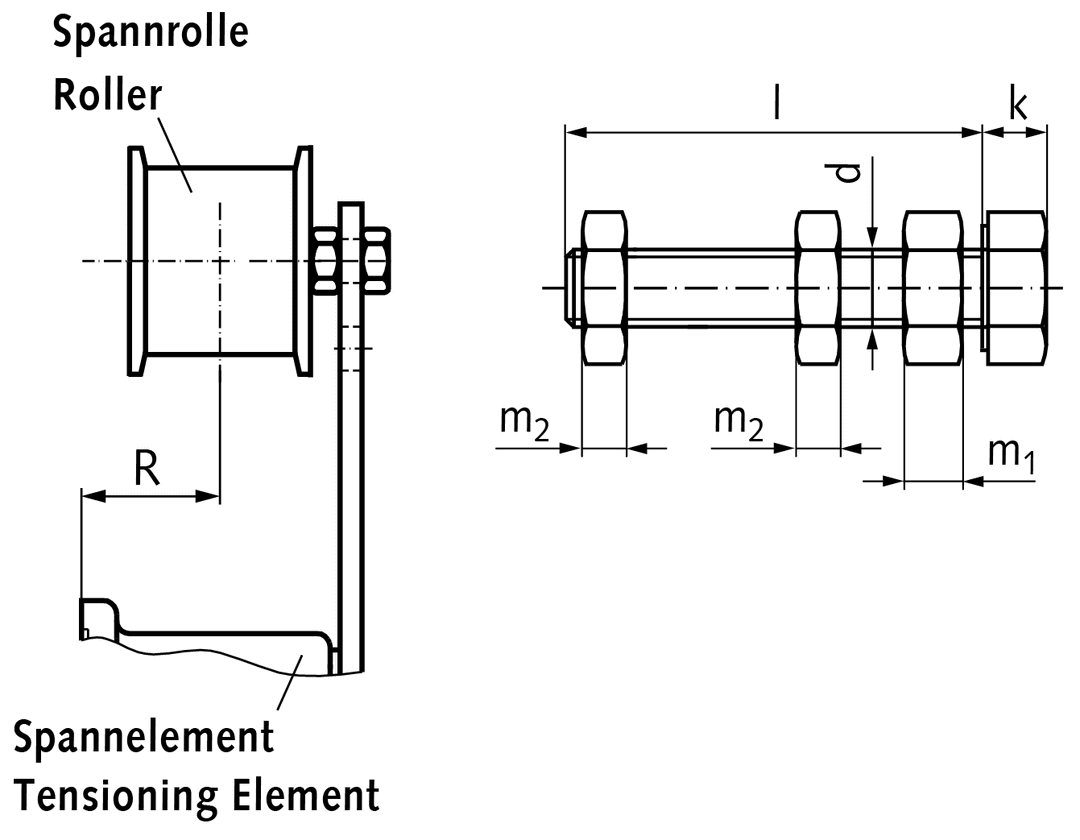

Material: Steel, zinc-plated. Screw strength 8.8, nuts strength class 8. The set consists of one screw ISO 4017 / DIN 933, one normal nut DIN 934 and two thin nuts DIN 936. For mounting a tensioning roller TS at a tensioning element, at a support or at a customer´s mounting surface. The alignment can be adjusted (dimension R at our tenioning elements). Tensioning roller TS, screw set and and tensioning element have to be ordered separately. 1) Screw M5 with 3 normal nuts DIN 934, for support size 0, product no. 14080001; adjusting range 9 mm. 2) Mounting without the loose distance bush, which is icluded in the delivery of the tensioning roller set.
