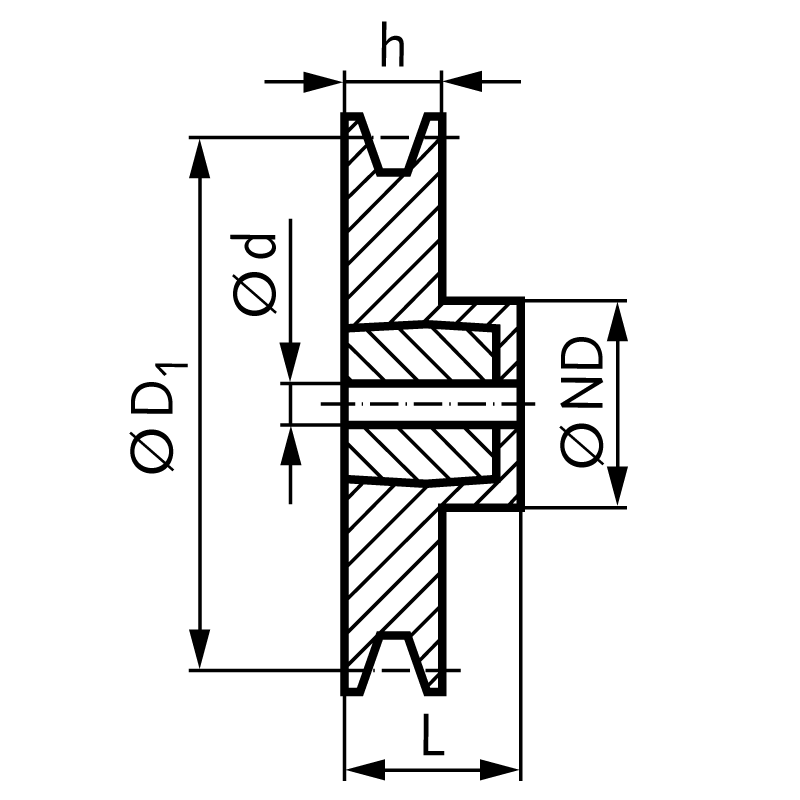

V-belt pulley material aluminium profile XPZ, SPZ and Z (10) 1 groove nominal diameter 56mm
Manufacturer part no. 15010300
$43.53≈ 38.78 €
Price summary
Listed by MÄDLER at €38.78. Delivered to France, including shipping, VAT and any customs duty, it comes to about €64.54. Prices last checked on 2026-10-04.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
In stock — 43 unitslead time 14 d
Estimated landed cost
| Item | €38.78 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.76 |
| Total delivered | €64.54 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 100 g |
Other characteristics
| Hub diameter approx | 35 mm |
| Hub length approx | 28 mm |
| Max bore diameter | 22 mm |
| Nominaldiameter | 56 mm |
| Number of grooves | 1 |
| Width of pulley | 16 mm |
| Material | Aluminum |
| Pilot hole approx | Without bore mm |
| Profile | XPZ/SPZ/Z(10) |
| Remark | * 1) |
| Surface | Blank |
Description
Material: Special Light Alloy with Cast-Iron core. V-Belt Pulleys with nominal diametre including 250 mm are supplied as solid pulley, from 280 mm Ø as spoked pulley. 1) can only be used with standard V-belt DIN 2215 . * without cast-iron hub reinforcement.
