V-belt pulley material cast iron for taper-bush 2012 profile XPZ, SPZ and Z (10) 3 grooves nominal diameter 160mm
Manufacturer part no. 15131600
$60.55≈ 52.58 €
On backorderlead time 14 d
Estimated landed cost
| Item | €52.58 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €13.52 |
| Total delivered | €81.10 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 3.9 kg |
Other characteristics
| Max bore diameter | 50 mm |
| Min bore diameter | 12 mm |
| Number of grooves | 3 |
| Pulley width | 40 mm |
| Reference diameter | 160 mm |
| Taper bushing type | 2 012 |
| Total length | 32 mm |
| Type | 2 |
| Design | V |
| Material | Grey cast iron (A48) |
| Profile | XPZ/SPZ/Z(10) |
| Relation | one sided set back 8 |
| Surface | Blank |
Description

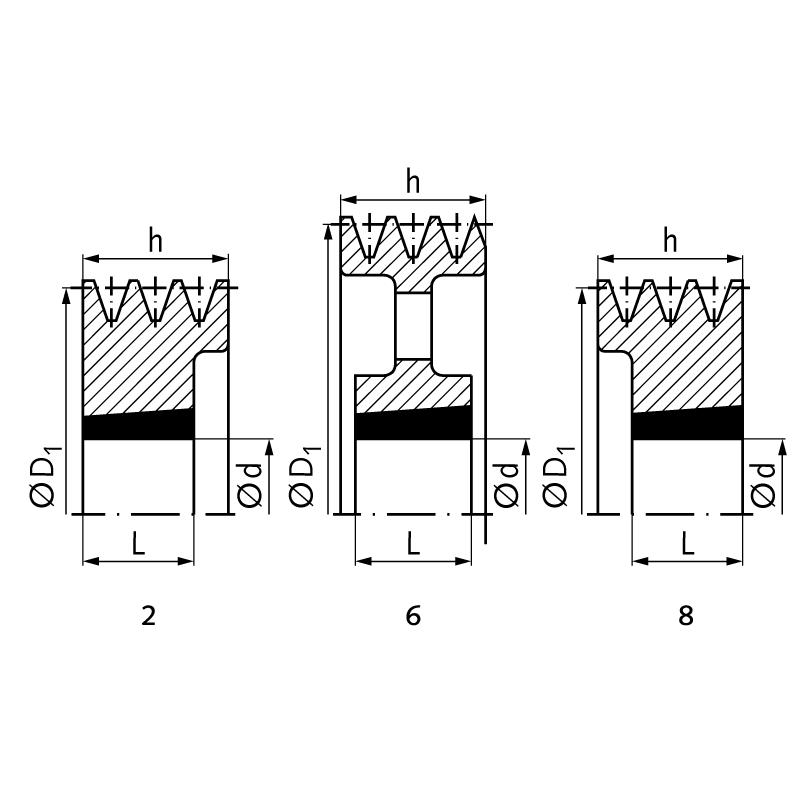

Material: Grey cast iron EN-GJL250. V-Belt Pulleys for Taper Clamping Bushes. To be used with v-belts in accordance with DIN 2215 and DIN 7753. Ready-to-install, for use with taper-bushings. Taper-bushings are available for varios shaft diameters and have to be ordered seperately. Design: A = Spoked pulley. B = dished pulley. V = solid pulley. Type: See drawing above. Relation of hub to rim: bü = flush. rü = set back. v = projecting. Other diameters oder larger number of grooves can be delivered at short notice, on request. In this youtube video we show the mounting and demounting of taper bushes: Video clip (3.5 Minutes)
