MÄDLERMÄDLER· Timing Belts and Pulleys

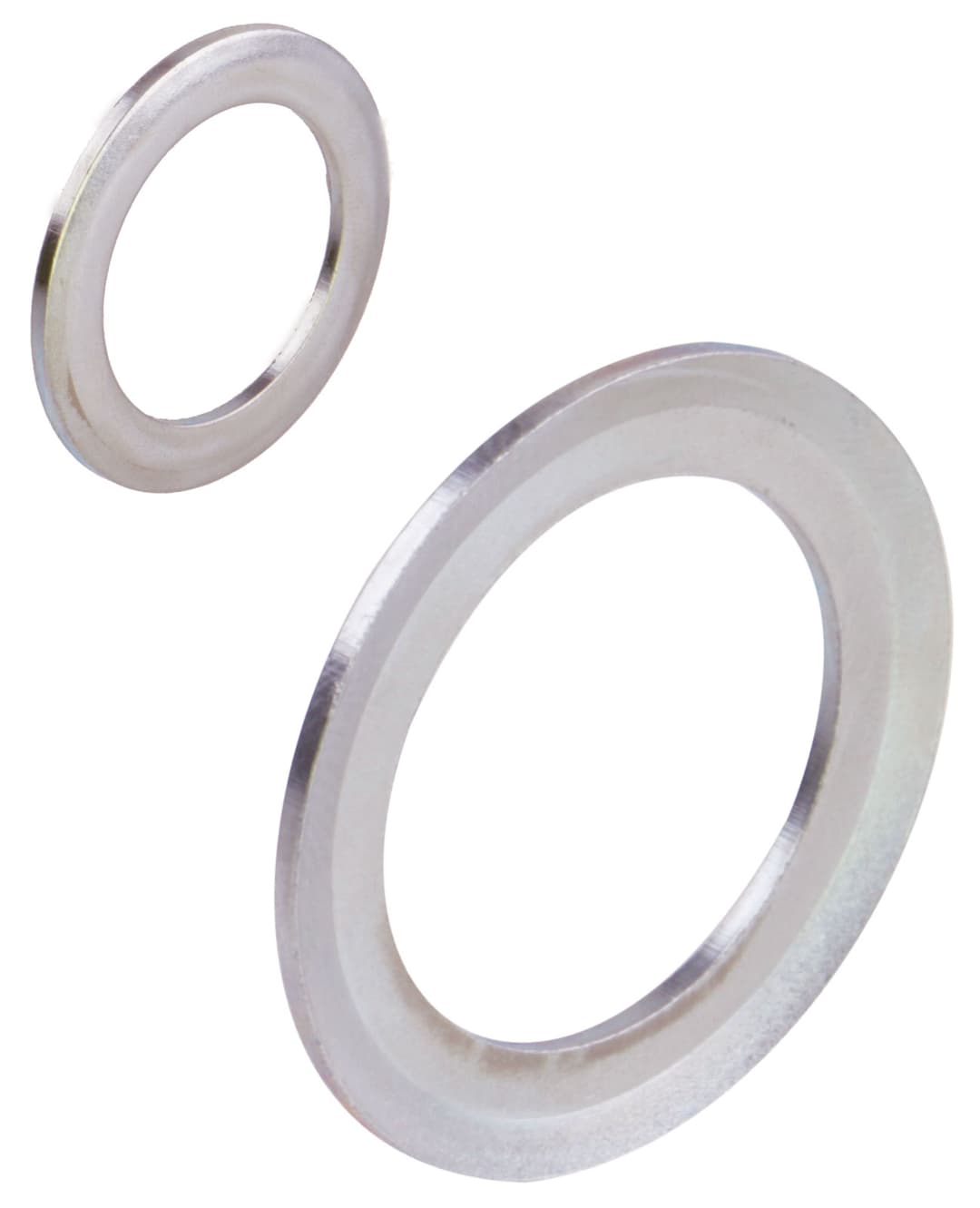

Flange for timing belt pulley thickness 1mm Ø 19.5 x 17.5 x 12mm steel zinc plated
Manufacturer part no. 16010200
$2.74≈ 2.38 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €2.38 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.48 |
| Total delivered | €20.86 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1 g |
| Dimensions | 5x12mm |
Other characteristics
| Inner diameter | 12 mm |
| Kink point diameter | 17.5 mm |
| Outer diameter | 19.5 mm |
| Thickness | 1 mm |
| Material | Steel |
| Surface | Zinc-plated |
Description
Material: Steel, zinc-plated. Flanges for timing belt pulleys, for custom-made parts or serial production. For economical reason, normally the flanges are mounted only at the smaller pulley. Often, the flanges get fixed by beading: On a turntable, with a rolling tool, hub material will get shaped over the flange. A beading material overhang of 0.5mm is recommended. Sold by piece. Other sizes are available at short delivery time.
