MÄDLERMÄDLER· Timing Belts and Pulleys

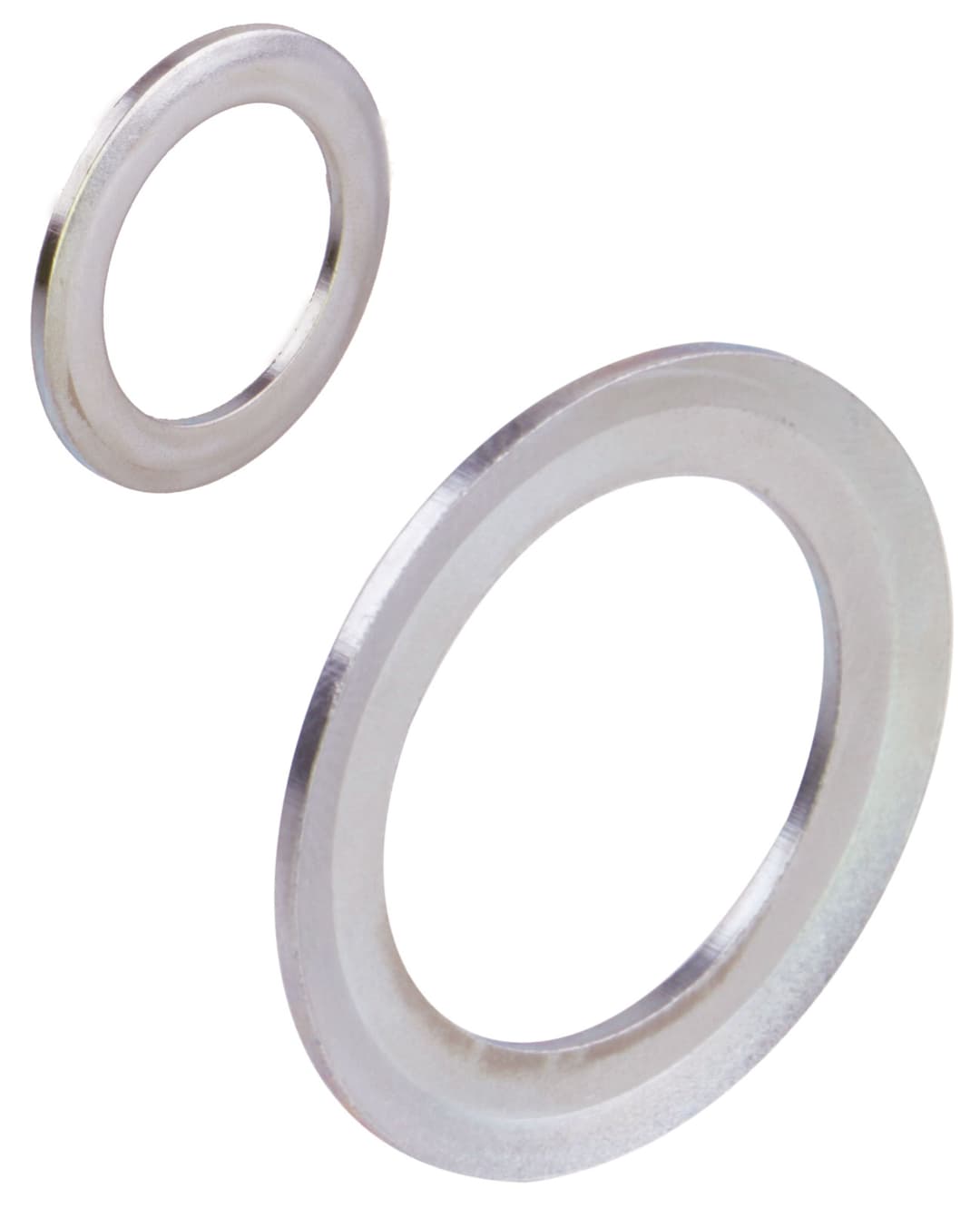

Flange for timing belt pulley thickness 1mm Ø 66 x 61.5 x 52mm stainless steel
Manufacturer part no. 16019216
$9.31≈ 8.09 €
On backorderlead time 14 d
Estimated landed cost
| Item | €8.09 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.62 |
| Total delivered | €27.71 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 10 g |
| Dimensions | 5x52mm |
Other characteristics
| Inner diameter | 52 mm |
| Kink point diameter | 61.5 mm |
| Outer diameter | 66 mm |
| Thickness | 1 mm |
| Material | Stainless steel (304) |
| Surface | Blank |
Description
Material: Stainless steel 1.4301. Flanges for timing belt pulleys, for custom-made parts or serial production. For economical reason, normally the flanges are mounted only at the smaller pulley. Often, the flanges get fixed by beading: On a turntable, with a rolling tool, hub material will get shaped over the flange. A beading material overhang of 0.5mm is recommended. Sold by piece. Other sizes are available at short delivery time.
