MÄDLERMÄDLER· Timing Belts and Pulleys

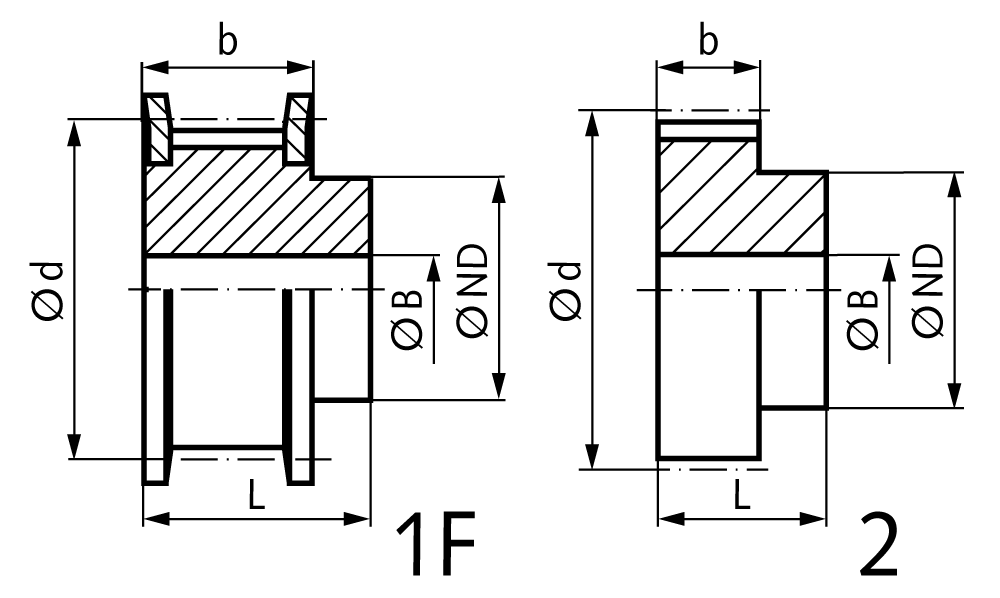

Timing belt pulley T5 material aluminium 48 teeth for belt width 32mm 46 T5/48-0
Manufacturer part no. 16214800
$38.17≈ 33.15 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €33.15 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.63 |
| Total delivered | €57.78 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 529 g |
Other characteristics
| Belt width | 32 mm |
| Hub diameter | 50 mm |
| No of teeth | 48 |
| Outer diameter of pulley | 75.55 mm |
| Pilot hole | 8 mm |
| Pitch circle diameter | 76.39 mm |
| Tooth width | 40 mm |
| Total length | 46 mm |
| Version | 2 |
| Material | Aluminum |
| Profile | T5 |
| Surface | Blank |
| Type | 46 T5/48-0 |
Description
Material: Aluminium similar EN AW2017A. Flanges zinc-plated steel.
