MÄDLERMÄDLER· Timing Belts and Pulleys
Timing belt pulley T5 material aluminium 10 teeth for belt width 10mm 21 T5/10-2
Manufacturer part no. 16221000
$8.63≈ 7.49 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €7.49 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.50 |
| Total delivered | €26.99 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 12 g |
Other characteristics
| Belt width | 10 mm |
| Hub diameter | 8 mm |
| No of teeth | 10 |
| Outer diameter of flanges | 19.5 mm |
| Outer diameter of pulley | 15.08 mm |
| Pitch circle diameter | 15.92 mm |
| Tooth width | 15 mm |
| Total length | 21 mm |

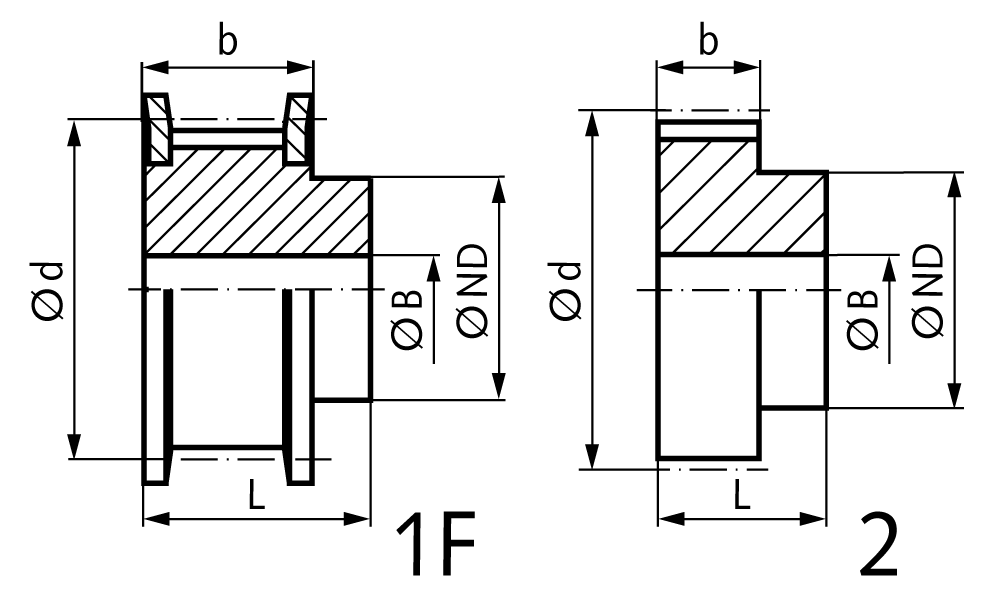

| Version | 1 F |
| Material | Aluminum |
| Pilot hole | Without bore mm |
| Profile | T5 |
| Surface | Blank |
| Type | 21 T5/10-2 |
Description
Material: Aluminium similar EN AW2017A. Flanges zinc-plated steel.
