MÄDLERMÄDLER· Timing Belts and Pulleys
Timing belt pulley from steel T10 36 teeth belt width 25mm for taper bush 2012
Manufacturer part no. 16477336
$45.05≈ 39.12 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €39.12 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.82 |
| Total delivered | €64.94 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.503 kg |
Other characteristics
| Belt width | 25 mm |
| Bore max. | 50 mm |
| Bore min. | 12 mm |
| Clamp bushing type | 2 012 |
| No of teeth | 36 |
| Outer diameter of flanges | 119 mm |
| Outer diameter pulley | 112.73 mm |
| Pitch circle diameter | 114.59 mm |

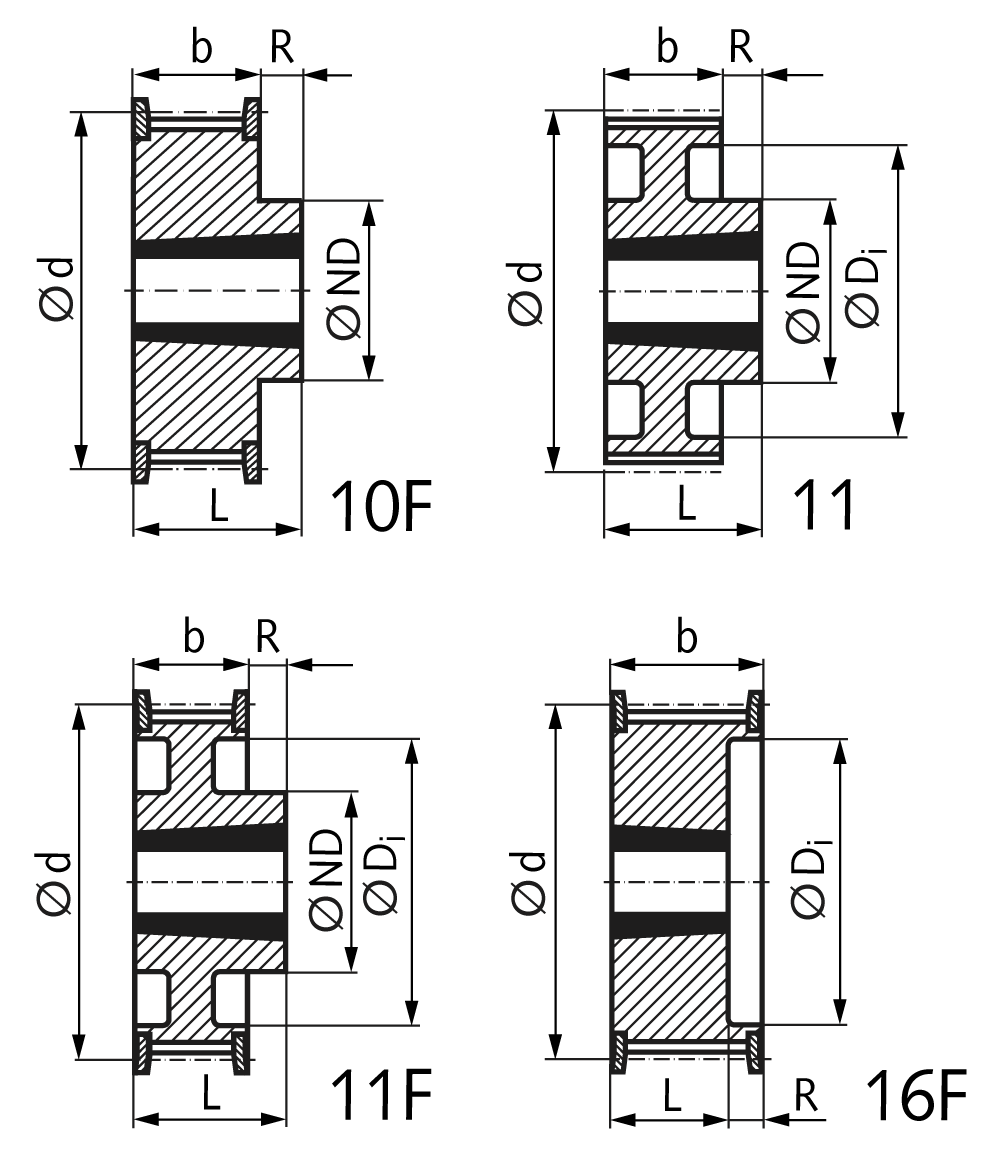

| Version | 10 F |
| Material | Steel |
| Profile | T10 (Taper) |
| Surface | Phosphated |
Description
Material: Steel, phosphated. These steel pulleys offer a much higher wear resistance than standard parts from aluminium. The ready-to-install taper version enables a quick mounting and a fatigue-resistant shaft-to-hub connection. In this youtube video we show the mounting and demounting of taper bushes: Video clip (3.5 Minutes)
