MÄDLERMÄDLER· Timing Belts and Pulleys

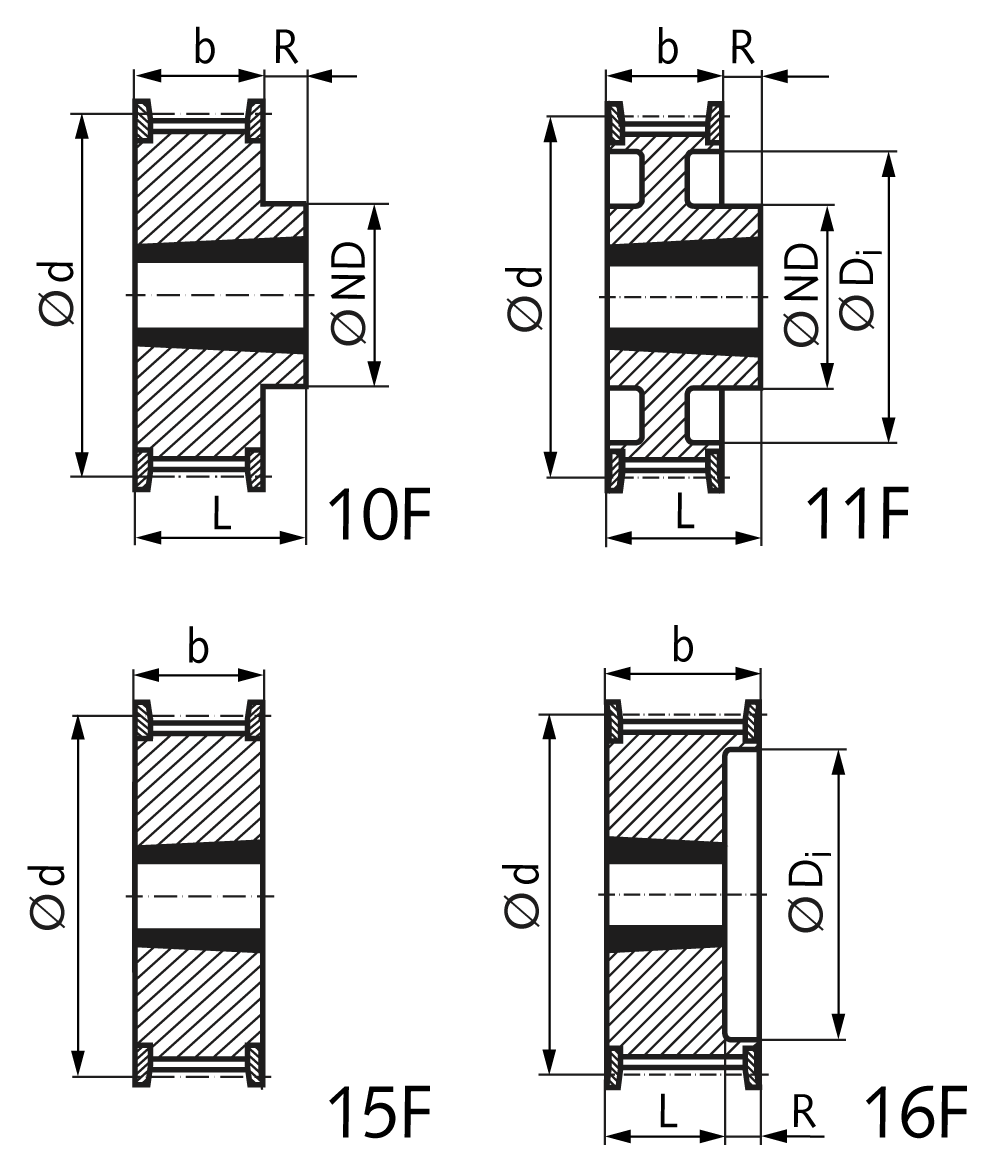

Timing belt pulley from steel T10 84 teeth belt width 32mm for taper bush 2517
Manufacturer part no. 16477484
$251.90≈ 218.76 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €218.76 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €46.75 |
| Total delivered | €280.51 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 8.973 kg |
Other characteristics
| Belt width | 32 mm |
| Bore max. | 65 mm |
| Bore min. | 15 mm |
| Clamp bushing type | 2 517 |
| No of teeth | 84 |
| Outer diameter pulley | 265.52 mm |
| Pitch circle diameter | 267.38 mm |
| Version | 11 |
| Material | Steel |
| Profile | T10 (Taper) |
| Surface | Phosphated |
Description
Material: Steel, phosphated. These steel pulleys offer a much higher wear resistance than standard parts from aluminium. The ready-to-install taper version enables a quick mounting and a fatigue-resistant shaft-to-hub connection. In this youtube video we show the mounting and demounting of taper bushes: Video clip (3.5 Minutes)
