MÄDLERMÄDLER· Timing Belts and Pulleys

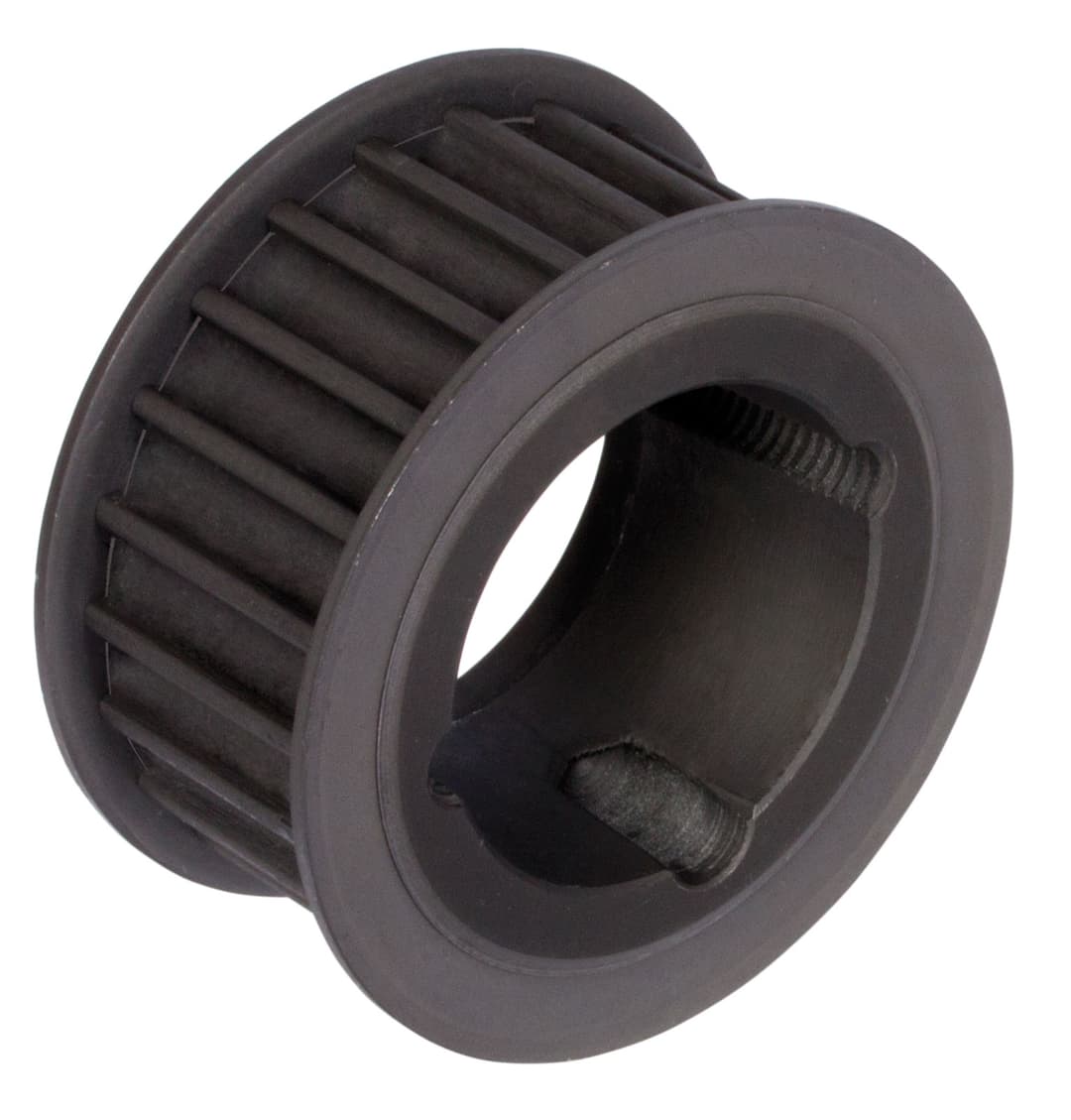

Timing belt pulley steel AT5 112 teeth belt width 16mm for taper bush 2012
Manufacturer part no. 16677394
$119.28≈ 103.59 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €103.59 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €23.72 |
| Total delivered | €142.31 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 4.1 kg |
Other characteristics
| Belt width | 16 mm |
| Bore max. | 50 mm |
| Bore min. | 12 mm |
| Clamp bushing type | 2 012 |
| No of teeth | 112 |
| Outer diameter pulley | 177.03 mm |
| Pitch circle diameter | 178.25 mm |

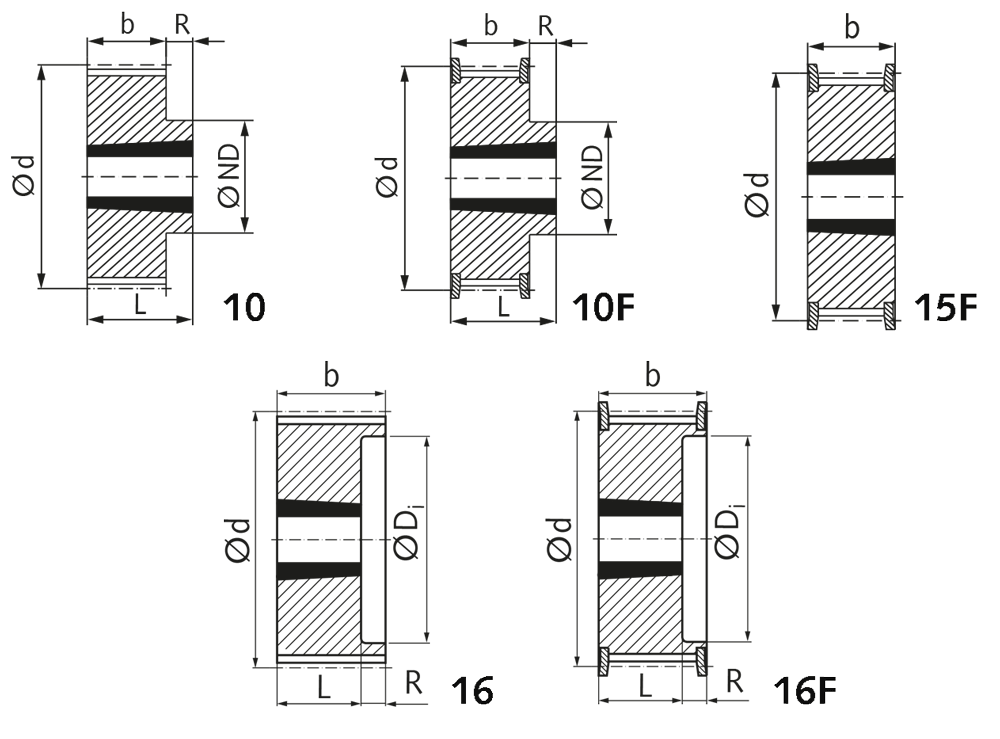

| Version | 10 |
| Material | Steel |
| Profile | AT5 (Taper) |
| Surface | Phosphated |
Description
Material: Steel, phosphated. These steel pulleys offer a much higher wear resistance than standard parts from aluminium. The ready-to-install taper version enables a quick mounting and a fatigue-resistant shaft-to-hub connection. In this youtube video we show the mounting and demounting of taper bushes: Video clip (3.5 Minutes)
