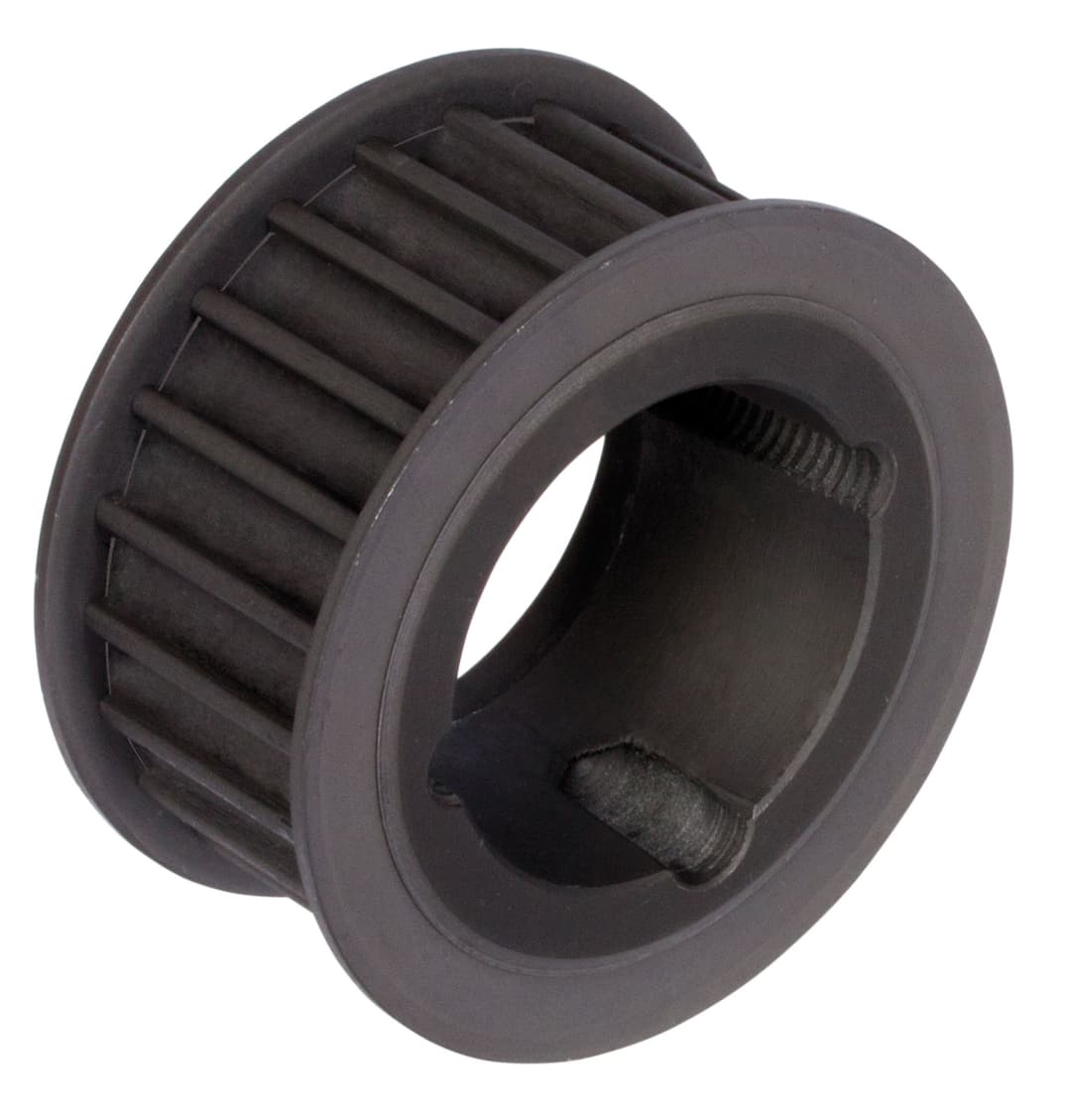

Timing belt pulley from steel AT10 48 teeth belt width 16mm for taper bush 2012
Manufacturer part no. 16877248
Manufacturer part no. 16877248
Listed by MÄDLER at €67.68. Delivered to France, including shipping, VAT and any customs duty, it comes to about €99.22. Prices last checked on 2026-10-04.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €67.68 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €16.54 |
| Total delivered | €99.22 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
| Weight | 2.38 kg |
| Belt width | 16 mm |
| Bore max. | 50 mm |
| Bore min. | 12 mm |
| Clamp bushing type | 2 012 |
| No of teeth | 48 |
| Outer diameter of flanges | 158 mm |
| Outer diameter pulley | 150.97 mm |
| Pitch circle diameter | 152.79 mm |

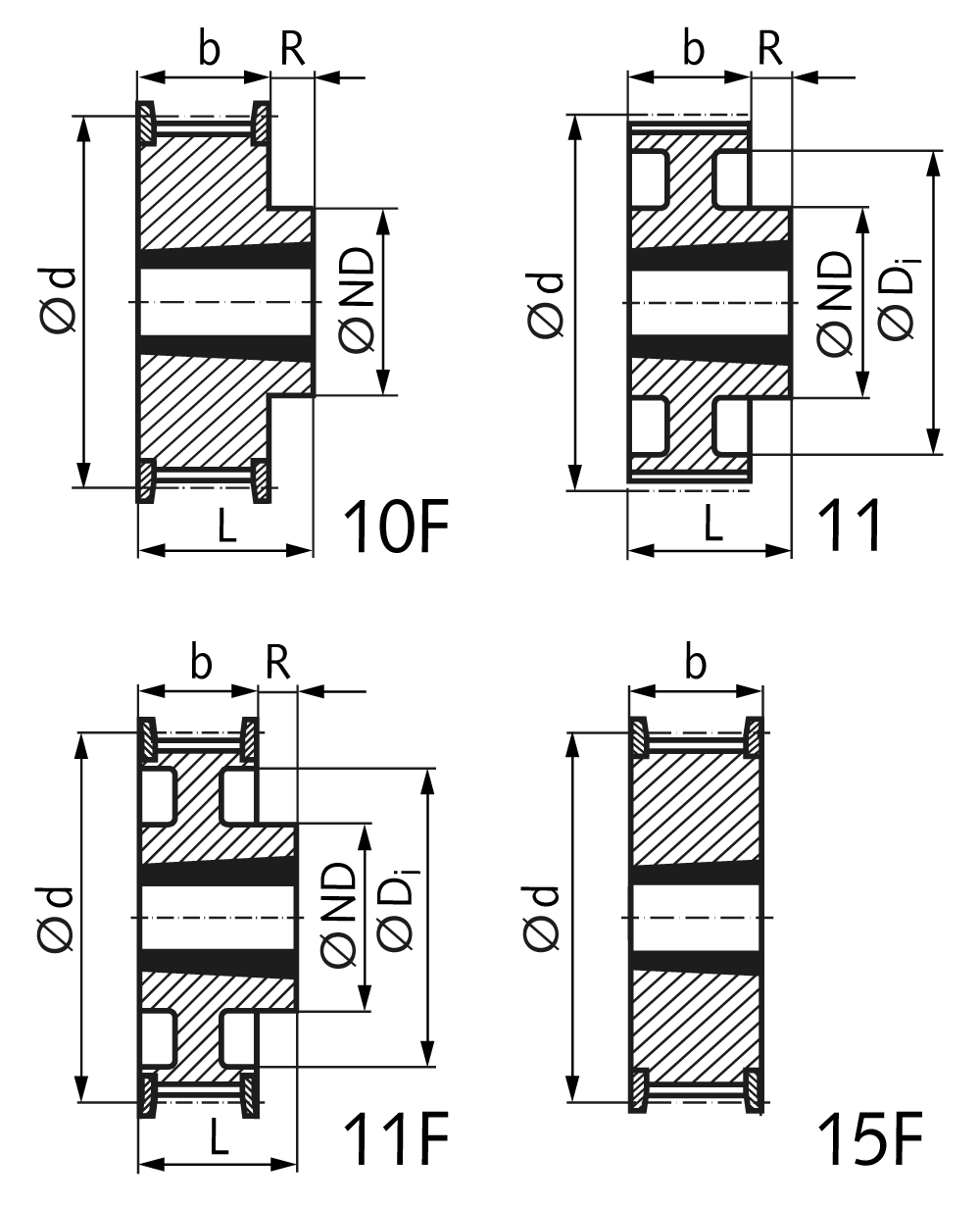

| Version | 10 F |
| Material | Steel |
| Profile | AT10 (Taper) |
| Surface | Phosphated |
Material: Steel, phosphated. These steel pulleys offer a much higher wear resistance than standard parts from aluminium. The ready-to-install taper version enables a quick mounting and a fatigue-resistant shaft-to-hub connection. In this youtube video we show the mounting and demounting of taper bushes: Video clip (3.5 Minutes)
