Timing belt pulley HTD 8M material steel 26 teeth for belt width 20mm
Manufacturer part no. 17411300
$28.29≈ 24.57 €
In stock — 21 unitslead time 14 d
Estimated landed cost
| Item | €24.57 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.91 |
| Total delivered | €47.48 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 753 g |
Other characteristics
| Belt width | 20 mm |
| Bore | 30 mm |
| Hub diameter | 48 mm |
| No of teeth | 26 |
| Outer diameter of flanges | 71 mm |
| Outer diameter pulley | 64.84 mm |
| Pilot hole | 12 mm |
| Pitch circle diameter | 66.21 mm |
| Total length | 38 mm |

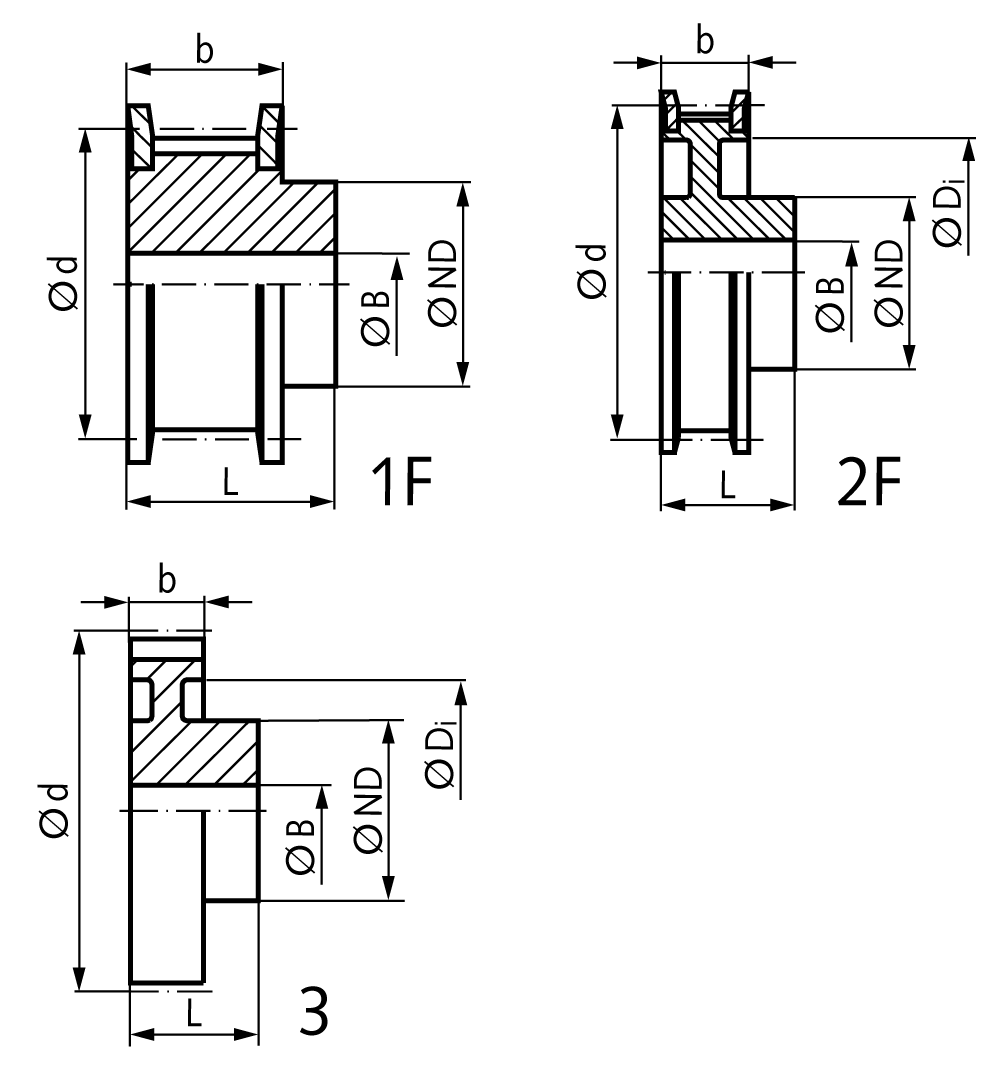

| Version | 1 F |
| Material | Steel |
| Profile | HTD 8M |
| Surface | Phosphated |
Description
Material: Up to a teeth number of 72 phosphated steel, from a teeth number of 80 phosphated grey cast iron GG25. The functionability of a belt drive is largely influenced by the quality of the used pulley. HTD pulleys are precision components, manufactured pitch-true with special cutters. This leads to a precise meshing of teeth.
